Product Details:
|
| Product Name: | Insulation Weld Pins | Application: | Fasten Insulation Material On Metal Surface |
|---|---|---|---|
| Material: | Copper Coated Steel, Galvanized Steel, Stainless Steel, Aluminium | Diameter: | 1-5mm |
| Package: | Carton Box | Length: | 10-475mm |
| Customization: | Support | Small Orders: | Support |
| Door To Door Service: | Support | Samples: | Support |
| High Light: | 3x230mm Insulation Weld Pins,316L Insulation Weld Pins,Stainless Steel stud welding pins |
||
Insulation Weld Pins are used for attaching insulation to various metals, with the use of a CD welder.
After the pin is welded in place, the insulation is impaled on the pin and secured with
a self-locking washer (sold separately).
|
Item |
3x230mm Insulation Weld Pins Stainless Steel 316L Material |
|
Material |
Stainless Steel 316L |
|
Length |
230 (length could be 10-475mm) |
|
Diameter |
3mm (diameter could be 1-5mm) |
|
Features |
Standard weld points, easy welding |
|
Supply capability |
10000 Pcs/hour |
|
Remark |
Technical parameters are available upon request |
|
Photos |
|
Insulation weld pins are commonly used to attach insulation to ducts, ovens, boilers and hot/cold equipment.
The pins are welded in place, the insulation impaled over the pin and then self locking washers
are installed over the pin to secure the insulation.
Materials: Low carbon steel (copper plated), stainless steel and aluminum are standard.
Other materials are available upon request. Material is annealed as required.
Plating: Galvanized Weld Pins and other coatings are available.
Self Locking Washers: 22mm, 25mm, 30mm, 32mm, 38mm, 40mm, 50mm, 60mm, 63.5mm.
| Item | Material | Diameter | Length |
| Capacitor Discharge CD Insulation Pins | Copper Coated Steel | 1mm - 5mm | 10mm - 475mm |
| Capacitor Discharge CD Insulation Pins | Galvanized Steel | 1mm - 5mm | 10mm - 475mm |
| Capacitor Discharge CD Insulation Pins | Stainless Steel | 1mm - 5mm | 10mm - 475mm |
| Capacitor Discharge CD Insulation Pins | Aluminum | 1mm - 5mm | 10mm - 475mm |
Step 1. Stud weld the weld pins in to place
Step 2. Hang the insulation on the weld pins
Step 3. Press washers on the weld pins to secure the insulation
Step 4. Either clip off the weld pins at washer or bend the weld pins over washer
|

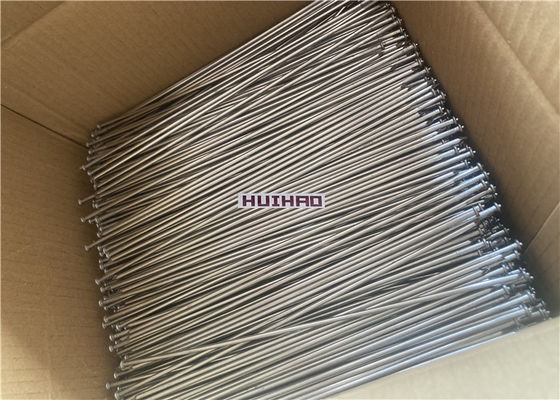

1. 500pcs, 800pcs, 1000 pcs per box (according the pin length ), 2. 6 boxes in one carton, 3. then in one pallet 4. the package can be according your request |
 |
