Product Details:
|
| Product Name: | Capacitors Discharge CD Insulation Pins | Application: | Fasten Insulation Material On Metal Surface |
|---|---|---|---|
| Material: | Copper Coated Steel, Galvanized Steel, Stainless Steel, Aluminium | Diameter: | 1-5mm |
| Package: | Carton Box | Length: | 10-475mm |
| Customization: | Support | Small Orders: | Support |
| Door To Door Service: | Support | Samples: | Support |
| High Light: | 3x230mm Capacitors Discharge CD Insulation Pins,316L Capacitors Discharge CD Insulation Pins,Stainless Steel capacitor discharge weld pins |
||

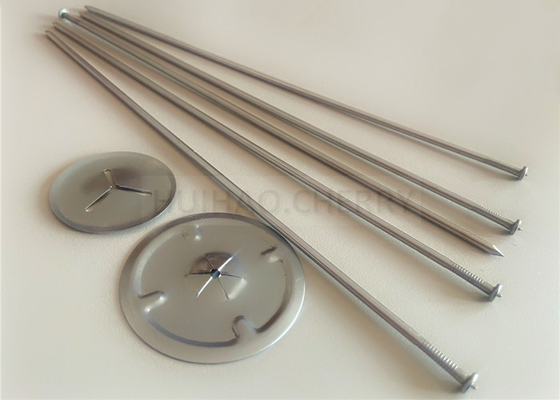

Manufactured with a standard Capacitor Discharge weld tip and flange, the
Capacitors Discharge CD Insulation Pins is popularly used as an insulation fastener, in
combination with self locking washers (or “speed clips”) to retain insulating material.
The unique capacitor discharge weld tip and CD weld equipment for stud welding make this
an economic and cost-saving metal fastener when stud welded in place.
|
Item |
Stainless Steel 316L Capacitor Discharge CD Insulation Pins 3x230mm |
|
Material |
Stainless Steel 316L |
|
Length |
230 (length could be 10-475mm) |
|
Diameter |
3mm (diameter could be 1-5mm) |
|
Features |
Standard weld points, easy welding |
|
Supply capability |
10000 Pcs/hour |
|
Remark |
Technical parameters are available upon request |
|

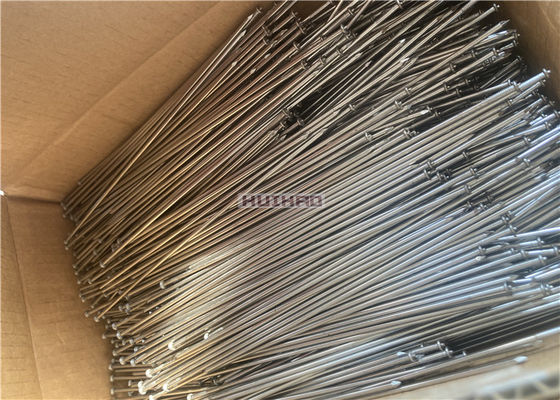

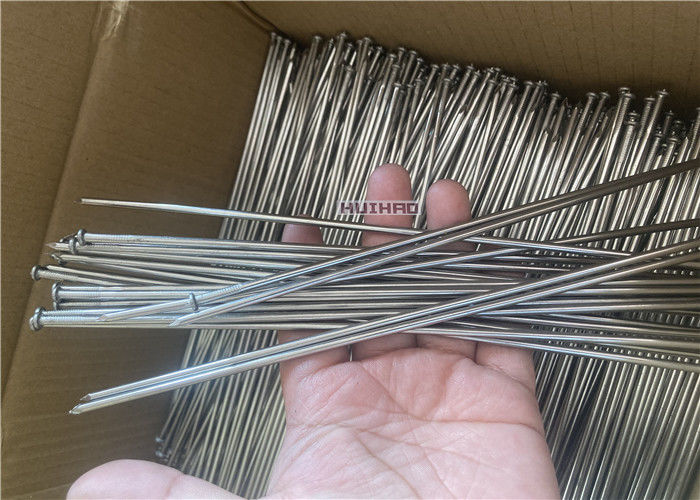

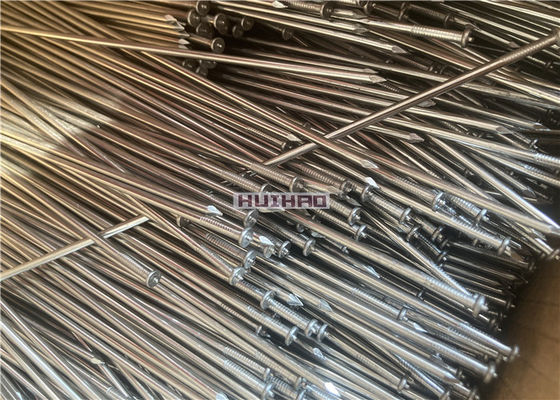

Photos |
|
The Capacitors Discharge CD Insulation Pins is a Mild (Low Carbon) Steel, Stainless Steel
or Aluminum weld pin that is ideal to apply with pin welding or stud welding equipment.
The diameter of the Capacitor Discharge CD Insulation Pins could be 1-5mm.
And the length of the Capacitor Discharge CD Insulation Pins could be 10-475mm.
| Item | Material | Diameter | Length |
| Capacitor Discharge CD Insulation Pins | Copper Coated Steel | 1mm - 5mm | 10mm - 475mm |
| Capacitor Discharge CD Insulation Pins | Galvanized Steel | 1mm - 5mm | 10mm - 475mm |
| Capacitor Discharge CD Insulation Pins | Stainless Steel | 1mm - 5mm | 10mm - 475mm |
| Capacitor Discharge CD Insulation Pins | Aluminum | 1mm - 5mm | 10mm - 475mm |
Step 1. Stud weld the weld pins in to place
Step 2. Hang the insulation on the weld pins
Step 3. Press washers on the weld pins to secure the insulation
Step 4. Either clip off the weld pins at washer or bend the weld pins over washer
|
1. 500pcs, 800pcs, 1000 pcs per box (according the pin length ), 2. 6 boxes in one carton, 3. then in one pallet 4. the package can be according your request |
 |
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the size, all could be customized.
3. How can I get samples?
1) Standard products: We provide free samples under 5 dollars.
2) Custom products: We charge 1-3 times the unit price (based on product specifications).
3) Shipping methods are DHL, FedEX, TNT, UPS, EMS or others. You need to pay for shipping.
4) Samples will be sent as soon as payment is received.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) After you order, we will reconfirm all the details again.
3) We strictly implement the "IATF 16949 Quality Management System" standard in production.
4) We will send you videos and pictures during the production and shipment process.
5. Advantage Of Huihao Hardware Mesh Product Limited.
Cooperate with us, we can ensure:
1: Competitive price: we sale what we manufacture.
2: On-time delivery: we have the auto-production line to ensure the on-time delivery.
3: Excellent quality: we have rich experience, our products are in line with international standard.
4: Good after-sale service: we offer good after-sale service for each order.
