Product Details:
|
| Name: | Perforated Base Marine Pins | Material: | MIld Steel In Common |
|---|---|---|---|
| Base Size: | 40mm In Round Shape | Base Thickness: | 0.70mm |
| Pin Dia: | 3.0mm In Common | Pin Length: | 75mm Or Other Lenght As Requesst |
| Self Locking Washer: | 30 Mm As Standard Cap | Surface Treatment: | Zinc Coated |
| High Light: | m3*75 mm self adhesive insulation pins,galvanized self adhesive insulation pins,marine self stick insulation pins |
||
| Name | Marine insulation fixing pins | |||
| Material | Surface treatment | Base size | Pin diameter | Pin length |
| Mild steel | Galvanized , copper plated | 0.7mm T*40mm perfoated | 2.7mm,3.0mm | 30mm |
| Mild steel | Galvanized , copper plated | 0.7mm T*40mm perfoated | 2.7mm,3.0mm | 50mm |
| Mild steel | Galvanized , copper plated | 0.7mm T*40mm perforated | 2.7mm,3.0mm | 60mm |
| Mild steel | Galvanized , copper plated | 0.7mm T*40mm perfoated | 2.7mm,3.0mm | 75mm |
| Mild steel | Galvanized , copper plated | 0.7mm T*40mm perfoated | 2.7mm,3.0mm | 100mm |
| Note | Both the base size and pins size could be customized according to requireemnts. | |||

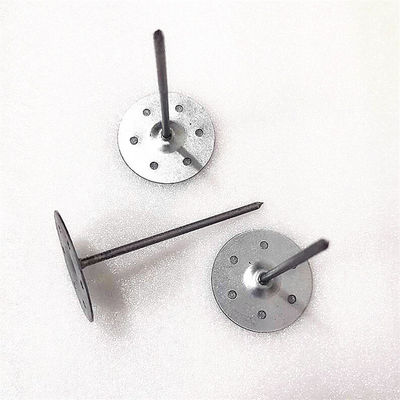

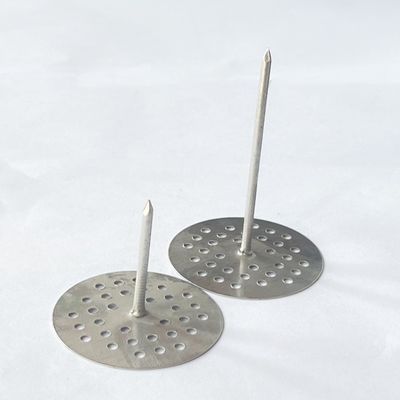

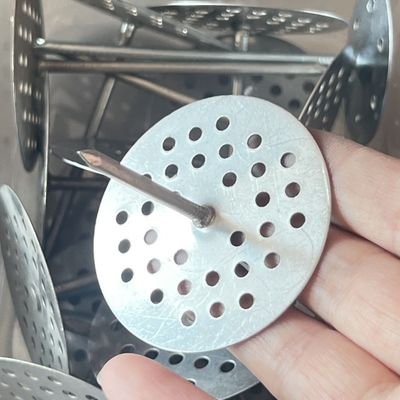

Photos of the Marine insulation fixing pins
The Marine insulation fixing pins is widely used on marine, boat . to fix the external wall.
Put the perforated disc /head of the nails on the boards with glue , waiting for some hours , then press the rock wool/extermal wall onto the nails.
Packing methods:500pcs per carton , then put then carton on the pallets. and also could be packed accordign to the customer's requirements.
Delivery methods: By express (TNT/UPS , DHL) for small order or sample , by Railway/Air/Sea for big order.
Related Products:
>>>Self-Adhesive Base Insulation Hangers
Self-Adhesive Hangers are designed to attach insulation to clean, dry, smooth, non-porous surfaces.
Material:Galvanized Steel (Standard),Available in Stainless Steel & Alum as special order
| pin diameter | base plate size | insulatiion pin length |
| 12ga ( 0.106 " ) | 2 " square w / tape | 1 " |
| 12ga ( 0.106 " ) | 2 " square w / tape | 1 - 5 / 8 " |
| 12ga ( 0.106 " ) | 2 " square w / tape | 2 " |
| 12ga ( 0.106 " ) | 2 " square w / tape | 2 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 3 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 4 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 5 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 6 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 8 " |
