Home ProductsSelf Adhesive Insulation Pins

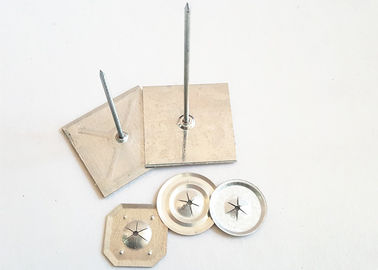

50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface

50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface

  • 50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface
  • 50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface
  • 50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface
  • 50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface
50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface
Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: ISO9001-2008
Model Number: Self Adhesive Insulation Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Self Adhesive Insulation Pins :paper carton + wood pallet
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 300,000 pcs per 15 days
Contact Now
Detailed Product Description
Material: Galvanized Steel Or Stainless Steel Or Aluminum Base Size: 50mm X 50mm
Base Thickness: 0.4mm Pin Dia: 12ga As Standard
Pin Length: 2/1" To 12" Self Locking Washer: Washer And Domn Cap
High Light:

insulation hangers

,

insulation pins and washers



50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface



Introduction To Self Adhesive Insulation Pins



Self-adhesive hangers are designed to fix efficiently insulation on smooth surfaces such as air ducts, attenuators, chambers

and enclosures. It consists of a pin, firmly mounted on a high quality self-adhesive base.



After the self-adhesive hangers are installed, the insulation is impaled over the spindle & secured with a self-locking washer.



Specification Of The Self Adhesive Insulation Pins



Material:Galvanized Steel (Standard),Available in Stainless Steel & Alum as special order



pin diameter base plate size insulatiion pin length
12ga ( 0.106 " ) 2 " square w / tape 1 "
12ga ( 0.106 " ) 2 " square w / tape 1 - 5 / 8 "
12ga ( 0.106 " ) 2 " square w / tape 2 "
12ga ( 0.106 " ) 2 " square w / tape 2 - 1 / 2"
12ga ( 0.106 " ) 2 " square w / tape 3 - 1 / 2"
12ga ( 0.106 " ) 2 " square w / tape 4 - 1 / 2"
12ga ( 0.106 " ) 2 " square w / tape 5 - 1 / 2"
12ga ( 0.106 " ) 2 " square w / tape 6 - 1 / 2"
12ga ( 0.106 " ) 2 " square w / tape 8 "
  • Standard Lengths are listed above
  • Other lengths are available as Special Order
  • Packaging: 1,000 pcs/ctn up to 2-1/2"
  • 500 pcs/ctn up to 8"
  • Hangers are available packed with, or without washers
  • Other diameters are available as Special Order



Other Details About The Self Adhesive Insulation Pins

  • Easy to use and handle
  • No tools or machines needed
  • Suitable for smooth and cleaned surfaces
  • Standard base is 50x50mm(2*2")
  • Adhesive foam backing of highest quality
  • Locking washers in various diameters
  • Protective caps on option

Self Adhesive Insulation Pins Application:



Best results are obtained when ambient temperature is above 40° F at the time of application.



Remove the release paper from the base plate and apply hanger to a suitable flat surface.



A firm straight, forward pressure should be used. Do not twist. Due to the quick-tack nature of the adhesive, it is very important

that the release paper not be removed until ready to apply the hanger.



Insulation may be applied immediately after properly securing the hanger.



Hangers should be stored at 75° F and 50% relative humidity. It is important that stock be rotated. Shelf life is estimated at 2

years if stored as recommended



Designed Self Adhesive Insulation Hangers / Annular Groove Insulation Hangers



WIPE SURFACE CLEAN.Anchor should be applied to a clean, dry non-porous surface

PEEL OFF RELEASE BACKING.NOTE: Double faced foam tape has a one-year active shelf life

STICK ANCHOR IN PLACE.Select location before contact with surface.Press firmly



Designed Self Adhesive Insulation Hangers / Annular Groove Insulation Hangers



APPLY FIRM PRESSURE.20 pounds of pressure should be applied all around the base of the anchor

ALLOW TO STAND 15-20 MINUTES.This will permit better adhesion to take place



Package of Self Adhesive Insulation Pins



1. insulation pin length less than 65mm, 1000pcs per carton, 64 cartons per pallets.

2. insulation pins length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.

3. insulation pins length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.

4. as your requirement

50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface 2



Related Products



Perforated Base Insulation Hangers



The perforated base insulation hangers are designed to fix efficiently insulation concrete and any other rough surfaces.
It consists of a pin, firmly mounted on a perforated base.

Material:Galvanized Steel (Standard),Available in Stainless Steel & Alum as special order



pin diameter base plate size insulation pin length
12ga ( 0.106 " ) 2 " square 1 "
12ga ( 0.106 " ) 2 " square 1 - 5 / 8"
12ga ( 0.106 " ) 2 " square 2 "
12ga ( 0.106 " ) 2 " square 2 - 1 / 2"
12ga ( 0.106 " ) 2 " square 3 - 1 / 2"
12ga ( 0.106 " ) 2 " square 4 - 1 / 2"
12ga ( 0.106 " ) 2 " square 5 - 1 / 2"
12ga ( 0.106 " ) 2 " square 6 - 1 / 2"
12ga ( 0.106 " ) 2 " square 8 "
12ga ( 0.106 " ) 2 " square 8 - 1 / 2"
12ga ( 0.106 " ) 2 " square 9 - 1 / 2"
12ga ( 0.106 " ) 2 " square 10 - 1 / 2"
12ga ( 0.106 " ) 2 " square 12 "
