Product Details:
|
| Name: | Self Adhesive Insulation Pin | Material: | Galvanized Steel Is In Common ,other To Be Request |
|---|---|---|---|
| Base Size: | 50mmx50mm ,2"x2" | Base Thickness: | 1mm |
| Pin Diameter: | 2.7mm Is In Common | Pin Length: | 38mm;43mm;53mm;63mm,115mm, 130mm, 150mm, 164mm, 180mm, 203mm |
| Washer: | Round ,square Type | Dome Cap Washer: | Galvanized Steel,stainless Steel ,PE |
| High Light: | 12 Ga Self Adhesive Insulation pins,Galvanized Steel Self Adhesive Insulation pins,Self Adhesive Insulation Pins 1-1/4 In |
||

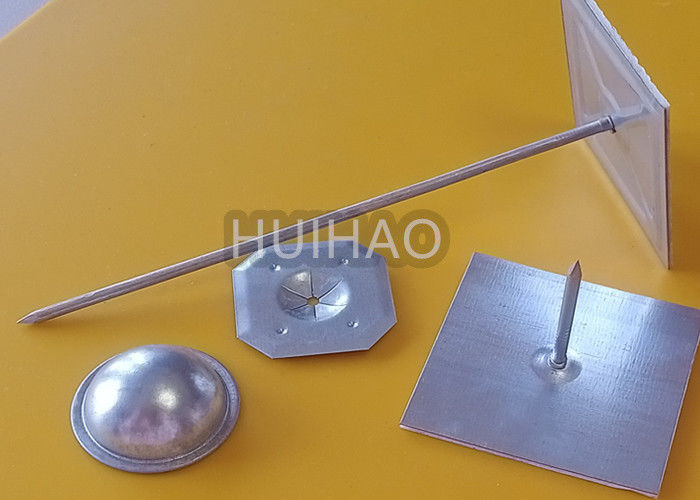

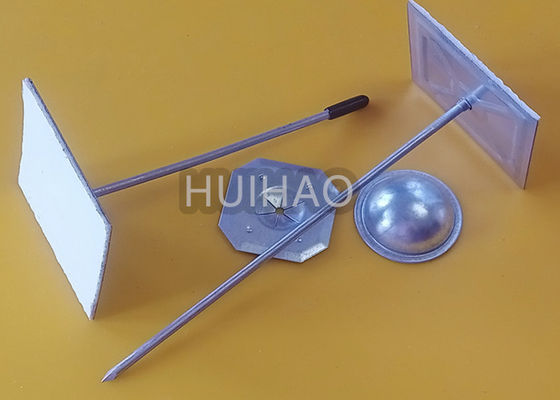

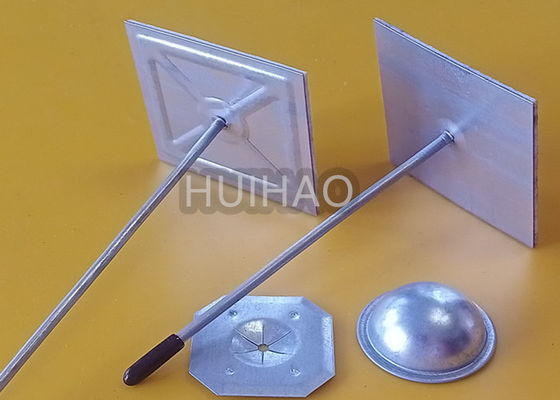

Self adhesive Insulation pins is also called self stick pins ,are used to fasten insulation material to walls
and ceilings ,it is rivets by a metal base and pin ,each metal base has a foam adhesive covered with a
release paper ,Self stick pins are used to fasten insulation materials to sheet metal quickly and easily ,
they works best on new or clean sheet metal ,once the insulation material is pierced onto the pin ,a
locking washer or a dome cap can be installed to hold the insulation material
Pin material -mild steel :must be annealed treatment ,easy for bend ;Zinc coated/copper
plated finish for anti-rust
-aluminum material
-stainless steel 304/316/316L
Base material :Glavanized steel ,stainless steel 304/316/316L with double side tapes
Washer material :Galvanized steel ,stainless steel 304/316/316L
Dome cap washer Material :aluminum+stainless steel ,stainless steel ,galvanized steel ,PE+metal
Application :recommendation for 1 m2 insulation :walls-6pins,ceiling=8pins
| Spefication of self adhesive insulation pins | ||
| pin diameter | tape base | pin length |
| 12 ga (.106)/ 3mm | 50mm Square | 1 |
| 12 ga (.106)/ 3mm | 50mmSquare | 1-5/8 |
| 12 ga (.106)/ 3mm | 50mm Square | 2-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 3-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 4-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 5-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 6-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 8" |
| 12 ga (.106)/ 3mm | 50mm Square | 8-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 9-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 10-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 12" |
self adhesive insulation pin are used for fixing insulation materials on vertical application surfaces.
Self-adhesive standard insulation pins can be used only on straight, smooth, clean and dry surfaces.
Adhesive Surface must not be fingered. Insulation pin have a sticker backing to make placing easier.
They also have a unique Easy-Peel adhesive backing design so that there isn't any fumbling with the
release paper. self adhesive insulation pin are widely used for metal buildings, concrete foundations
- even to the undersideof wooden roofs.
|
