Product Details:
|
| Product Name: | Cupped Head Insulation Pins | Material: | Carbon Steel ,stainless Steel ,copper |
|---|---|---|---|
| Head Size: | 30mm ,25mm | Pin Diameter: | 1.8mm,2.0mm,2.7mm,3.0mm,3.4mm |
| Surface Treatment: | Copper Plated Or Galvanized | Package: | Carton Or Pail |
| Service: | Door To Door Service | Sample: | In Stock |
| High Light: | 1-1/2 inch cuphead weld pins,carbon steel cuphead weld pins |
||

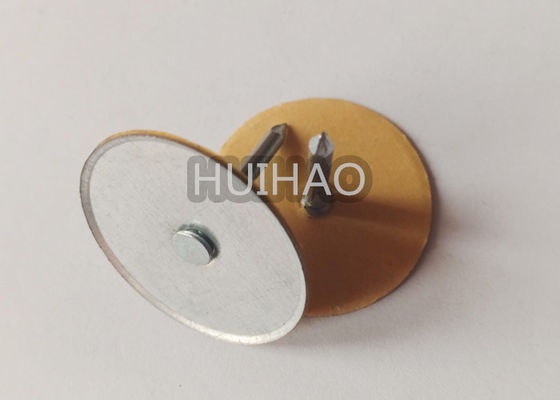

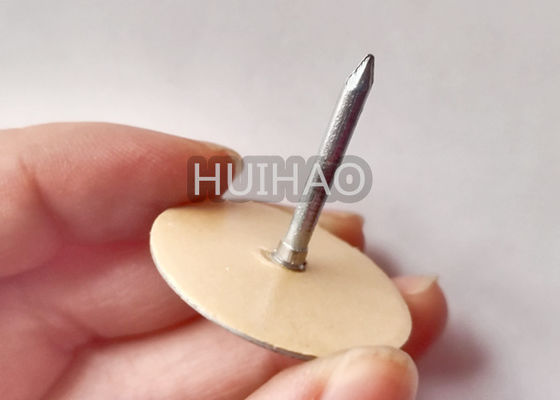

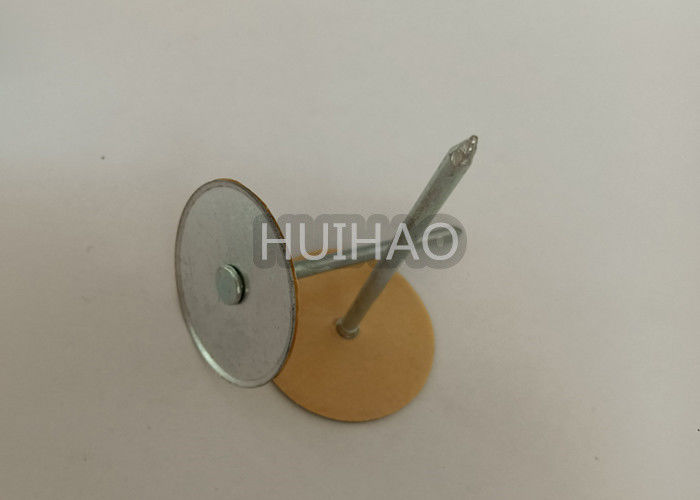

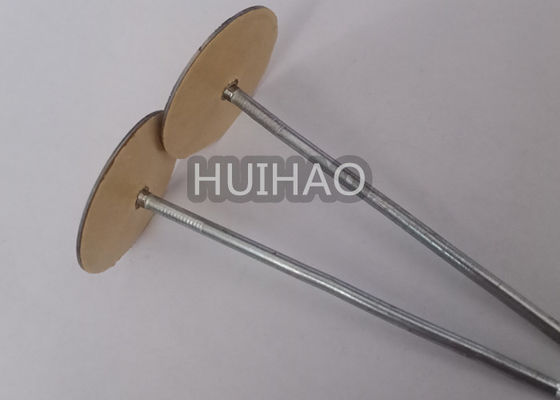

Product name :Cupped head insulation pins
Material:galvanized steel
Pin diameter:2.7mm
Pin length :1"(25mm),1-1/2"(38mm), 2"(50mm),70mm,100mm,110mm ect
Head size:30mm ,25mm
Annealing: all steel pins are fully annealed unless otherwise specified.
Washer: Low carbon steel & zinc plating.
Cupped Head Insulation Pins simplify the permanent installation of "Duct Liner" or other insulation materials
to duct work or to other heating, ventilating or air conditioning sheet metal configurations and housings.
A fabricated part made up of a weld pin and a staked on retaining washer. Variations of material are available.
This product is usually applied with a capacitor discharge stud welder. Used for securing insulation. Also used
as a hook-less lacing anchor to secure insulation inside fabricated blankets.
| base size | base material | pin diameter | pin length | pin material | finished |
| 20MM | mild steel, stainless steel, copper | 2.7MM,3MM, 3.4MM | 10MM, 25MM, 38MM | mild steel, stainless steel, copper | zinc/ copper plating |
| 25mm | mild steel, stainless steel, copper | 3mm | 10mm-65mm | mild steel, stainless steel, copper | zinc/ copper plating |
| 30mm | mild steel, stainless steel, copper | 3.4mm | 10mm-65mm | mild steel, stainless steel, copper | zinc/ copper plating |
| custom | custom | support custom | support custom |
|
|
Head diameter:30mm |
|
|
Head diameter:30mm |
Recommended assembly method:
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength
of adherence is achieved after 24 hours
| Product | Quantity | Box size | Weight |
| 12Gauge 3/8” cup head weld pins | 1000Pcs | 26×26×8CM | 2.85KG |
| 12Gauge 7/8” cup head weld pins | 1000Pcs | 26×26×11CM | 3.5KG |
| 12Gauge 1” cup head weld pins | 1000Pcs | 26×26×11CM | 3.7KG |
| 12Gauge 1-1/8” cup head weld pins | 1000Pcs | 26×26×13CM | 4.2KG |
| 12Gauge 1-7/8” cup head weld pins | 1000Pcs | 26×26×18CM | 4.85KG |
| 12Gauge 2” cup head weld pins | 1000Pcs | 26×26×18CM | 4.95KG |
| 12Gauge 3” cup head weld pins | 1000Pcs | 26×26×18CM | 7.05KG |
| 12Gauge 4” cup head weld pins | 1000Pcs | 26×26×32CM | 7.6KG |
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
Special design can contact us make new mold as your pic or drawing pic !
