Product Details:
|
| Product Name: | Weld Cup Head Pins | Material: | Mild Steel ,stainless Steel |
|---|---|---|---|
| Head Diameter: | 30mm,25mm,20mm | Pin Diameter: | 2.7mm,3.0mm,3.4mm |
| Pin Length: | 15mm-250mm | Sample: | Freely |
| OEM/ODM: | Support | Factory: | Yes |
| High Light: | 1-3/16" cuphead weld pins,oem cuphead weld pins,1-3/16" capacitor discharge weld pins |
||

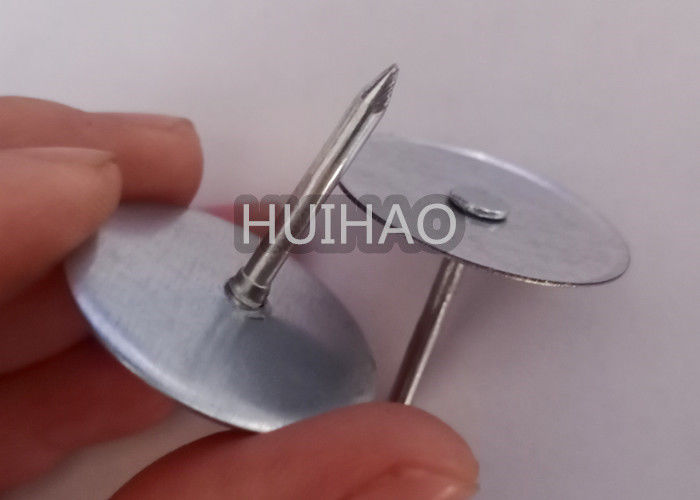

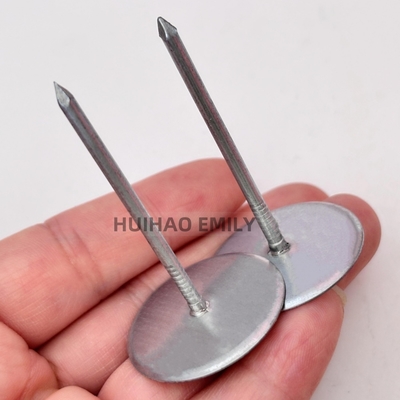

A quilting pin is simply a stainless steel cupped head pin. Cupped Head Insulation Pins simplify the
permanent installation of "Duct Liner" or other insulation materials by securing this insulation to duct
work or to other heating, ventilating or air conditioning sheet metal configurations and housings.
They are made up of a weld pin and a staked on retaining washer. This product is usually applied
with a capacitor discharge stud welder. It can also be used as a hookless lacing anchor to secure
insulation inside fabricated blankets.
Cup Heads are widely accepted as labor saving fasteners in the thermal and acoustical insulation
markets for use in industrial and commercial applications.
| Round base | Pin diameter | Pin length | Base type |
| 30mm | 14ga,12ga | 38mm-250mm |

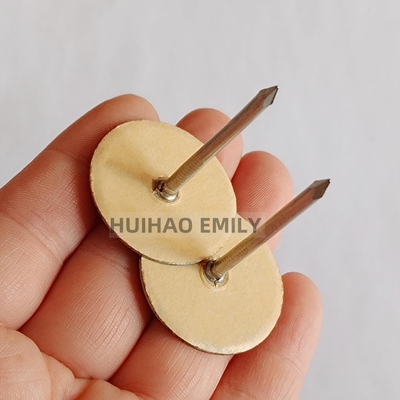

Base with paper base without paper |
| 35mm | 12ga 10ga | 25mm,38mm | |
| 25mm | 12ga,10ga,3mm | 25mm,38mm | |
| Material | Mild steel | Stainless steel | Aluminum alloy |

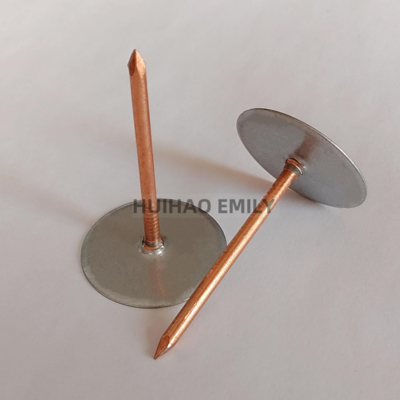

| Surface treatment | Zinc/copper coated | Cleaning | no |

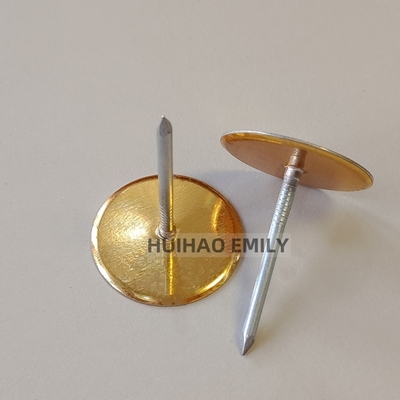

| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
|
|
Package : usually the package is 800/1000/1500 /2000/3000/5000 pcs in carton on pallet
800/1000/15000/2000 in a drum on the pallet
Delivery :for big you choose by sea
for small order or agercy order ,you can choose express by DHL,Fedex ,UPS ,ect
we can also supply door to door service by sea ,by air
package service: Carton, Fumigation-Free Wooden Box, Fumigation-Free Tray, Warning Tape, Color
Label, Custom Logo
delivery service:by sea, by air and door to door service
stock service: we have common size of Insulation Fastener Cup Head Pins with Mechanized packing
product in stock.
sample services: supply free sample for Insulation Fastener Cup Head Pins. special size of Mechanized
packing , need customer paid the mould cost.
quality service: iso 9001-2008, material test cerfication, factort test report and third party test report from
SGS and BV.
We are willing to rush orders and offer you competitive prices for our products and services. You won't
regret choosing us as your supplier for Insulation Fastener Cup Head Pins, studs, and any other supplies
you need
