3" Galvanized Steel Adhesive Base Insulation Pins For Fasten Insulation Materials

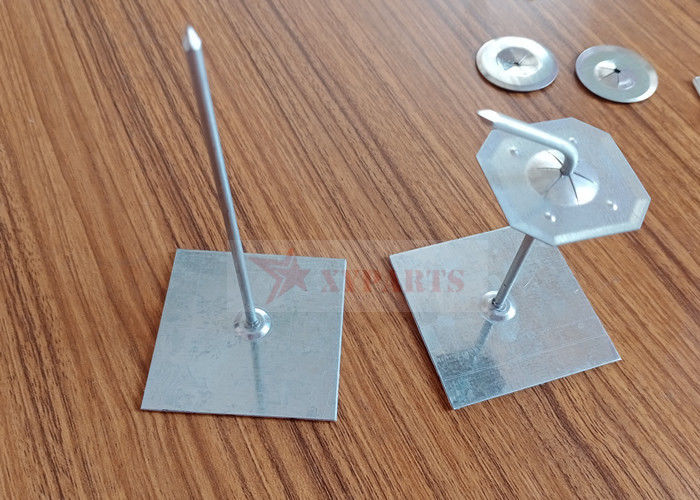

Large Image : 3" Galvanized Steel Adhesive Base Insulation Pins For Fasten Insulation Materials

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO9001-2015
Model Number:	Adhesive Base Insulation Pins

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs
Packaging Details:	500pcs per carton, 48 cartons per pallet,
Delivery Time:	10 work days
Payment Terms:	L/C, T/T,
Supply Ability:	10000 pcs oer hour

Contact Now

3" Galvanized Steel Adhesive Base Insulation Pins For Fasten Insulation Materials

Description

Name:	Adhesive Base Insulation Pins For Fasten Insulation Materials	Brand:	Huihao Custom
Material:	Galvanized Steel Or Stainless Steel	Base Size:	50x50mm
Product Customization:	Support	Pin Diameter:	2.7mm As Standard
Samples:	Support	Pin Length:	38mm-230mm In Standard
High Light:	3" self stick insulation pins , galvanized self stick insulation pins , 3" insulation pins self adhesive

3" Galvanized Steel Adhesive Base Insulation Pins For Fasten Insulation Materials

Quick Details Of The Adhesive Base Insulation Pins:

Adhesive Base Insulation Pins is a kind of insulation fasteners used for fasten the
insulation materials, such as duct insulation.

Just peel the tape paper and press it on to the surface where need to install Insulation.

Once the insulation material is pierced onto the pins, a self locking washer or a dome cap
washer is needed to hold the insulation material in place.

Item: Adhesive Base Insulation Pins
Common Length	1 1/4”, 1 1/2", 1 5/8", 2", 2 1/2", 3", 3 1/2", 4 1/2"
Material	Pin	Stainless Steel, Aluminum, Galvanized Steel
	Base	High Hardness Galvanized Steel, Stainless steel
Surface Finish	Polish, Galvanized coating
Features	bases are tight with pins
	pins are soft, easy bent over
	double faced adhesive has good stickness
Package	Packing can be customized as per requirements, Current packing information available upon request.
Supply Capability	10000 pcs/hour
Application	1. Self adhesive insulation pins can only be stuck on clean, dry and smooth surface. 2. Cleaning the surface is recommended, remove any duct, loose paint, oil etc. 3. Peel off the backing paper. 4. Place the self adhesive insulation pins in the required position. 5. Press the base against the cleaning surface. 6. Impale the insulation over the point of the self adhesive insulation pins. 7. Secure the insulation with the self locking washers. 8. Bend or remove excess pins

Self Locking Washers Used For The Adhesive Base Insulation Pins:

Self Locking Washers Used To Fasten The Adhesive Base Insulation Pins
type	size	material	center hole
round	25mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	32mmx32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	29mmx31mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	38mmx38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	50mmx50mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	65mmx65mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	40mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	50mm	galvanized steel, stainless steel, aluminum	2mm-5mm

Features Of The Adhesive Base Insulation Pins:

* Application specific design

* Corrosion resistance

* Efficiency

* Eco friendly product

* Weather proof

* Long serving life

* Sturdy constructio

Advantages Of The Adhesive Base Insulation Pins:

1. The pins are riveted on the base of the self adhesive insulation pins, it's very strong.

2. The self adhesive tape on the base botom of the self adhesive insulation pins is very sticky.

3. The self locking washers are very hard, it could lock the self adhesive insulation pins very firmly

Package Details Of The Adhesive Base Insulation Pins:

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM	SUPPORT CUSTOM

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners
2. We do copper plating, zinc coated and phosphating pretreatment for the raw material
3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4. We use the automatic riveting machine to install .
5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
6. Short delivery time because of our reasonable production flow management.
