Galvanized Steel Self Stick Pins For Fixing Pre-Formed Insulation Material To Metal Duct

Large Image : Galvanized Steel Self Stick Pins For Fixing Pre-Formed Insulation Material To Metal Duct

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO9001-2015
Model Number:	self stick pins

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs
Packaging Details:	500pcs per carton, 48 cartons per pallet,
Delivery Time:	10 work days
Payment Terms:	L/C, T/T,
Supply Ability:	10000 pcs oer hour

Contact Now

Galvanized Steel Self Stick Pins For Fixing Pre-Formed Insulation Material To Metal Duct

Description

Name:	Self Stick Pins Used For Fixing Pre-formed Insulation Material To Metal Duct	Brand:	Huihao Custom
Material:	Galvanized Steel Or Stainless Steel	Base Size:	50x50mm
Product Customization:	Support	Pin Diameter:	2.7mm As Standard
Samples:	Support	Pin Length:	38mm-230mm In Standard
High Light:	self stick insulation pins galvanized , 50x50mm self stick insulation pins , insulation pins self adhesive galvanized

Galvanized Steel Self Stick Pins Used For Fixing Pre-formed Insulation Material To Metal Duct

Quick Details Of The Self Stick Pins Used For Fixing Pre-formed Insulation Materials:

The self stick pins are used to fix the pre-formed insulation to metal duct and can fix fiberglass,

mineral wool, polystyrene, rigid & flexible PU foam, PIR phenolic foam, cork and similar materials.

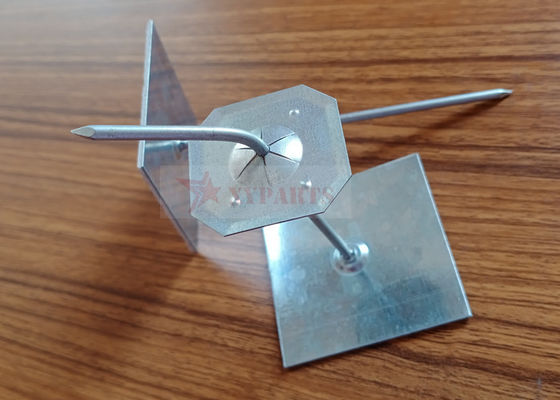

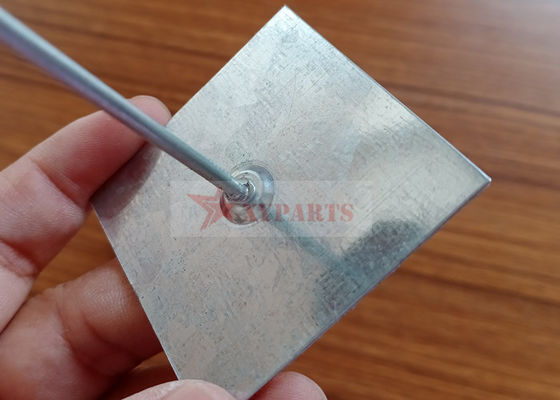

The self stick pins have a fabricated 2" x 2" metal base with self stick adhesive on it and a pin.

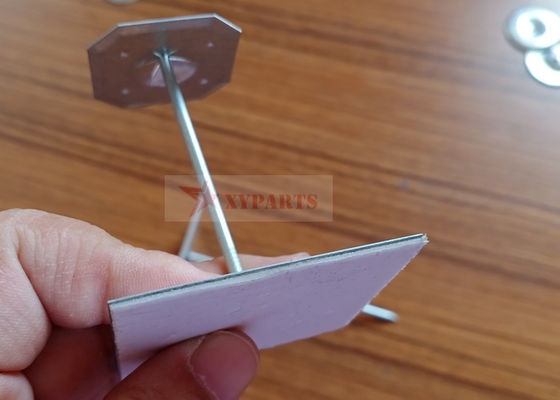

The self stick pins have a peel release paper from the metal base and firmly press the base

to the duct or wall surface. Once the insulation material is pierced onto the pins, a self locking

washer or a dome cap washer is needed to hold the insulation material in place.

The following are some popular sizes in the market, special size also could be customized.
Pin diameter	Base plate size	Insulatiion pin length
12ga, 3mm, 10ga	2 " square w / tape	1 "
12ga, 3mm, 10ga	2 " square w / tape	1 - 5 / 8 "
12ga, 3mm, 10ga	2 " square w / tape	2 "
12ga, 3mm, 10ga	2 " square w / tape	2 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	3 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	4 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	5 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	6 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	8 "
Advantages Of Our Self Stick Pins Used For Fixing Pre-formed Insulation Material To Metal Duct: 1. The pins are riveted on the base of the self stick pins, it's very strong. 2. The self adhesive tape on the base botom of the self stick pins is very sticky. 3. The self locking washers are very hard, it could lock the self stick pins very firmly.

Self Locking Washers Used For The Self Stick Pins:

Self Locking Washers Used To Fasten The Self Stick Pins
type	size	material	center hole
round	25mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	32mmx32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	29mmx31mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	38mmx38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	50mmx50mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	65mmx65mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	40mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	50mm	galvanized steel, stainless steel, aluminum	2mm-5mm

Features Of The Self Stick Pins Used For Fixing Pre-formed Insulation Materials:

* Application specific design

* Corrosion resistance

* Efficiency

* Eco friendly product

* Weather proof

* Long serving life

* Sturdy constructio

Application Of The Self Stick Pins Used For Fixing Pre-formed Insulation Materials:

1. Self stick pins can only be stuck on clean, dry and smooth surface.

2. Cleaning the surface is recommended, remove any duct, loose paint, oil etc.
3. Peel off the backing paper.
4. Place the self stick pins in the required position.

5. Press the base against the cleaning surface.

6. Impale the insulation over the point of the self stick pins.

7. Secure the insulation with the self locking washers.

8. Bend or remove excess pins

Package Details Of Self Stick Pins Used For Fixing Pre-formed Insulation Materials:

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM	SUPPORT CUSTOM

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners
2. We do copper plating, zinc coated and phosphating pretreatment for the raw material
3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4. We use the automatic riveting machine to install .
5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
6. Short delivery time because of our reasonable production flow management.
