63.5mm Galvanized Steel Self Stick Insulation Pins To Install Foam Insulation Panels

Name: 63.5mm Galvanized Steel Self Stick Insulation Pins To Install Foam Insulation Panels
Brand: HUIHAO
SKU: Self Stick Insulation Pins
Rating: 5 (108 reviews)

All Products

Self Adhesive Insulation Pins
(115)

Insulation Anchor Pins
(133)

Metal Mesh Drapery
(99)

Architectural Wire Mesh
(105)

Tile Backer Board Washers
(48)

Fabric Laminated Glass
(50)

Metal Ring Mesh
(92)

Solar Panel Clips
(71)

Grip Strut Grating
(32)

Self Locking Washer
(111)

Expanded Metal Mesh
(40)

Metal Coil Drapery
(32)

Decorative Wire Mesh
(100)

Self Cleaning Screen Mesh
(89)

Stud Welding Pins
(162)

Johnson Wire Screen
(38)

Plastic Recycling Line
(37)

Ultra Fine Wire
(15)

Stainless Steel Wire Rope Mesh
(11)

Best Products

50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface

Certification

Customer Reviews

Great! Place next order in near future

—— Joe Paletta

Many thanks for your service and the coil mesh is so beautiful.

—— Mélissa Tovar

Recieved the insulation pins, Everything looks good.

—— Ivan

I'm Online Chat Now

63.5mm Galvanized Steel Self Stick Insulation Pins To Install Foam Insulation Panels

Large Image : 63.5mm Galvanized Steel Self Stick Insulation Pins To Install Foam Insulation Panels

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO9001-2015
Model Number:	Self Stick Insulation Pins

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs

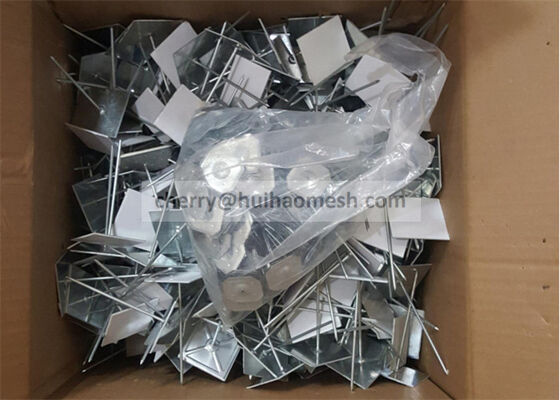

Packaging Details:	500pcs per carton, 48 cartons per pallet,
Delivery Time:	10 work days
Payment Terms:	L/C, T/T,
Supply Ability:	10000 pcs oer hour

Contact Now

63.5mm Galvanized Steel Self Stick Insulation Pins To Install Foam Insulation Panels

Description

Name:	Self Stick Insulation Pins To Install Foam Insulation Panels	Brand:	Huihao Custom
Material:	Galvanized Steel Or Stainless Steel	Base Size:	50x50mm
Product Customization:	Support	Pin Diameter:	2.7mm As Standard
Samples:	Support	Pin Length:	38mm-230mm In Standard
High Light:	63.5mm stick pin insulation , galvanized stick pin insulation , 63.5mm self stick insulation pins

63.5mm Galvanized Steel Self Stick Insulation Pins To Install Foam Insulation Panels

Specifications Of The Self Stick Insulation Pins:

1. Self stick insulation pins are easy to use and handle because it requires no tools or machines.

2. It's suitable for steel or other smooth surfaces which should be clean and dry, free of dust,

grease, oil or any other loose matter.

3. Simply remove the release paper backing, place on the surface and impale the insulation

over the pin.

4. The locking clip/washer is then pressed on to the pin to complete the final mechanical joint.

5. Bonding takes place immediately but full strength adherence is achieved after 24 hours.

material	base size	pin diameter	pin length	fixed parts
pin material: anneaded steel wire anneaded stainless steel wire aluminum wire base material: hardness steel stainless steel	base size: 50x50mm base thickness: 0.4mm+1mm base type: double adhesive liner: siliconized paper	2.7mm	38mm	self locking washer doom cap washer
		2.7mm	45mm
		2.7mm	55mm
		2.7mm	62mm
		2.7mm	90mm
		2.7mm,3.0mm	114mm
		2.7mm,3.0mm	120mm
		2.7mm,3.0mm	140mm
		2.7mm,3.0mm	160mm
		2.7mm,3.0mm	180mm
		2.7mm,3.0mm	203mm
		2.7mm,3.0mm	230mm

Self Locking Washers For The Self Stick Insulation Pins:

Self Locking Washers Used To Fasten Self Stick Insulation Pins
type	size	material	center hole
round	25mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	32mmx32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	29mmx31mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	38mmx38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	50mmx50mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	65mmx65mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	40mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	50mm	galvanized steel, stainless steel, aluminum	2mm-5mm

Application Of The Self Stick Insulation Pins:

1. Self stick insulation pins can only be stuck on clean, dry and smooth surface.
2. Remove any duct, loose paint, oil etc. Cleaning the surface is recommended.
3. Peel off the backing paper.
4. Place the self stick insulation pins in the required position.

5. Press the base against the cleaning surface.

6. Impale the insulation over the point of the self stick insulation pins.

7. Secure the insulation with the self locking washers

8. Bend or remove excess pins

63.5mm Galvanized Steel Self Stick Insulation Pins To Install Foam Insulation Panels 2

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners
2. We do copper plating, zinc coated and phosphating pretreatment for the raw material
3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4. We use the automatic riveting machine to install .
5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
6. Short delivery time because of our reasonable production flow management.
