Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool

Product Description Of The Self Adhesive Insulation Hangers:

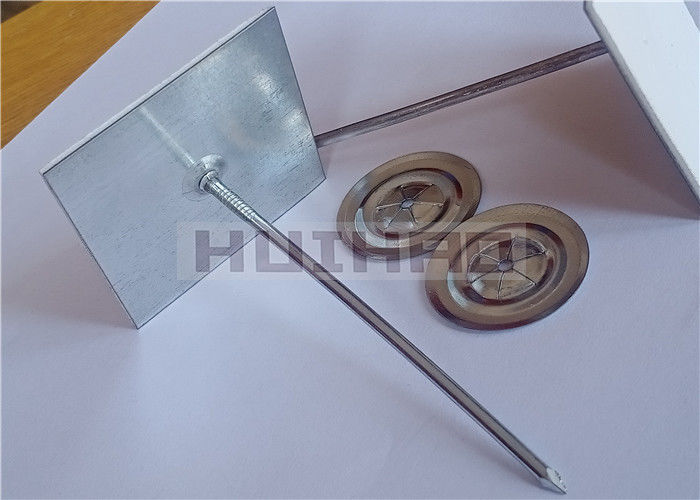

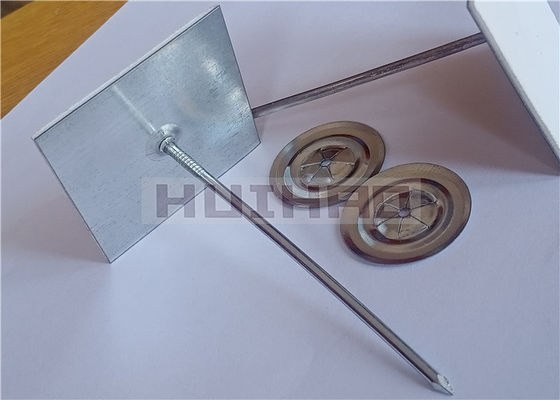

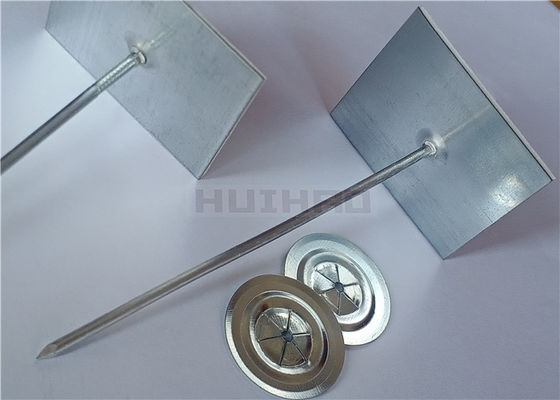

Self Adhesive Insulation Hangers are designed to fix insulation materials on smooth surfaces

such as air ducts, attenuators, chambers and enclosures.

Self Adhesive Insulation Hangers is consists of a pin, firmly riveted on a high quality

self-adhesive base.

Material	Galvanized Steel Or Stainless Steel
Base Plate Shape	Square in common
Base Plate Size	50*50mm in common or according to the customer's requirement
Base Plate Thickness	0.4mm
Adhesive Thickness	1.0mm
Pin Diameter	2.7mm or 3mm or 3.4mm in common
Pin Length	19mm to 400mm
Washer Diameter	25mm, 30mm, 32mm, 38mm, 40mm, 50mm, 60mm, 63.5mm etc.
Washer Thickness	0.4-0.5mm
Advantages	1. The pins are riveted on the base of the self adhesive insulation hangers, it's very strong. 2. The self adhesive tape on the base botom of the self adhesive insulation hangers is very sticky. 3. The self locking washers are very hard, it could lock the self adhesive insulation hangers very firmly.

Usage Of The Self Adhesive Insulation Hangers:

1. Install at ambient temperatures above 10° C (preferably between 15 and 25° C)
2. Surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
3. Remove the protective release paper,taking care not to touch the adhesive
4. Place the self adhesive insulation hangers in the required position and press the base against

the surface to be insulated
5. Insulation can be impaled immediately and firmly locked with fastening clips or washers,

but maximum strength of adherence is achieved after 24 hours

6. If necessary, cover the pin with a protective nylon cap

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners 2. We do copper plating, zinc coated and phosphating pretreatment for the raw material  3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement. 4. We use the automatic riveting machine to install . 5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea. 6. Short delivery time because of our reasonable production flow management.
