Product Details:
|
| Name: | Rock Wool Insulation Hanger | Base Material: | Galvanized Steel |
|---|---|---|---|
| Base Size: | 35mm , 40mm, 50mm | Base Thickness: | 1mm |
| Pin Diameter: | 2.7 Mm , 3 Mm | Pin Length: | 25mm -300 Mm |
| Pin Material: | Soft Aluminum / Zinc Coated Steel | ||
| High Light: | rock wool self stick insulation hangers,35mm self stick insulation hangers,rock wool self adhesive insulation hangers |
||

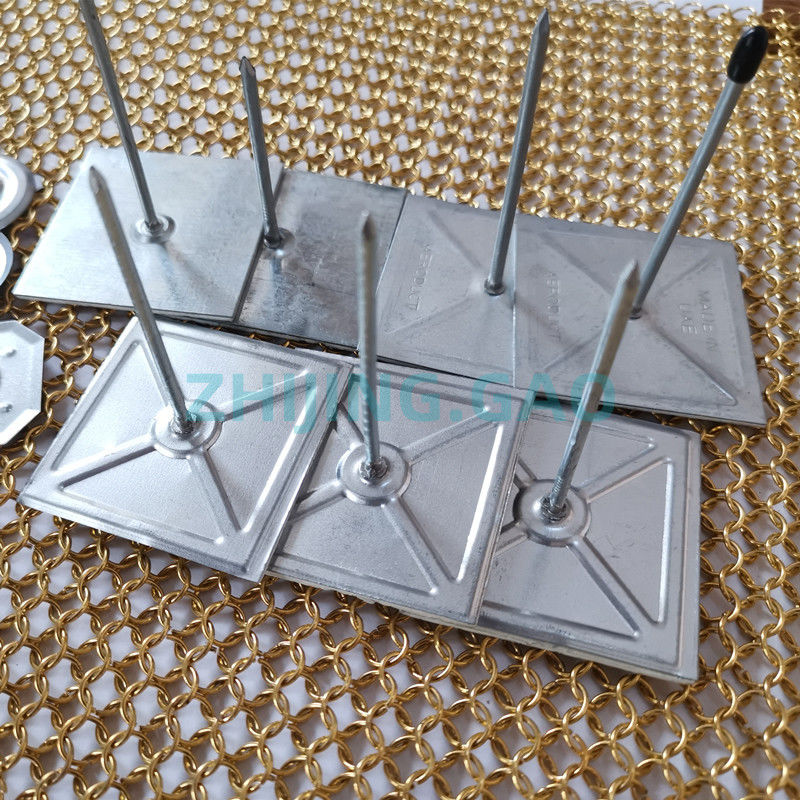

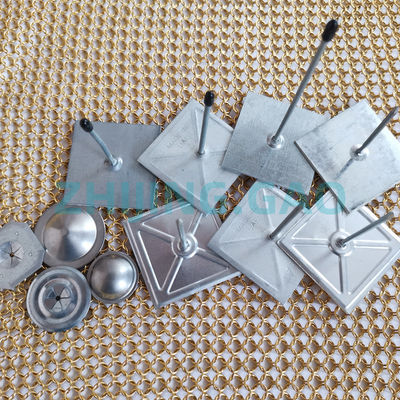

rock wool insulation hanger are easily install any type of insulation up to 3.5" thick to air ducts, metal buildings, concrete foundations - even to the underside of wooden roofs. Insulation Hangers are perfect for installing fiberglass or rubber insulation blankets or polystyrene board. Insulation Hangers have a sticker backing to make placing easier. They also have a unique Easy-Peel adhesive backing design so that there isn't any fumbling with the release paper.
| Product name: | zinc finish self stick pin |
| Brand Name: | huihaocustom |
| Model Number: | ms-50 |
| Place of Origin: | Raoyang city, China (Mainland) |
| Advantage: | good quality and low price |
| Application: | Fixing various insulation blankets |
| usage: | HVAC system, Air conditioning |
| Base Gasket: | Double Sided PE Foam |
| Base Material: | Galvanized Steel |
| Base Plate Size: | 2" x 2" (50X50) |
| Head Diameter: | 2.7mm,3.0mm |
| Finish: | Galvanised insulation pin |
| Glue: | Against High Temperature 90℃ |
| Length: | 38mm-230mm |
| Nail Length in common | 38mm;43mm;53mm;63mm,115mm, 130mm, 150mm, 164mm, 180mm, 203mm |
| Lock washer Dia.: | 38mm/40mm/50mm |
| Material: | Steel, Nail:Aluminium alloy;Base:Hot Galvanized Steel Sheet |
| PACKING: | bulk or box packing |
| Product name: | Self Adhesive Insulation Pins |
| sample: | free |
| Type: | rock wool stick pin |
| Washer | round self locking washers |
1. why must choose anneaded metal wire?
soft wire is easily for bending when fixing rock wool materials with self locking washer.
2. why we choose 2.7mm or 3mm wire to make the nails?
2.7mm and 3mm thickness wire is standard size for insulation pins. at same time, the pin length is decide the pin diameter.
3. why we choose hardness metal sheet for making the square base?
hardness metal sheet is more firmly , no-shedding, nondeformable.
| tape base | base thickness | pin diameter | pin length | material |
| 50x50mm | 1mm | 12ga/3mm | 38mm-280mm | mild steel / stainless steel |
| accept custom | accept custom | accept custom | mild steel / stainless steel |
| PIN LENGTH | CARTON SIZE | QTY/CARTON |
| 38MM | 41CMX28CMX17CM | 1000PCS |
| 50MM-65MM | 41CMX28CMX17CM | 500PCS |
| 70MM-84MM | 30CMX28CMX29CM | 500PCS |
| 90MM-120MM | 30CMX30CMX30CM | 500PCS |
| 130MM-160MM | 30CMX30CMX35CM | 500PCS |
| 170MM-203MM | 30CMX30CMX28CM | 250PCS |
| OTHERS | SUPPORT CUSTOM |
