Product Details:
|
| Name: | Insulation Pin Bonding Fasteners With Perforated Base | Brand: | Huihao Custom |
|---|---|---|---|
| Base Material: | Galvanized Steel Or Stainless Steel | Base Size: | 40x40mm, 50x50mm Etc. |
| Pin Material: | Galvanized Steel Or Stainless Steel Or Aluminum | Base Thickness: | 0.4mm, Etc. |
| Product Customization: | Support | Pin Diameter: | 2.7mm, 3.0mm, 3.4mm Etc. |
| Samples: | Support | Pin Length: | 1" - 12" |
| High Light: | adhesive stick pins for insulation,self adhesive pins for insulation,insulation pins self adhesive |
||

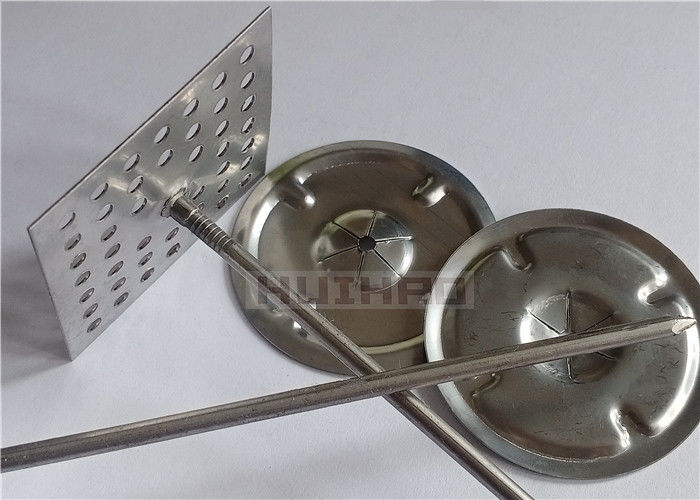

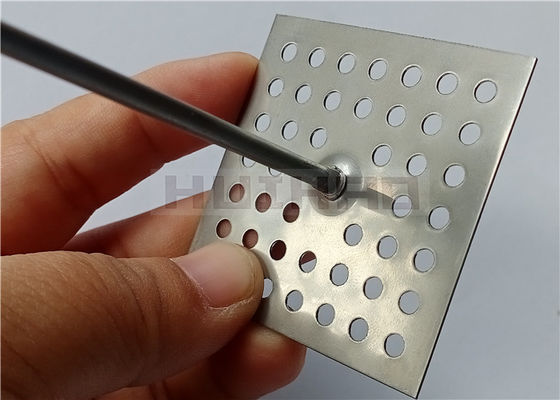

The insulation pin bonding fasteners are widely used to attach insulation to any glueable
materials with the right glue, this process dosen't need drilling and therefore create less
thermal bridges and cant damage the surfaces.
The base plate of the insulation pin bonding fasteners sizes from 19mm round up to 58mm.
You can also choose the nail length from 19mm to 230mm long.
It is always the standard 38mm round speed clips that holds the panel in place.
|

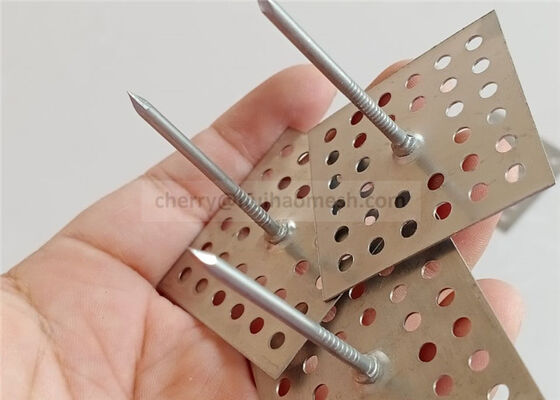

Name: 12 Gauge Insulation Pin Bonding Fasteners With Perforated Base Factory: HUIHAO Hardware Mesh Product Limited Base Material: galvanized steel or stainless steel Base Size: 50x50mm, 40x40 as standard Base Thickness: 0.4-0.5mm Pin Diameter: 2.7m as standard Pin Length: 1"-12" as standard Self locking washers size: 25mm, 30mm, 32mm, 38mm, 40mm, 50mm, 60mm, 63.5mm etc. |
 |

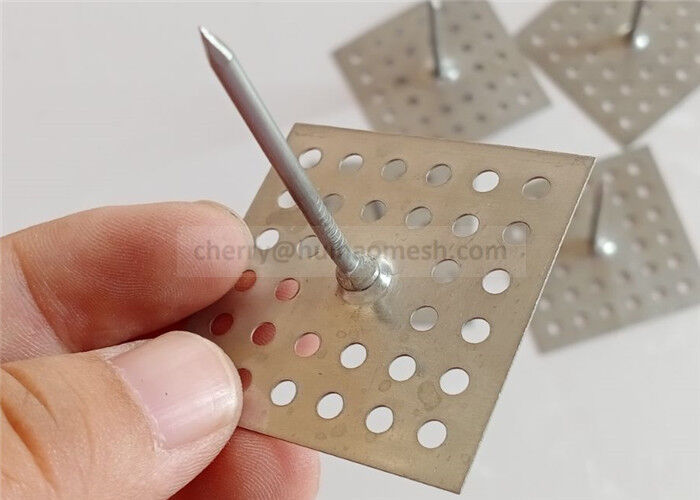

Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm
Surface treatment: zinc coated or copper coated for mild steel material
|
Material available |
|
|
Pin material |
-mild steel: must be annealed treatment, easy for bend; zinc coated/copper plated finished for anti-rust -aluminum 1100 grade -annealed stainless steel for specification |
|
Base |
Galvanized steel, stainless steel |
|
Common Size Details |
|||
|
base type |
pin diameter |
pin length |
material thickness |
|
25 mm x 25 mm |
1.8 mm , 2.0 mm |
20 mm - 114mm |
0.4-0.5 mm |
|
40 mm x 40 mm |
2.5 mm, 2.7mm |
20 mm -180mm |
0.4-0.5 mm |
|
50 mm x50 mm |
2.7 mm , 3.0mm, 3.4mm |
50 mm - 280mm |
0.4-0.5 mm |
|
1. Wipe surface clean 2. Apply right glue to the bottom of the perforated insulation pins 3. Immediately press the perforated insulation pins in place. 4. Install Insulation 5. Secure with washers
|
|
|

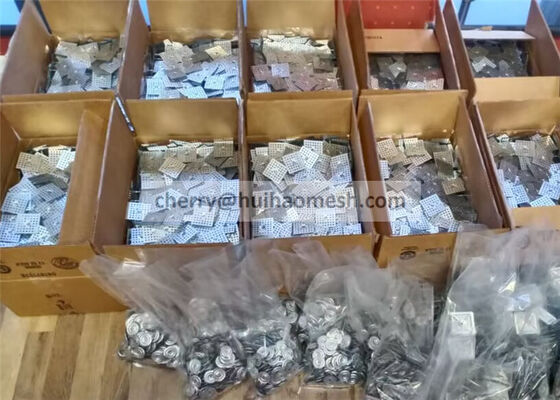

PIN LENGTH |
CARTON SIZE |
QTY/CARTON |
|
38MM |
41CMX28CMX17CM |
1000PCS |
|
50MM-65MM |
41CMX28CMX17CM |
500PCS |
|
70MM-84MM |
30CMX28CMX29CM |
500PCS |
|
90MM-120MM |
30CMX30CMX30CM |
500PCS |
|
130MM-160MM |
30CMX30CMX35CM |
500PCS |
|
170MM-203MM |
30CMX30CMX28CM |
250PCS |
|
OTHERS |
SUPPORT CUSTOM |
SUPPORT CUSTOM |
|
||
|
1. Are you manufacture or trader? We are the manufacture and we sell what we make. 2. Do you support product customization? Yes, the material, the size, all could be customizied according to your request. 3. Can you accept small order? Yes, for common size, we could accept small orders. 4. Can i get samples? Yes, for common size, samples for quality confirm is supported 5. What is your advantages? Competitive price: we sale what we manufacture. Excellent quality: we have rich experience, our products are in line with international standard. Good after-sale service: we offer good after-sale service for each order. Our products are consist in price, quality and delivery service. |
|
