Product Details:
|
| Name: | Blanket Insulation Steam Line Lacing Hook | Material: | SS304 |
|---|---|---|---|

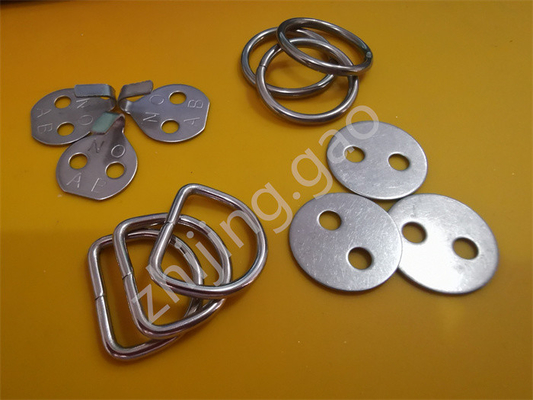

| Parts: | Lacing Anchor, Washer, Ring, Wire And Speed Clips | Anchor Length: | 50mm-300mm |
| Lacing Washer: | 25mm | Lacing Ring: | 3x30mm |
| Speed Clips: | 25mm In Common | Factory: | Huihao Hardware |
Metal Lacing anchors marked NO AB to notify the blanket is asbestos free Quiliting pins are used to maintain internal insulation between outer and inner liners.

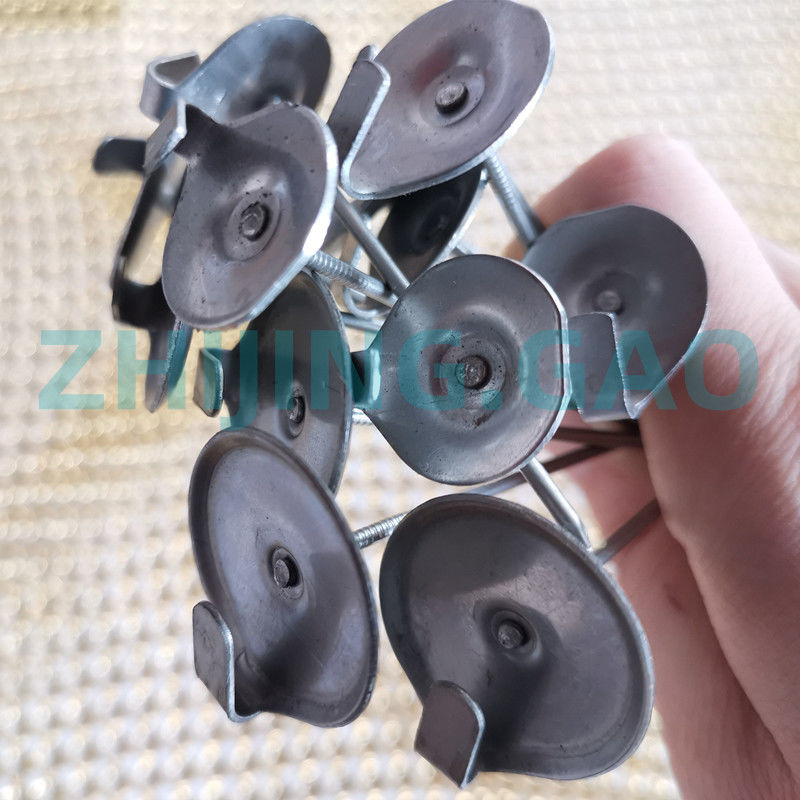

Blanket insulation dteam line lacing hook are a type of fastener that is used to secure insulation blankets pad. Typical application is for the fabrication of reusable and removable blankets or insulation covers. The lacing anchor fastener head has a round or rectangular shape. Available in 304 stainless steel or mild steel material, with a 12 or 14 gauge diameter. Standard lengths are 2.5” and 4.5”. Works with self-locking speed washers to quickly and securely fasten in place.
| head size | thickness | hook size | pin diameter | pin length |
| 22mm | 1mm | 5mmx11mm | 2mm-3mm | 38mm-300mm |
| 30mm | 1mm | 5mmx15mm | 2mm-3mm | 38mm-300mm |
| 20mmx25mm | 1mm | 5mmx11mm | 2mm-3mm | 38mm-300mm |
|
thermal insulation system is tailor-made and can be delivered as flexible jackets. Insulation material and thickness will vary with the requirements. All seams are sewn with different thread. The outer coated fabric has no penetrations that could cause water ingress.
Identify a range of product able to insulate, in particular :
How is Supplier's Responsiveness to Customer Service Inquiries?
timely and accurate,and The sales department and production department perfect record work at the same time
Does Supplier Have a Published Phone List For Obtaining Customer Service After Hours?
yes , 24hours-hotline 0086-13363891298(whatsapp)
how to ensure the quality?
our factory meet ISO9001-2015 system certification, and we will supply offical material test report and product test report by SGS/BV
How to ensure the delivery in time?
firstly we have stock for common sizes.
second, we have mould making-term,help sepcial order to save time for making mould.
third, we own Advanced production equipment and experienced workers.
four, Long-term cooperation with courier companies and sea and air freight forwarders
do you accept small order?
yes, we accept small order, for insulation pins, retail order is avable MOQ3000pcs. if need open new mould , MOQ is 20000pcs.
