Double Weld Guns Central Air Conditioning Duct Insulation Nail Welder

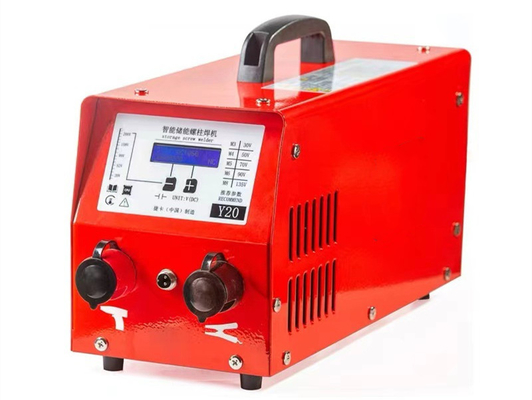

Large Image : Double Weld Guns Central Air Conditioning Duct Insulation Nail Welder

Product Details:

Place of Origin:	CHINA
Brand Name:	no brand
Certification:	ISO
Model Number:	AUCUSTOM-2500

Payment & Shipping Terms:

Minimum Order Quantity:	1 SETS
Price:	USD600 - USD860 / SET
Packaging Details:	EXPORT STANDARD WOODEN BOX
Delivery Time:	7 WORK DAYS
Payment Terms:	L/C, D/A, D/P, T/T, , Western Union
Supply Ability:	1500SETS PER MONTH

Contact Now

Double Weld Guns Central Air Conditioning Duct Insulation Nail Welder

Description

Name:	Duct Insulation Nail Welder	Rated Input Capacity:	940000uF
Input Voltage:	220v	Weight:	10-15kgs Per Set
Gun Type:	Contact Type	Continuous Operation Times:	20-40/min
Welding Frequency:	50HZ	Welding Material:	MS, SS
SIZE:	445240195MM	Custom:	Support
High Light:	double guns duct insulation pin welder , air conditioning duct insulation pin welder , duct nail insulation pin spot welder

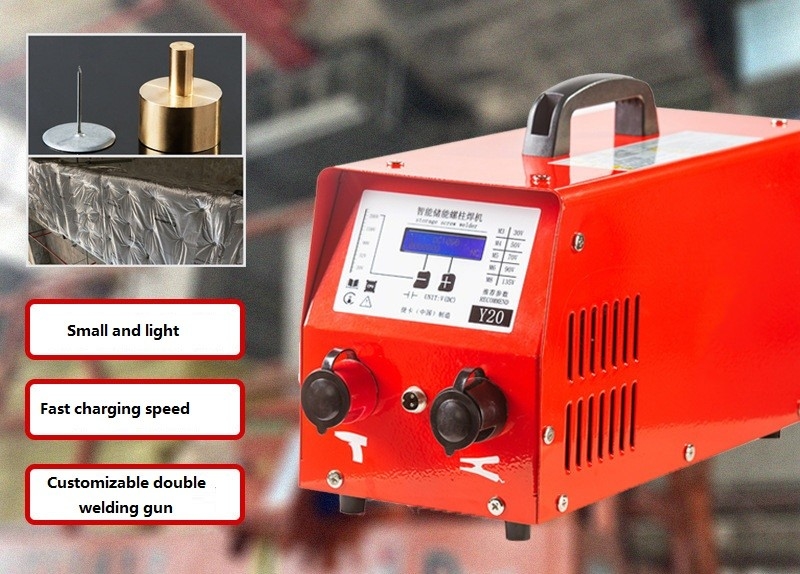

Double weld guns Central Air Conditioning Duct Insulation Nail Welder

1. Advanced IGBT inverter technology, low consumption and high output

2. Digital control improves the reliability

3. All kinds of acid, alkalic electrodes are applicable

4. Wide range of power grid adaptation(AC187-253V)

5. High no load voltage, smooth and stable welding performance with minimal spatter

6. High speed fan brings effective dissipation and high duty cycle

7. Over-current, over-voltage and over-heat protection

Specification of Air Conditioning Duct Insulation Nail Welder

SETS	nail type	weld gun type	weld material	Rated input capacity	HZ	work time	V	kg	material
Plug in type one gun	dust weld pin	touch	GAL. DUST	94000uf	50hz	20-40/min	220v	12kg	GI S, SS
Plug in type duble guns	dust weld pin	touch	GAL. DUST	940000uF	50hz	20-40/min	220V	15KG	GI S, SS
rapid-charge type one gun	dust weld pin	touch	GAL. DUST	940000uF	50hz	20-40/min	220V	10KG	GI S, SS
rapid-charge type double gun	dust weld pin	touch	GAL. DUST	940000uF	50hz	20-40/min	220V	12KG	GI S, SS

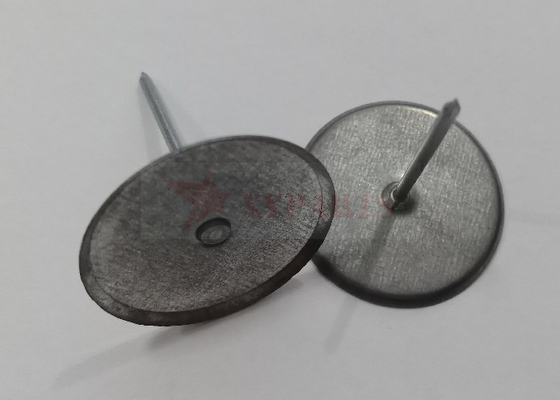

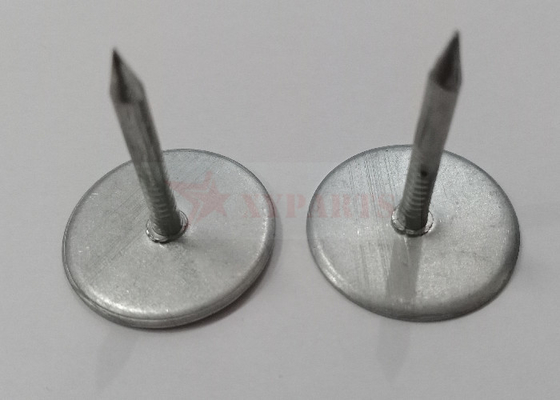

Nail types details of Air Conditioning Duct Insulation Nail Welder

Name	duct insulation nails
Pin Material	Low carbon steel or stainless steel
Pin Surface Finish	galvanized is standard, copper plating is available upon special request.
Head Material	Low carbon steel or stainless steel
Head Surface Finish	galvanized is standard
Head Edge	Beveled edge washer to prevent cutting of insulation material. Flat edge washer style also standard.
Head Diameter	1" (25mm), 1-1/2" (38mm), 1-3/16" (30mm)
Head Thickness	0.4mm or 0.5mm
Pin Diameter	0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm)
Pin Length	3/8” 7/8” 1” 1-1/8” 1-3/8” 1-1/2” 1-7/8” 2” 3” 4” etc.
Application	Duct insulation, metal building insulation
