Product Details:
|
| Product Name: | Capacitor Discharge Welding Pins | Material: | Low Carbon Steel, Stainless Steel ,aluminum |
|---|---|---|---|
| Length: | 1'' -12 '' | Pin Diameter: | 10 Ga ,12 Ga,14Ga |
| Application: | Military Defense Vehicles, Curain Wall Adornment | Surface Treatment: | Zinc Coat , Copper Plated |
| High Light: | copper plated insulation pins,cd weld pins |
||
Capacitor Discharge stud Welding Pins is Low carbon steel, stainless steel or aluminum pins that are applied with

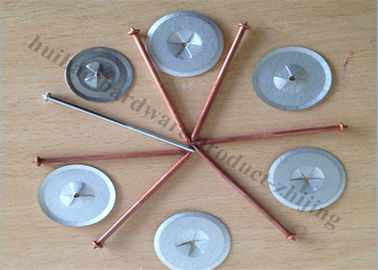

welding or equipment. Popularly used as an insulation fastener in combination with self locking washers.
Other name: Insulation Pin /stud pin / welding pin/ stud welding accessories / weld pins / stud welder pins
Material : Copper Plated , Stainless Steel, etc
Capacitor Discharge stud Welding Pins are used for attaching insulation to various metals, with the use of a CD welder.
After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.
Capacitor Discharge stud Welding Pins Specifications:
|
|
Flange |
Flange |
|
|
12 Ga (.106) |
.180 |
.235 |
As required |
|
10 Ga (.135) |
.218 |
.255 |
As required |
Material:
Mild Steel, with copper coating
Stainless Steel Type 302HQ (Type 310 & 316L as special order)
Aluminum Type 1100-H14
3mm (.118) Dia Mild Steel available as special order
Other specifications:
Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
Nail point is standard - available with "blunt end" as special order.

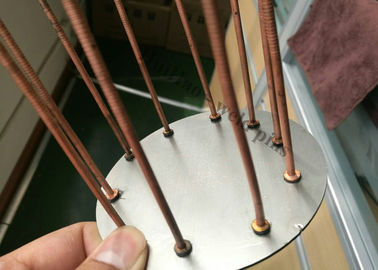

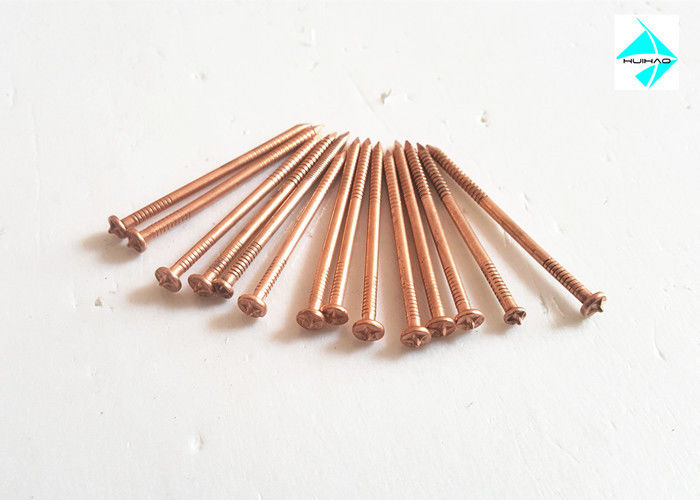

Details of the Capacitor Discharge stud Welding Pins
Application of the Capacitor Discharge stud Welding Pins
Being in use of Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment
such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and
equipment in high temperature environment .
Capacitor Discharge stud Welding Pins involves the same basic principles and metallurgical aspects as any other arc
welding procedure. When the gun isactivated, a special precision weld tip initiates a controlled electric arc from the welder
capacitor bank which melts the end of the stud and a portion of the base metal.
Capacitor Discharge stud Welding Pins is held in place as the molten metal solidifies instantly accomplishing a high
quality fusion weld. CD Studwelding is generally used to weld smaller diameter studs to thin base metals, especially
where reverse side marking is not permissible. Since the entire weld cycle is completed in milliseconds, welds
can be made to think material without pronounced distortion, burn-through or reverse side discoloration. CD Stud Welding is
compatible with just about any weldable material, and permits the welding of some dis-similar metals
How to install the Capacitor Discharge stud Welding Pins
1: weld pins in place
2: install insulation on pins
3: press washers on pins
4: bend over the pin or clip off the pins
Advantages of the Capacitor Discharge stud Welding Pins
1.Standard pin point , easy for welding
2.Pins are soft , easy for bending over
3. self locking washers are safety for installing
Packaging of the Capacitor Discharge Weld Pins
Plastic bags and cartons +wooden case, or packed as request.
Delivery of the Capacitor Discharge Weld Pins
Sample;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency
Welcome to inquiry .and we could supply the pins with best quality .
and also samples could be sent to you for testing before ordered.
