Product Details:
|
| Material: | Mild Steel Or Stainless Steel Or Aluminum | Finished: | Copper Coating Or Galvanized Steel |
|---|---|---|---|
| Diameter: | 10 Gauge / 12Gauge / 14 Gauge / 3mm | Length: | As Your Requirement |
| High Light: | copper plated insulation pins,cd weld pins |
||

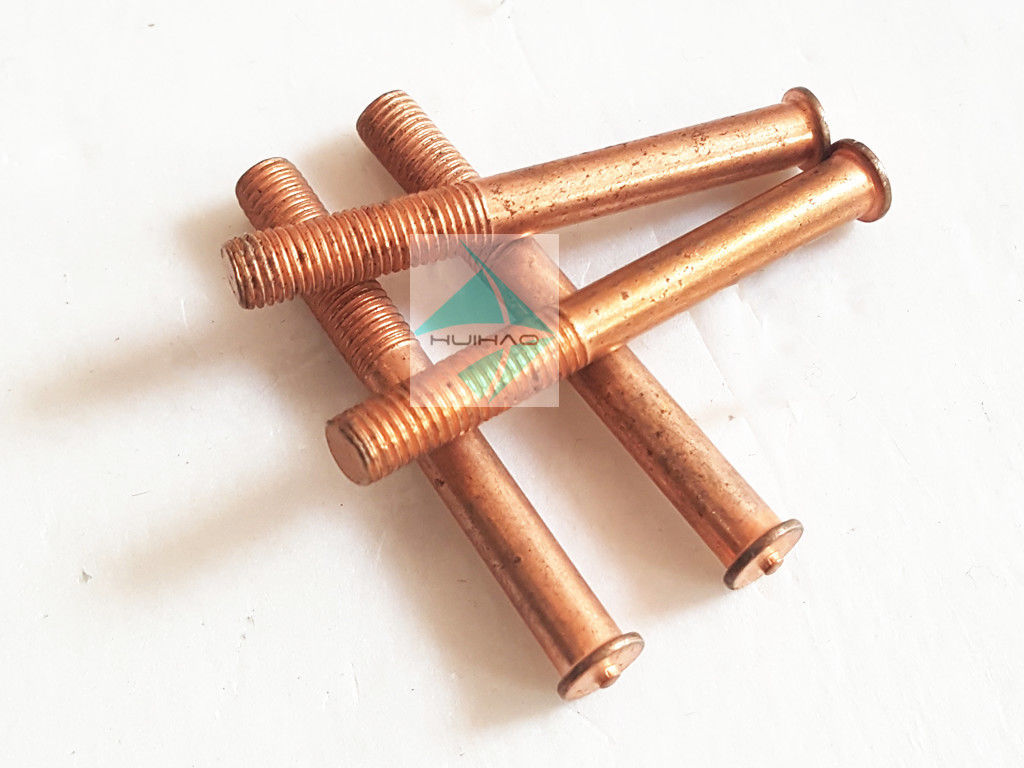

>>> Introduction To The CD Weld Studs / Flanged Stud Welding PINS

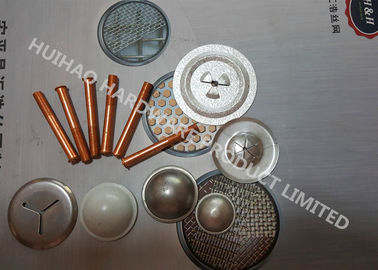

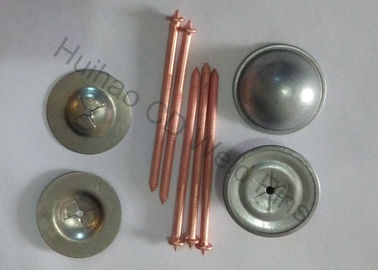

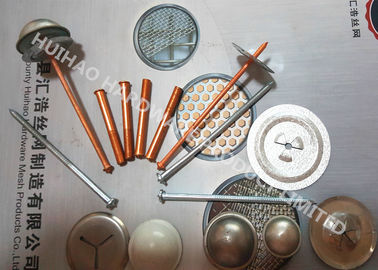

CD Weld Studs / Flanged Stud Welding pins are used for attaching insulation to various metals, with the use of a CD welder. After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.
10 Ga. (0.135") CD Weld Studs / Flanged Stud Welding pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 10 Ga. (0.135") |
| Length | 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
12 Ga. (0.105") CD Weld Studs , Flanged Stud Welding pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 12 Ga. (0.105") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" |
14 Ga, 2mm (0.080") CD Weld Studs , Flanged Stud Welding pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 14 Ga, 2mm (0.080") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" |
3mm CD Weld Studs , Flanged Stud Welding pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3mm |
| Length | 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm |
---> Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
---> Nail point is standard - available with "blunt end" as special order.
>>> Application Of The CD Weld Studs , Flanged Stud Welding pins
CD Weld Studs , Flanged Stud Welding Nails are used specifically by the shipbuilding / offshore industry such as Cable, Pipe and Trapeze Hangers, Tubing Spacers, Stack Studs and Navy Weld Studs.
Recommended Assembly Method:
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of adherence is achieved after 24 hours
>>> Package
1. 500pcs per bag, 10 bags per carton. 64 cartons per pallet. 2. to be your requirements.
>>> Delivery
Sample;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
