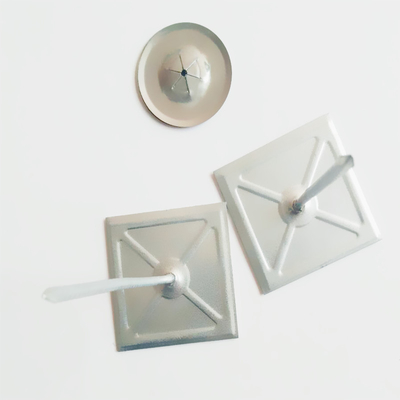

3mm Diameter Metal Insulation Stick Pins With Self Adhesive Base For Hvac System

3mm Diameter Metal Insulation Stick Pins With Self Adhesive Base For Hvac System

    • 3mm Diameter Metal Insulation Stick Pins With Self Adhesive Base For Hvac System
    • 3mm Diameter Metal Insulation Stick Pins With Self Adhesive Base For Hvac System
    • 3mm Diameter Metal Insulation Stick Pins With Self Adhesive Base For Hvac System
  • 3mm Diameter Metal Insulation Stick Pins With Self Adhesive Base For Hvac System

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001:2008
    Model Number: Insulation Stick Pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Insulation Stick Pins packing details:500 pcs per carton ,48 cartons on one pallet
    Delivery Time: 12 days after the first payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 100,000 pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Insulation Stick Pins Material: Galvanized Steel , Stainless Steel , Aluminum
    Pin Dia: 12 Ga As Standard Base Size: 2''x2'' As Standard
    Pin Length: 25mm - 200mm ,could Be Customized Sticker Color: White , Red, Blue In Common



    3mm Diameter Metal Insulation Stick Pins with Self Adhesive Base For Hvac System



    Insulation Stick Pins are designed to attach insulation to clean, dry, smooth, non-porous surfaces.


    After the hanger is installed, the insulation is impaled over the spindle & secured with a self-locking washer. Due to the nature of adhesives, it is important that the user read & follow the guidelines. It is the responsibility of the user to determine the suitability of the intended application.



    Detail Specification Of Insulation Stick Pins

    • Material:Galvanized Steel, Aluminum, Stainless steel

    • Usage:Air Conditioner

    • Nail Length:25mm - 165mm (1" to 6 1/2")

    • Nail Diameter:Dia 2.7mm (12GA)

    • Base Size:50mmx50mm (2"X2")

    • Base Material Thickness:0.4mm

    • Lock Washer Size: all kinds of sizes and shapes.

    • Lock Washer Thickness:0.4mm

    • Specification:Designed for different rectangle air duct

    HUIHAO Insulation Stick Pins



    Pin diameter  Base size  Pin length in common
    12Ga 2'x'2'' 25mm
    12 Ga  2'x'2'' 50mm
    12 Ga 2'x'2'' 63mm
    12 Ga 2'x'2'' 89mm
    12 Ga2 2'x'2'' 102mm

    12 Ga

    2'x'2'' 140mm
    12 Ga 2'x'2'' 200mm



    The length of the Self Adhesive Insulation Pins also could be customized .



    Application Of Insulation Stick Pins



    Duct-lining
    Ducts of air-conditioner
    Glass-wooland rock-wool in soundproofing works

    The pins could have washers together



    3mm Diameter Metal Insulation Stick Pins With Self Adhesive Base For Hvac System



    3mm Diameter Metal Insulation Stick Pins With Self Adhesive Base For Hvac System



    Advantages of the Insulation Stick Pins



    1. Environmentally-friendly

    2. Light, dust free, fire retardant and easy to install

    3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding

    4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning

    5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning



    APPLICATION of Insulation Stick Pins



    Best results are obtained when ambient temperature is above 40° F at the time of application. Remove the release paper from the base plate and apply hanger to a suitable flat surface.



    A firm straight, forward pressure should be used. Do not twist. Due to the quick-tack nature of the adhesive, it is very important that the release paper not be removed until ready to apply the hanger.



    Insulation may be applied immediately after properly securing the hanger. Hangers should be stored at 75° F and 50% relative humidity. It is important that stock be rotated. Shelf life is estimated at 2 years if stored as recommended



    Packaging methods of the Insulation Stick Pins



    Cartons and pallets or wooden cases:500 pcs in one carton in common, also could be packed as your requirements.



    3mm Diameter Metal Insulation Stick Pins With Self Adhesive Base For Hvac System



    HUIHAO company supply HVAC self adhesive insulation pins, self adhesive insulation hanger with good quality & competetive price. If you have special requirement, please feel free to contact us!
