Product Details:
|
| Product Name: | 8-prong Impaling Clips | Material: | SS304/316 ,mild Steel |
|---|---|---|---|
| Height: | 15mm-20mm | Mold Size: | 50x38mm,54x40mm,80x50mm |
| Thickness: | 1mm | Service: | Door To Door Service |
| Sample: | Available | Application: | Installing Fiberglass Acoustical Panel |
| High Light: | 50x80mm impaling clips,4 spikes impaling clips,single impaling clips |
||

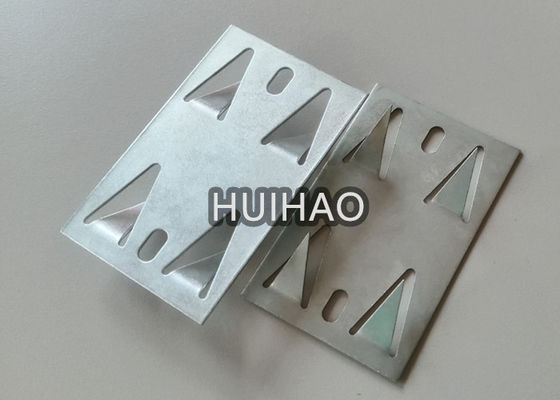

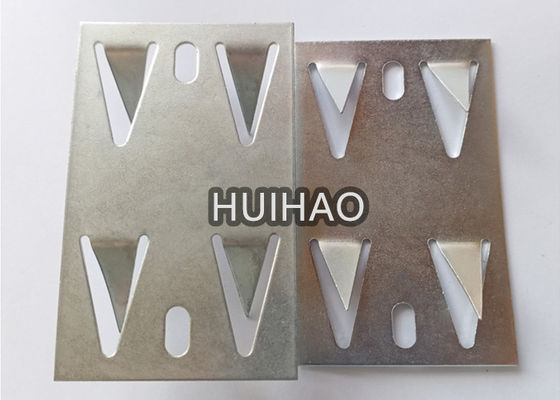

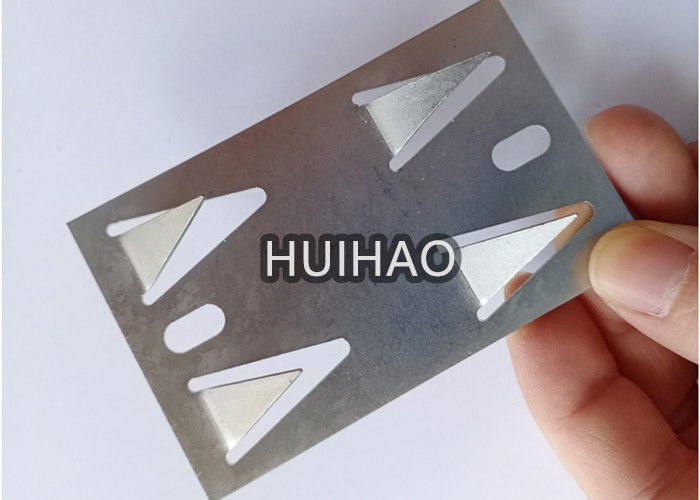

Quick details of stainless steel(single clip)impaling clips
An Impaling Clip is designed to allow for quick and easy installations of our products. The Impaling Clips
are a couple inches long with extruding metal stems. The clips get glued, screwed or nailed to a surface.
Once in place, they allow for easy installation of acoustical fiberglass products.4 to 6 clips are recomended
per 24"x48" piece of acoustic insulation
| common specification of stainless steel 8-Prong impaling clips | ||||
| material | thickness | size | Height | Spikes qty |
| stainless steel | 1mm | 50mmx38mm | 15mm | 8 |
| Stainless steel | 1mm | 54mmx40mm | 20mm | 8 |
| Stainless steel | 1mm | 80mmx50mm | 4 | |
| Galvanized steel | 1mm | 50mmx38mm | 15mm | 8 |
| Galvanzied steel | 1mm | 54mmx40mm | 20mm | 8 |
| Galvanized steel | 1mm | 80mmx50mm | 4 | |
|
1.for sepecial size ,we can make mold for you 2.for galvanized steel ,the zin coated is 40g/m3, 60g/m2, 80g/m2 or to be request |
||||
Package of impaling clips
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
1.Determine the location of your panel and have one person hold it up in place while the other person
makes a light mark on the wall to show all 4 corners.
2. Attach 4 Impaling Clips approx 3" off each corner edge and an optional 2 more impaling clips 3" in
from the edge of the center of the panel. Acoustic panel mounting hardware should be screwed into
the studs, so moving the clips a little to hit a stud is recommended. If screwing into a stud is not possible,
use a drywall anchor type screw to ensure a proper hold.
3. For permanent placement, use adhesive on the wall to stick the back of the panel to the wall (adhesive
such as Multi-Seal 180 is recommended).
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the
mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
3.We have working on this product for twenty years and we have experience on it ,and we know the point you focus on
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,we produce all kinds
of insulation pins and washers.can make mold according your drawing pic ,Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
