Product Details:
|
| Product Name: | Insulation PE Dome Cap | Top Material: | PE ,Aluminum Alloy ,stainless Steel ,galvanized Steel |
|---|---|---|---|
| Washer Material: | Stainless Steel ,galvanized Steel | Cap Color: | White ,black ,grey |
| Center Hole: | For Fixing 2.7mm,3.0mm,3.4mm,4mm,5mm Weld Stud Pins | Sample: | Freely |
| Feature: | Fire Prevention | OEM/ODM: | Support |
| High Light: | 3-slots insulation PE dome caps,black color insulation PE dome caps,Insulation PE Dome Caps |
||

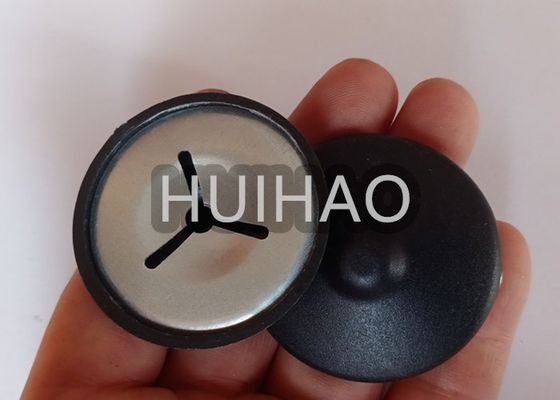

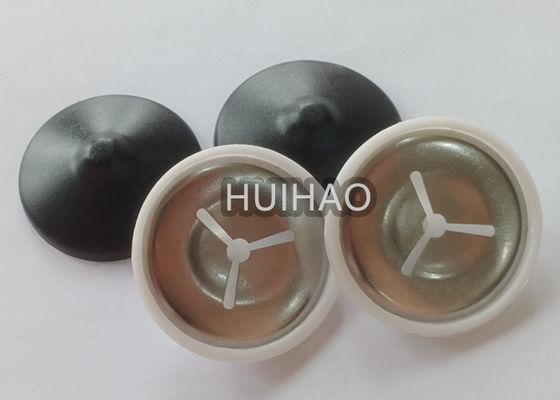

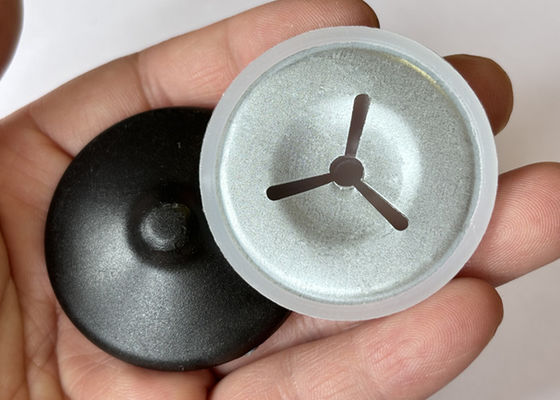

Product Name :plastic cover dome cap washers ,PE dome cap washer
Cap Material:PE material
Cap Color:black /white/grey
Inside washer :3 slots ,galvanized or stainless steel
Surface treatment :polish ,galvanized, white or black spraying coated
Diameter: 22mm,25mm,30mm,35mm,40mm,43mm
Packing :usually it is 100/200/300/500 pcs in one carton ,special package to be request
Plastic cover dome cap washers made to conceal the tips of lacing hook pins, or lacing anchor pins, or
quilting pins,or hangers in the installing or fabrication of insulation mats or jacekets, when these pins
pierce throughthe insulation with tips exposed. Dome cap washers own the property of self-locking.
the plastic cover can be white or black color , the washer inside material can be choose galvanized or
stainless steel
Pls note that :we can accept special style of customization ,send us sample or drawing ,we can
makemold for customer's style
| Product Name | PE dome cap washer |
| specifications | Diameter 40mm |
| Cap Material |
Cap:Plastic |
| Cap color | White ,black ,grey |
| Washer material | Stainless steel ,Galvanized steel . |
| Surface treatment | Polished , Galvanized coating |
| Product features | Firm locking |
| Production workmanship | Semi-automated production |
| Packing | Packing can be customized as per requirements, Current packing information available upon request. |
| Supply capability | - |
| Application | They are normally used with CD Weld Pins together to cover the ends of pins . |
| Remark | Technical parameters are available upon request |
Domed caps washer are designed to be used where appearance and safety are major concerns. For best
results, pins should be 1/4 in. longer than the insulation thickness.
Secure insulation with a self-locking washer, then install the dome cap to cover the nail point.Silver Dome
Caps washer are the most economical and can be painted to match any color fabric. They also are used
on FRK faced material.
Black Dome Caps washer are the preferred choice when installing black fiberglass acoustic board or with
black fabrics.White Finish Washers are used on ASJ faced material or white fabrics.
| cap size | qty/ bag | bag qty/ carton | carton size |
| 22mm | 500 pcs | 6 bags | 41cmx28cmx17cm |
| 27mm | 300pcs | 6 bags | 41cmx28cmx17cm |
| 30mm | 300pcs | 6 bags | 41cmx28cmx17cm |
| 40mm | 200pcs | 5 bags | 41cmx28cmx17cm |
| 50mm | 100pcs | 8 bags | 41cmx28cmx17cm |
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,we produce all kinds
of insulation pins and washers.can make mold according your drawing pic ,Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
