Product Details:
|

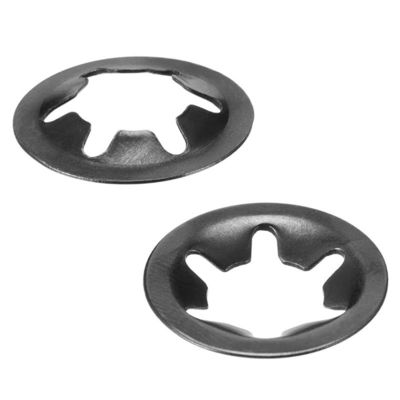

| Name: | M3 Star Locking Washer Internal Tooth | Type: | Internal Tooth Round Speed Clip |
|---|---|---|---|

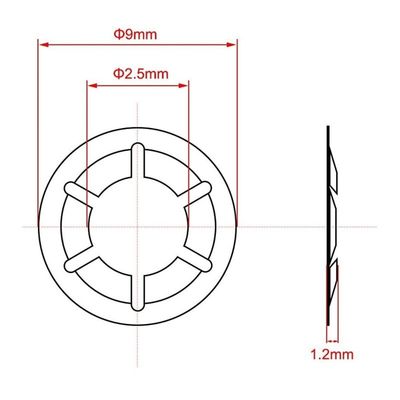

| Size: | M3 | ID: | 2.5MM |
| OD: | 9MM | Material: | 65Mn Metal Steel, Anti-Corrosion And Durable |
| Application: | Machinery Equipment, Industrial Production Of Shock Absorption And Insulation | Desinger: | Zhijing.gao13363891298 |
| High Light: | star locking washer m3,black oxide finish star locking washer,m3 internal tooth starlock washers |
||
| size | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |
| d | MIX | 1.9 | 2.9 | 3.9 | 4.9 | 5.9 | 7.9 | 9.9 | 11.9 |
| MIN | 1.8 | 2.75 | 3.75 | 4.75 | 5.75 | 7.75 | 9.75 | 11.75 | |
| dc | 6 | 10 | 12 | 14 | 16 | 17.5 | 21 | 27 | |
| H | 0.7 | 1.3 | 1.4 | 1.55 | 1.75 | 1.8 | 2.2 | 2.8 | |
| h | Average | 0.25 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.7 | 0.9 |
| MIX | 0.275 | 0.325 | 0.325 | 0.43 | 0.43 | 0.53 | 0.74 | 0.95 | |
| MIN | 0.225 | 0.275 | 0.275 | 0.37 | 0.37 | 0.47 | 0.66 | 0.85 | |
Notes:
The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
The size,color,printing word ,etc is subjectde to the real product.
If the above link does not have the product that you want, please consult us and customize.
We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.
