M4 Starlock Washer 3.5mm ID 12mm OD Push On Lock Speed Clip 65Mn Steel

M4 Starlock Washer 3.5mm ID 12mm OD Push On Lock Speed Clip 65Mn Steel
M4 Starlock Washer 3.5mm ID 12mm OD Push On Lock Speed Clip 65Mn Steel M4 Starlock Washer 3.5mm ID 12mm OD Push On Lock Speed Clip 65Mn Steel M4 Starlock Washer 3.5mm ID 12mm OD Push On Lock Speed Clip 65Mn Steel

Large Image :  M4 Starlock Washer 3.5mm ID 12mm OD Push On Lock Speed Clip 65Mn Steel

Product Details:
Place of Origin: CHINA, HEBEI
Brand Name: HUIHAOKST
Certification: ISO9001-2015
Model Number: M4 STARLOCK WASHER
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS of starlock washer
Packaging Details: small pp bag or plastic box or carton for starlock washer
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, alipay
Supply Ability: 1000000 pcs starlock washer per 30 days
Contact Now

M4 Starlock Washer 3.5mm ID 12mm OD Push On Lock Speed Clip 65Mn Steel

Description
Name: M4 Starlock Washer Size: M4
ID: 3.5MM OD: 12MM
Material: 65MN STEEL Color: Oxide Black
Usage: Machinery Equipment, Industrial Production Of Shock Absorption And Insulation Service: Zhijing.gao 13363891298
High Light:

M4 star locking washer

,

3.5mm ID star locking washer

,

65Mn Steel star locking washer

Unique Bargains high precision starlock push on locking washers

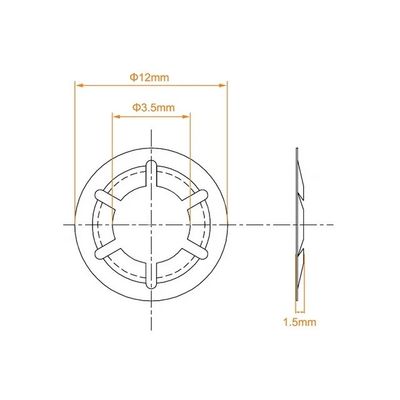

Specification of M4 Starlock washer

  • Washer Type: Starlock Washer
  • Material: 65Mn Spring Steel
  • Finish: Black Oxide
  • Size: M4
  • Fit Shaft Outer Diameter: 4mm
  • Inner Diameter: 3.5mmm
  • Outer Diameter: 12mm
  • Thickness: 1.5mm
  • Hole Design: 6 Points
  • Package Content: 100(+/-2%)pcs x Starlock Washer

Description of M4 Starlock washer

  • Starlock Washer provides spring force between two attachments and grip shaft firmly in place.
  • These push-on washers create a permanent installation and will lock firmly.
  • 65Mn steel is a perfert material for spring washer due to its good strength. Black oxide finish gives better corrosion resistant performance in dry environments.
  • Widely used in machinery equipment, industrial production of shock absorption, bearings, machinery, etc.
  • The Starlock Washers have teeth that dig into the shaft material, so expect minor scratching.

Technical data of starlock washer

size 2 3 4 5 6 8 10 12
d MIX 1.9 2.9 3.9 4.9 5.9 7.9 9.9 11.9
  MIN 1.8 2.75 3.75 4.75 5.75 7.75 9.75 11.75
dc 6 10 12 14 16 17.5 21 27
H 0.7 1.3 1.4 1.55 1.75 1.8 2.2 2.8
h Average 0.25 0.3 0.3 0.4 0.4 0.5 0.7 0.9
  MIX 0.275 0.325 0.325 0.43 0.43 0.53 0.74 0.95
  MIN 0.225 0.275 0.275 0.37 0.37 0.47 0.66 0.85



M4 Starlock Washer 3.5mm ID 12mm OD Push On Lock Speed Clip 65Mn Steel 0



Package details of starlock washer

1. 50 pcs , 100 pcs 0r 200 pcs per PP bag

2. 200 pcs or 340 pcs per plastic box

3. to be your requests to design the lable and package
