Product Details:
|
| Name: | Spring Quick Washer | Application: | Push On Speed Nut Assortment |
|---|---|---|---|
| Size: | M2-m10 | Material: | 65Mn Metal Steel |
| Finished: | Black | Washer Type: | Internal Tooth Star LOCK WASHER |
| Manufacturer: | HUIHAO HARDWARE | Designer: | ZHIJING.GAO13363891298 |
| High Light: | m2 internal tooth starlock washers,internal tooth starlock washers m2,star locking washer m2 |
||
Specification of Internal Tooth Star Lock Spring Quick Washer
Name : Internal Tooth Starlock Washers
Material : 65Mn Metal Steel
Color: Black
Size: M3, M4, M5, M6, M8, M10, M12
| size | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |
| d | MIX | 1.9 | 2.9 | 3.9 | 4.9 | 5.9 | 7.9 | 9.9 | 11.9 |
| MIN | 1.8 | 2.75 | 3.75 | 4.75 | 5.75 | 7.75 | 9.75 | 11.75 | |
| dc | 6 | 10 | 12 | 14 | 16 | 17.5 | 21 | 27 | |
| H | 0.7 | 1.3 | 1.4 | 1.55 | 1.75 | 1.8 | 2.2 | 2.8 | |
| h | Average | 0.25 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.7 | 0.9 |
| MIX | 0.275 | 0.325 | 0.325 | 0.43 | 0.43 | 0.53 | 0.74 | 0.95 | |
| MIN | 0.225 | 0.275 | 0.275 | 0.37 | 0.37 | 0.47 | 0.66 | 0.85 | |
Feature of Internal Tooth Star Lock Spring Quick Washer
1. Choose from a wide range of sizes to meet different installation needs.
2. The starlock washer exerts a spring force between the fasteners head and the substrate to create more feiction and resistance to rotation.
3. Made of 65Mn metal steel, it's high-quality and durable.

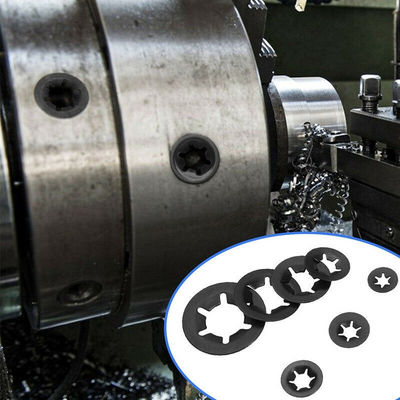

4. It is commonly used in our daily life and in industry. We can used in machinery equipment, industrial production of shock absorption and insulation.
