Stainless Steel Perforated Base Insulation Anchor Pins Fire prevention A

Stainless Steel Perforated Base Insulation Anchor Pins Fire prevention A

    • Stainless Steel Perforated Base Insulation Anchor Pins Fire prevention A
    • Stainless Steel Perforated Base Insulation Anchor Pins Fire prevention A
    • Stainless Steel Perforated Base Insulation Anchor Pins Fire prevention A
    • Stainless Steel Perforated Base Insulation Anchor Pins Fire prevention A
  • Stainless Steel Perforated Base Insulation Anchor Pins Fire prevention A

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: iso9001-2008
    Model Number: perforated base insulation anchor pins

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000pcs
    Packaging Details: 500pcs per carton, 48 carton per pallte
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 300000pcs per 28 days
    Contact Now
    Detailed Product Description
    Name: Insulation Anchor Pins Material: Stainless Steel
    Pin Diameter: 2.7mm Pin Length: Less Than 300mm
    Base Thickness: 0.4mm Base Size: 50mm, 40mm
    Small Order: Support Sample: Support



    Stainless Steel Perforated Base Insulation Anchor Pins Fire prevention A



    technical data of the perforated base insulation anchor pins



    common length common dia common base common base thickness common material pin material
    1" 12ga,3mm 50mm,40mm 0.5mm SS, Gal steel SS, Gal steel, alu
    1-1/2" 12ga, 3mm 50mm, 40mm 0.5mm SS, Gal steel SS, Gal steel, alu
    2" 12ga, 3mm 50mm, 40mm 0.5mm SS, Gal steel SS, Gal steel, alu
    2-1/2" 12ga, 3mm 50mm, 40mm 0.5mm SS, Gal steel SS, Gal steel, alu
    3-1/2" 12ga, 3mm 50mm, 40mm 0.5mm SS, Gal steel SS, Gal steel, alu
    4-1/2" 12ga, 3mm 50mm, 40mm 0.5mm SS, Gal steel SS, Gal steel, alu
    4-5/8" 12ga, 3mm 50mm, 40mm 0.5mm SS, Gal steel SS, Gal steel, alu
    5" 12ga, 3mm 50mm,40mm 0.5mm SS, Gal steel SS, Gal steel, alu
    6-1/4" 12ga, 3mm 50mm,40mm 0.5mm SS, Gal steel SS, Gal steel, alu



    noted: accept customization

               zinc plated or copper plated surface treatment



    advantages of the perforated base insulation anchor pins

    • Use raw materials that meet international standards

    • Rust-proof surface treatment, long service life

    • CNC technology, small error range

    • Smooth surface without burrs

    • Scientific dimensional design, in line with mechanical standards

    • Suitable for all kinds of wall

    • High pull-off strength for a higher security of the system

    • Low thermal conduction addition value to avoid thermal bridge

    • Galvanized layer on the steel nail to protect the nail from alkali

    how to choose the length of the perforated base insulation anchor pins the below data is for reference:

    • 1-5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
    • 2-1/2": Used for 2" Fiberglass Rigid Board / Foam Board
    • 4-1/2": Used for 4" Fiberglass Rigid Board / R-13
    • 6-1/2": Used for R-19 Fiberglass Batt Insulation
    • 9-1/2": Used for R-30 Fiberglass Batt Insulation
    • 12-1/2": Used for R-38 Fiberglass Batt Insulation

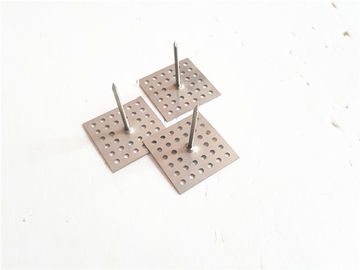

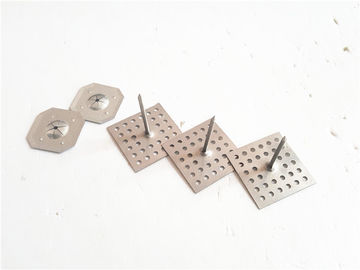

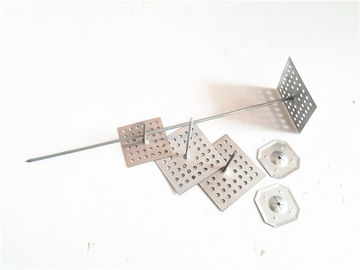

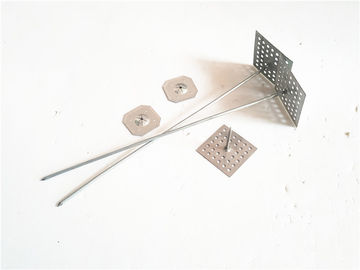

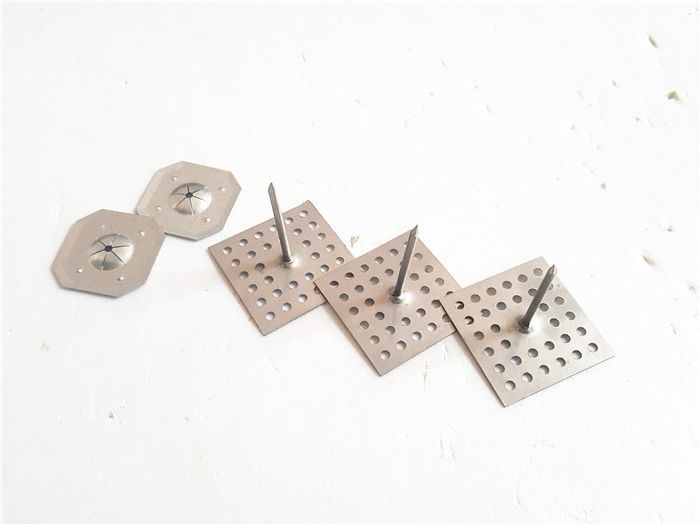

    images of perforated base insulation anchor pins



    Stainless Steel Perforated Base Insulation Anchor Pins Fire prevention A



    huihao company services

    • One-to-one order service
    • Door to door logistics service
    • Cartographic confirmation service
    • Processing customization service
    • Packaging design service
    • Document making service
    • Inspection and inspection service
