M8 Size CE Approval Insulation Anchor Pins 60MM - 230MM Metal Insulation Plug

M8 Size CE Approval Insulation Anchor Pins 60MM - 230MM Metal Insulation Plug

    • M8 Size CE Approval Insulation Anchor Pins 60MM - 230MM Metal Insulation Plug
    • M8 Size CE Approval Insulation Anchor Pins 60MM - 230MM Metal Insulation Plug
    • M8 Size CE Approval Insulation Anchor Pins 60MM - 230MM Metal Insulation Plug
    • M8 Size CE Approval Insulation Anchor Pins 60MM - 230MM Metal Insulation Plug
  • M8 Size CE Approval Insulation Anchor Pins 60MM - 230MM Metal Insulation Plug

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001-2008
    Model Number: insulation fixing

    Payment & Shipping Terms:

    Minimum Order Quantity: 30000pcs
    Packaging Details: 50pcs per bag, 250pcs per carton
    Delivery Time: within 10days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 350000pcs per carton
    Contact Now
    Detailed Product Description
    Product Name: Insulation Fixing Diameter: M8
    Material: Galvanized Steel Thickness: 0.7mm
    Length: 60-230mm Base Size: 35mm





    M8 Size CE Approval Metal Insulation Fixing, 60MM - 230MM Metal Insulation Plug



     Inroduce metal insulation fixing / metal insulation plug



    metal insulation fixing/ insulation plug is a special engineering metal expansion nail that fixes the insulation board to the wall.

    Insulation anchor pins are special anchors for exterior wall insulation, which are widely used in building decoration and anchoring

    of wall insulation houses. It consists of a metal tube and a fixed disc. According to the thickness of the insulation layer, it is divided

    into various specifications.



    The performance parameters are based on the JG/T366-2012 standard:


    1. The nominal diameter of the Pin disc should not be less than 30mm and the tolerance is 1.0mm.

    2.The nominal diameter of the expansion sleeve shall not be less than 8 mm and the tolerance shall be ± 0.5 mm.
    3. Anchor bolt tensile bearing capacity standard value Fk≥0.60
    4. insulation anchor pin's Disc pullout standard value Frk≥0.50

    5. Fire-proof level: A

    Specification of the insulation fixing/metal insulation plug



    Pin Size Pin Dia Pin Length Plate Size Plate Thickness Pin Weight
    M8x50 8mm 50mm 30mm / 35mm 0.7mm 10.2g
    M8x60 8mm 60mm 30mm / 35mm 0.7mm 11.2g
    M8x90 8mm 90mm 30mm / 35mm 0.7mm 14.8g
    M8x110 8mm 110mm 30mm / 35mm 0.7mm 17.3g
    M8x140 8mm 140mm 30mm / 35mm 0.7mm 20.8g
    M8x170 8mm 170mm 30mm / 35mm 0.7mm 24.4g
    M8x230 8mm 230mm 30mm / 35mm 0.7mm 34.4g



    features of insulation fixng /metal insulation plug

    • It has anti-aging, anti-temperature sudden change, anti-corrosion, cold and heat resistance;
    • high bearing capacity, high pressure bearing, good tensile performance;
    • not easy to deform, moisture, vibration, and good thermal insulation after loading.
    • Easy to install, no special installation tools are required.
    • The galvanized screw solves the corrosion problem well, has good durability,
    • the heat transfer performance of the nylon material is low.
    • There is no cold bridge in winter, and the energy is high.

     Application of insulation fixing/ metal insulation plug



    insulation fixing suit for

    ·Concrete

    ·Natural stone with dense structure

    ·Solid brick ·Solid sand-lime brick

    ·Solid block made from light weight concrete

    ·Aerated concrete

    ·Vertically perforated brick

    ·Perforated sand-lime brick

    metal insulation plug fixing for

    ·Soft and pressure-resistant insulating material, e.g.

    ·Glass wool ,Rock wool

    ·Polystyren

    ·PU panels

    ·Foam glass

    ·Lighting building boards made of wood wool

    ·Coir matting

    ·Cork boards



    The number of installations: 1-10 layers average 6 / m2, 11-20 layers average 7 / square meters 21-26 layers 9 / m2.

    Any single block with an area greater than 0.1m2 must be anchored, depending on the shape and site conditions;

    the density of the anchor should be increased around the angle of the sun, under the mouth, and around the edge of the hole.

    The distance is not more than 300mm, from the edge of the base. Not less than 60mm

    • 110mm insulation fixings for 40-70mm insulation boards
    • 145mm insulation anchors for 75-105mm insulation slabs
    • 170mm fireproof fixings for 105-130mm insulation panels
    • 200mm metal fasteners for 135-160mm insulation boards

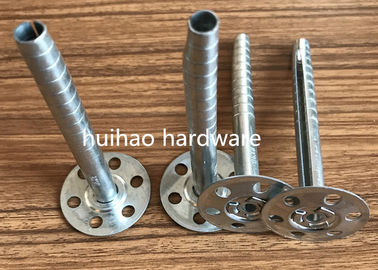

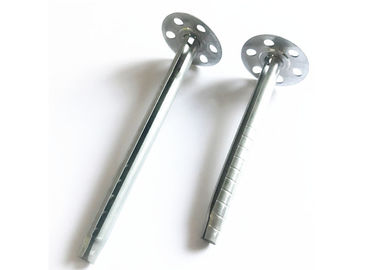

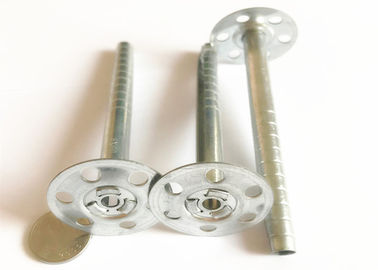

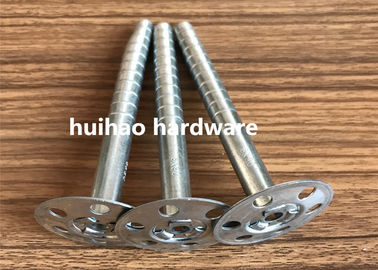

    images of insulation fixing/ metal insulation plug pins



     M8 Size CE Approval Insulation Anchor Pins 60MM - 230MM Metal Insulation Plug
