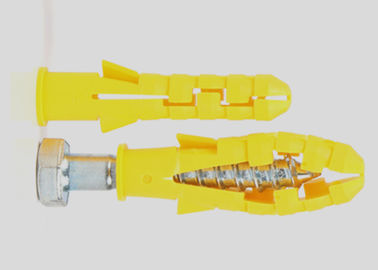

DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins

DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins

    • DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins
    • DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins
    • DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins
    • DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins
  • DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001-2008
    Model Number: hex head screw with palstic dowel

    Payment & Shipping Terms:

    Minimum Order Quantity: 30000 sets
    Packaging Details: bulk packing, small boxes,carton,pallet
    Delivery Time: 8 work days
    Payment Terms: T/T, L/C,alibaba, paypal
    Supply Ability: 100000pcs per 10 days
    Contact Now
    Detailed Product Description
    Screw Material: Steel, Ss201/304/316 Dowel: Plastic
    Screw Size: M3-m36 Screw Length: 12-200mm
    Dowel Diameter: M3-m40 Dowel Length: To Your Order

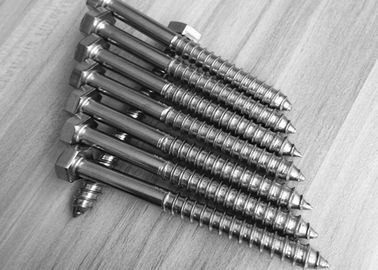

    DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins



    Wood screws are similar to machine screws, but the threads on the screw are special wood screw threads that can be screwed directly into the

    wood component (or part) for a metal (or non-metallic) part with a through hole and a wood The components are fastened together. This connection

    is also a detachable connection.



    Wood screws, one section is a polished rod, wood screws and self-tapping thread angle and tooth distance are not the same.


    The self-tapping screws have high hardness, wide thread pitch, deep thread, and the surface is not smooth. The wood screws are reversed, and

    the other difference is more obvious. The rear section of the wood screws has no thread. Self-tapping screws are generally heat-treated, and wood

    screws are not required. The concept of self-tapping screws is actually very general, because he has a variety of different types according to the

    head shape.



    Specification of hex head screw with plastic dowel

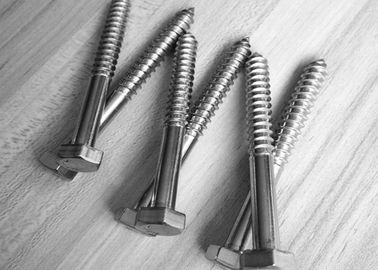

    DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins
    ds max 4 5 6 7 8 10 12 16 20
      min 3.52 4.52 5.52 6.42 7.42 9.42 11.3 15.3 19.3
    k max 3.1 3.88 4.38 5.38 5.88 7.45 8.45 10.45 13.9
      min 2.5 3.13 3.63 4.63 5.13 6.55 7.55 9.55 12.1
    s max 7 8 10 12 13 17 19 24 30
      min 6.64 7.64 9.64 11.57 12.57 16.57 18.48 23.16 19.16

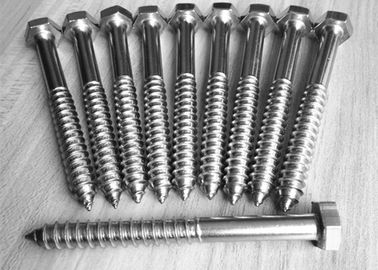

    DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins

    DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins

    parts size as reference
    size m6 m8 m10 m12
    d1 4.9 5.3 5.8 6.3
    d 6 8 10 12
    L 30 39 42 59





    Form a complete set of recommendations



    plastic dowel with Drywall screw, countersunk head tapping screw, chipboard screw

    DIN571 Steel Hex Head Screws With Plastic Dowel 10/100 For Furniture Anchor Pins



    Executive standard

    • Slotted round head wood screws GB 99-86
    • Slotted countersunk wood screws GB 100-86
    • Slotted semi-sunk head wood screws GB 101-86
    • Hex head wood screws GB 102-86
    • Cross recessed round head wood screws GB 950-86
    • Cross recessed countersunk head wood screws GB 951-86
    • Cross recessed countersunk head wood screws GB 952-86

    Huihao Company advantage

    • Accept small orders because we have sufficient stock
    • ISO9001-2008 Quality Management System Certificate
    • Cnc mechanized production
    • In line with national environmental protection standards, no pollution
    • The construction period is guaranteed and will not be extended.
    • Standard export packaging, trademark customization, carton customization
    • Support processing customization
