2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine

2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine

    • 2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine
    • 2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine
    • 2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine
    • 2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine
  • 2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Barbed Wire Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 3 sets
    Packaging Details: 1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box. 2. The main machine will be fixed in the container by steel wire rope to make it stable. 3. It needs one 20 feet or 40 feet container for shipment.
    Delivery Time: 10 work days
    Payment Terms: L/C, T/T
    Supply Ability: 120 sets per 28 days
    Contact Now
    Detailed Product Description
    Dimention: 1900*1300*980mm Wire Standard: 2.2-2.8mm
    Rated Output: 70kgs/h Weight: 1.5t
    Voltage: 380v Or As Local Standard Transformer: 3kw
    High Light:

    stainless steel filter mesh

    ,

    self cleaning screen



    2.0mm Single Barbed Wire Making Machine, Galvanized Barbed Spike Wire Machine



    1. specification of  Single Barbed Wire Making Machine, Galvanized Barbed Spike Wire Machine



    Overall Dimension 2000x1200x1400mm 3200x1200x1500mm
    Barb Pitch Space 76-150 76-102
    No.of Twists 3-4 6-8
    Barbed Wire Diameter 1.6-2.5 1.5-2.4
    Weight of Machine 900kg 800kg



    parameter of double twisted barbed wire machine :



    No Items Unit Parameter
    1 electromotor Modle Y10012-4
    2 electromotor KW 3
    3 Speed of transmission shaft time/min 402
    4 Speed of spooling barbed wire time/min 470
    5 Speed of pulling rope mime/min 134
    6 Speed of round pallet time/min 30-255
    7 Size of the main machine mm 1900*1300*980
    8 Size of the pull wire machine mm 1800*500*500



    2. introduce of Single Barbed Wire Making Machine, Galvanized Barbed Spike Wire Machine



    Our barbed Wire Machine is designed to produce barbed wire single or double twisted. Stranded barbed steel wire, thermo-plated with zinc. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.



    3. image details of Barbed Wire Making Machine

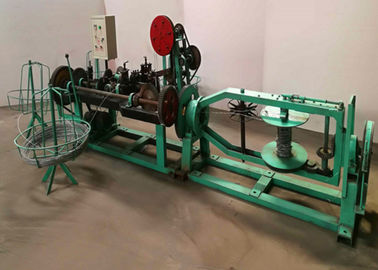

    2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine 0

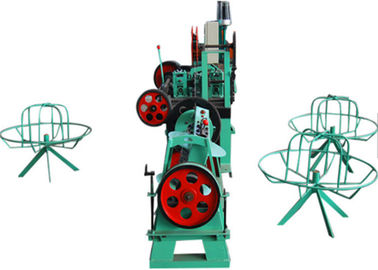

    2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine 1



    4.quality control

    • 1.Warranty: one year
    • 2.Enough spare parts of machine could be supplied.
    • 3.Factory own designing and inspection team
    • 4.All machine will be tested and adjusted before delivery
    • 5.24 hours technical support by e-mail or calling service.
    • 6.Machine to be installed and commissioned by our technicians.we can send our technician to install the machine accordingly if the buyer need.
    • 7.Training: the buyer should charge of visa, return ticket, food and accommodation overseas
    • 8.Technician: Normally need one or two technician.

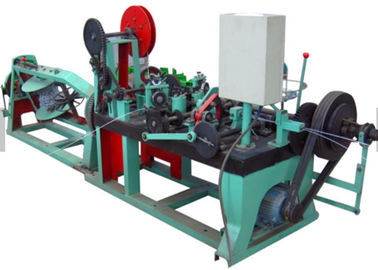

    2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine 2



    5. features of Single Barbed Wire Making Machine, Galvanized Barbed Spike Wire Machine

    • 1. It is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality with compact structure, small volume, easy operation and regulation
    • 2.The material can be galvanized wire, pvc coated iron wire ,etc
    • 3. The products are most used in highway, railway, grassland parapet and other places.
    • 4. Depend on different function and different requirement; you can order special machine with us.



    6. package



    1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.

    2. The main machine will be fixed in the container by steel wire rope to make it stable.

    3. It needs one 20 feet or 40 feet container for shipment.

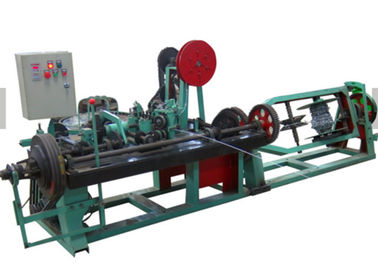

    2.0mm Single Barbed Razor Wire Making Machine , Galvanized Razor Barbed Wire Machine 3



    7. FAQ



    Q: Are you the factory?
    A: Yes,We are a professional wire mesh machines manufacturer. We dedicated in this industry for 22 years. We can offer you competitive machines.
    Q:Where is your factory located? How can I visit there?
    A:Our factory is located in ding zhou county, hebei Province, China, about 3.5 hours by car from Beijing .All our clients, from home or abroad, are warmly welcome to visit our company !
    Q: What is the voltage ?
    A: To ensure each machine runs well in different country and region, we will choose different voltage like 220V 50HZ; 380V 50HZ; 415V 50HZ;440V 60HZ etc
    Q: How much is your machine ?
    A: The price is depended on 3 factors:wire diameter, mesh size,and mesh width.
    Q: What is your payment terms?
    A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
    Q: Do your supply includes installation and debugging ?
    A: Yes. We will send our best engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
    Q: How long is your delivery time?
    A: If we have in stock, delivery to Tianjin port about 5 days, No stock, it will be 30 days after received your deposit.
    Q: How can you guarantee the quality and the warranty?
    A. We have an inspection team to check the products at all stages of the manufacturing process-raw material, welding process and test the finished products, etc. 100% inspection in assembly line to achieve the required quality levels.
