Home ProductsInsulation Anchor Pins

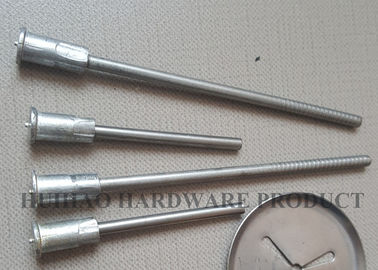

Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm

Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm

  • Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm
  • Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm
  • Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm
  • Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm
  • Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm
Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm
Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: BIMetallic insulation pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1)20-25kgs/CTN, 2)50lb/CTN, 3)30lb/Bucket, 4)5kgs/Box, 4)1kg/Bag etc.
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 300Ton/Tons per Month
Contact Now
Detailed Product Description
Material: Q195/Q235/1045/A36/S45C Length: 3/4"-4"
Shank Diameter: 3mm Head Diameter: 6mm
High Light:

rockwool insulation pins

,

insulation anchors



Aluminum Weld Base BIMetallic Insulation pins for Ship-building 3mmx100mm


Aluminum Weld Base BIMetallic Insulation pins The studs and raw material specifications mentioned conform with EN ISO 13918

and EN ISO 14555.As a manufacturer, we are able to offering not only standard Weld Studs, but also special design studs and pins.

If you do not find the specific inform-ation you are looking for, please contact us.
Other materials are available on request.
Self-Locking washers (clips) are available in a variety of sizes, shapes and materials.


1. specification of Aluminum Weld Base BIMetallic Insulation pins



10 Ga. Bi-Metallic Pins

Material

Pin Diameter

Pin...Stainless Steel,Base...Aluminum

10 Ga, 0.135 (3.4mm)

length

Part Number

1.1/2"

2372-1048

2.0

2372-1064


2.1/2

2372-1080


3.0"

2372-1096


3.1/2

2372-10112


4"

2372-10128

4.1/2"

2372-10144

5"

2372-10160

6"

2372-10192

Annular Groove (Navy) Bi-Metallic Pins

Material

Pin Diameter

Pin...stainless steel Base...aluminum

Annular Groove 0.175 - 0.180" (4.4 - 4.6mm)

Length

Part Number

7/8"

2382-0628

1.0"

2382-0632

1.7/8"

2382-0660

2.7/8"

2382-0692

3.7/8"

2382-06124

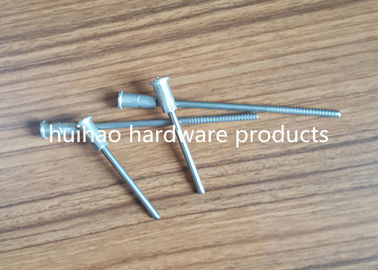

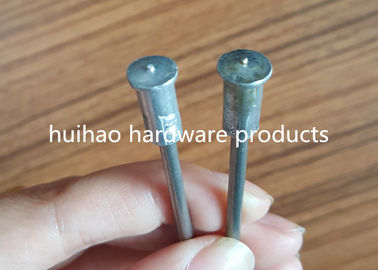

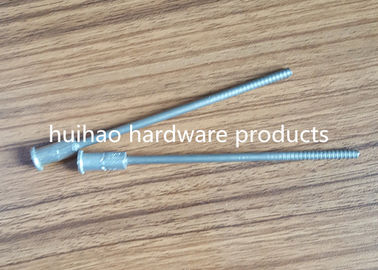

2. images of Aluminum Weld Base BIMetallic Insulation pins

Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm 0

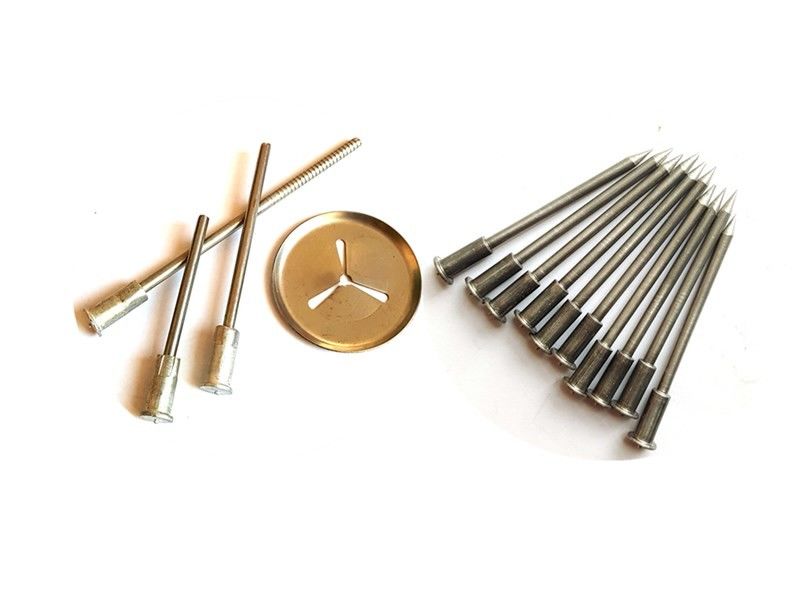

Parts - self locking washers



Round self locking washers are used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation in

place, simply press with self locking washer onto the pin up to the insulation until the desired position is reached, then clip off or bend

over the remaining portion of pin for a permanent attachment Round self locking washers are available as a matter of design or appli-

cation preference, The domed, multi-lanced hole design provides for ease of locating washer on pin and positive locking. Washers are

manufactured with a beveled edge to prevent the washer from cutting into the insulation facing.



Material
Shape
Diameter
Pin Diameter
Thickness
Package
Aluminum, Galvanized Steel
Round



22mm



10Ga, 12Ga, 14Ga
0.35mm
1000pcs/carton
Aluminum, Galvanized Steel
Round
28mm
10Ga, 12Ga, 14Ga
0.35mm
1000pcs/carton
Aluminum, Galvanized Steel
Round
30mm
10Ga, 12Ga, 14Ga
0.35mm
1000pcs/carton
Aluminum, Galvanized Steel
Round
35mm
10Ga, 12Ga, 14Ga
0.35mm
1000pcs/carton
Aluminum, Galvanized Steel
Round
38mm
10Ga, 12Ga, 14Ga
0.35mm
1000pcs/carton
Other size also could be customed.



Our production includes a full line of insulation fasteners:
Insulation fixing pins,Self adhesive insulation pins, Insulation hangers, Insulation anchors, Lacing anchor, Lacing ring
Cup head weld pins, Perforated base pins, Quilting pins&Duct liner pins, CD weld pins, Self locking washers & dome caps Insulation

Impaling Clips, drive pins


Certifications



Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm 1



FAQ


1. Your inquiry will be replied within 24hours
2. Well-trained and experienced staffs to answer all your inquiries.
3. All our products have 1-year warranties.
4. Competitive prices based on same quality.
5. Guarantee samples quality same as mass production quality.
