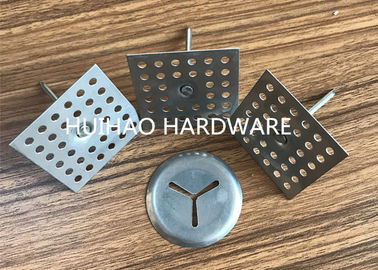

Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer

Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer

    • Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer
    • Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer
    • Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer
    • Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer
  • Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: insulation anchor pins

    Payment & Shipping Terms:

    Minimum Order Quantity: 3000pcs
    Packaging Details: 500pcs per carton, 48 cartons per pallet
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 300000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Galvanized Steel, Nail: Steel Nail, Aluminum Nail
    Base Type: Perforated Length: 15mm-250mm
    Pin Diameter: 10ga, 12ga, 14ga Base Size: 50mm X50mm



    Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer





    1. drawing of perforated insulation anchor pins



    Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer



    2.Specification of perforated type insulation anchor pins



    material pin dia base size length
    Galvanized steel ,ss , aluminum 12ga ( 0.106 " ) 2''X2'' 1/2"
    Galvanized steel ,ss , aluminum 12ga ( 0.106 " ) 2''X2'' 1"
    Galvanized steel ,ss , aluminum 12ga ( 0.106 " ) 2''X2'' 1-5/8"
    Galvanized steel ,ss , aluminum 12ga ( 0.106 " ) 2''X2'' 2"
    Galvanized steel ,ss , aluminum 12ga ( 0.106 " ) 2''X2'' 3-1/2"
    Galvanized steel ,ss , aluminum 12ga ( 0.106 " ) 2''X2'' 4 1/2"
    Galvanized steel ,ss , aluminum 12ga ( 0.106 " ) 2''X2'' 5 1/2"
    Galvanized steel ,ss , aluminum 12ga ( 0.106 " ) 2''X2'' 6"
    Galvanized steel ,ss , aluminum 12ga ( 0.106 " ) 2''X2''

    8"





    3. application of perforated insulation anchor pins



    Common size and usages of the Perforated Metal Insulation Spikes , Perforated Base Insulation Hangers:

    1-5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
    2-1/2": Used for 2" Fiberglass Rigid Board / Foam Board
    4-1/2": Used for 4" Fiberglass Rigid Board / R-13
    6-1/2": Used for R-19 Fiberglass Batt Insulation
    9-1/2": Used for R-30 Fiberglass Batt Insulation
    12-1/2": Used for R-38 Fiberglass Batt Insulation



     Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer



    Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is tile etc

    .Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and for the duct-lining



    Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer



    related product- self locking washer



    round self-locking washer, or speed clip, is made primarily in Mild Steel, with Standard Stainless and Aluminum sizes available. In several variations

    of round sizes, this insulation washer mounts on many types of insulation fasteners for capturing and holding insulation material in place. The gauge

    of the pin, or diameter, should match the fastener to be affixed, or "locked", onto. Popular diameters are 14 gauge, 12 gauge and 10 gauge---while

    overall, a wide variety of whole sizes are available in both standard and metric self-locking hole sizes which can range from 1/8" to 1/2".



    Diameter
    1
    1-3/16
    1-1/2
    1-1/2
    2"
    Nominal Thickness
    .015
    .015
    .015
    .015
    .015
    Stnd Material
    Galv
    Galv
    Galv
    Galv
    Galv
    Pack
    1000
    1000
    1000
    1000
    2000
    Approx. Wgt/1000
    4.2
    4.8
    8
    8
    14
    Other Materials
    S.S.
    S.S.
    S.S.





    Rock Wool Galvanized Steel Insulation Anchor pins With Round Self locking washer
