Home ProductsInsulation Anchor Pins

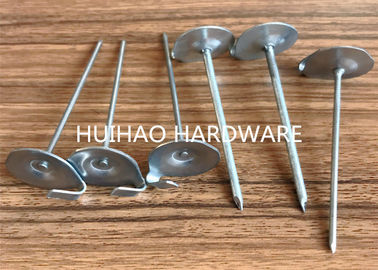

12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer

12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer

12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer
12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer

Product Details:

Place of Origin: China
Brand Name: Huihao
Certification: ISO9001-2008
Model Number: Lacing Anchors

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: paper carton + wood pallet
Delivery Time: 15 days after the payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500000 pcs per 15 days
Contact Now
Detailed Product Description
Material: Stainless Steel, Galvanized Steel Head: 7/16" Wide And 15/16" Length
Nail Diameter: 12ga Or 14ga As Standard Length: 2-1/2" Or 4-1/2" As Standard
Head Thickness: 1mm Application: Secure Lacing-anchor With Self Locking Washer.
SMALL ORDER: Available Sample: Available
High Light:

duct insulation pins

,

insulation anchors



12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer



The Stainless Steel Lacing Anchors,an insulation fastener, is a fabricated metal anchor consisting of a pin and tabbed,

or hooked, washer. Stainless steel is a popular material while this type lacing anchors is also made in mild steel.

Stamped "no ab" to denote 'no asbestos', the tabbed head is about an inch across, and 7/16" wide. The nail can be 12

gauge or 14 gauge in pin diameter. Typical application is for the fabrication of lacing blankets or removable covers with

the anchor assisting in fabricating the blanket plus providing a "seam edge" for lacing two sides of the finished insulation

blanket together including various blanket materials. This type anchor is somewhat more economical than the standard

Lacing anchor and also serves to eliminate weight in the overall removable cover or blanket.



>>>Specification Of The Metal Stainless Steel Lacing Anchors



Materials: stainless steel or galvanized steel
Pin Diameter: standard size is 12GA (2.7mm), 14GA(2.0mm), other sizes are available by special order.
Pin Length: 2-1/2" and 4-1/2" are standard. Other lengths available by special order.
Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.
Domed Caps can also be used to cover the tip of the nail.

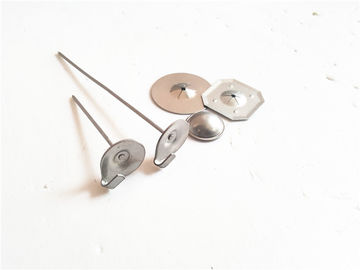

12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer 0



Nail Diameter Nail Length Head Wide Head Length
14 ga (.080) 2-1/2" 7/16" 15/16"
14 ga (.080) 4-1/2" 7/16" 15/16"
12 ga (.106) 2-1/2" 7/16" 15/16"
12 ga (.106) 4-1/2" 7/16" 15/16"
  • Wide choice of fasteners for removable insulation blanket
  • Provide strong, durable fixings even in elevated temperature applications
  • Available in galvanized steel and stainless steel
  • Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
  • Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

>>>Detailed Image Of The Stainless Steel Lacing Anchors



1) US standard
The head diameter is 1 inch,

the pin diameter is 10Ga,

the length we have 1/2inch, 3/4 inch, 7/8 inch, 1 inch, 1-1/8inch, 1-1/2 inch 2 inch
Products will be packed by bucket or packed per customer’s requirement etc
We usually pack the US standard weld pins by bucket we will pack different quantity for different size
Pallet size: 1100*1100mm
36 bucket on a pallet

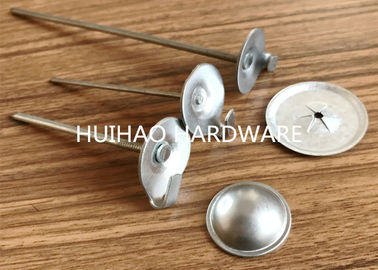

12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer 1



2) EU standard
The head diameter is 30mm,

the pin diameter is 2.7mm,

there are many different length for EU market,

the length we manufactured-22mm, 27mm, 28mm, 32mm 42mm, 48mm 58mm 60mm 100mm
Some customer will need kraft paper under head,

some customer will need a plastic sleeve on pin,

some customer will need both of them,

we can manufacture per customer’s requirement

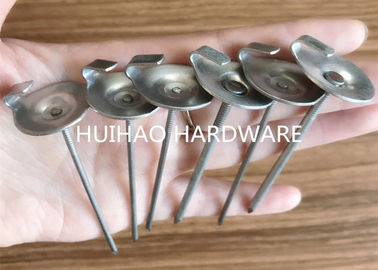

12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer 2



3) Australia standard
People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin.

The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.
Lacing anchors marked NO AB to notify the blanket is asbestos free
Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

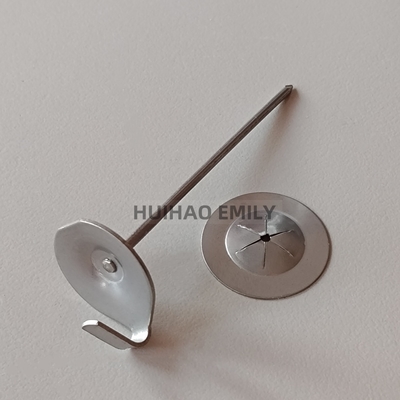

12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer 3





>>>Application Of The Stainless Steel Lacing Anchors

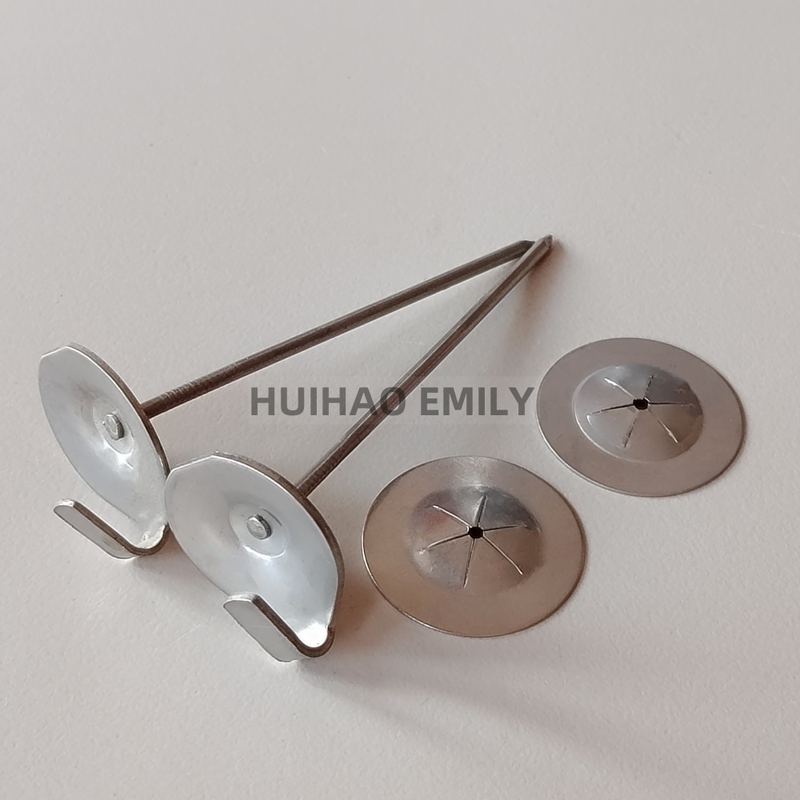

12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer 4

>>>Package Of The Lacing Anchors



1. length less than 65mm, 1000pcs per carton, 64 cartons per pallets.

2. length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.

3. length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.

4. or as your requirement
