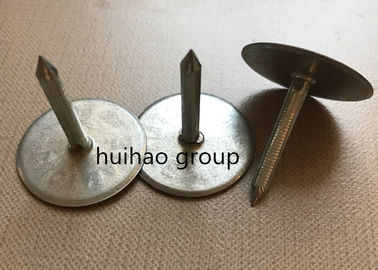

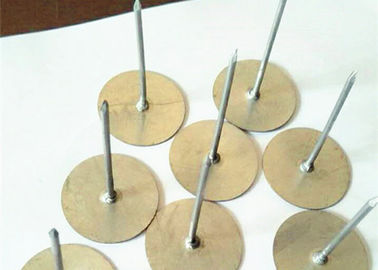

Galvanized Steel Cup Head Weld Pins , 12Ga Insulated anchor Pins With Paper Base

Galvanized Steel Cup Head Weld Pins , 12Ga Insulated anchor Pins With Paper Base

Galvanized Steel Cup Head Weld Pins , 12Ga Insulated anchor Pins With Paper Base
Galvanized Steel Cup Head Weld Pins , 12Ga Insulated anchor Pins With Paper Base

Product Details:

Place of Origin: China
Brand Name: Huihao
Certification: ISO9001
Model Number: Insulated anchor Pins

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: 1.500pcs per bag, 10 bags per carton.72 cartons per pallet 2.1000pcs per carton, 48 cartons per pallet. 3. to be your requirements
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 500000 pcs per 15 days
Contact Now
Detailed Product Description
Material: Carbon Steel Finished: Galvanized Steel
Pin Diameter: 12Ga Head Diameter: 25mm Or 30mm , Etc
Pin Length: 30mm,50mm, 80mm Etc Sample: Available
High Light:

duct insulation pins

,

insulation anchors



Galvanized Steel Cup Head Weld Pins, 12Ga Insulated anchor Pins



>>> Introduction of the cup head weld  anchor pins



This type of cup head Capacitor Discharge (CD) weld pins are welded through the insulation, allowing the fabrication to be done in

one easy step. The head of the pin is attached to the nail, so there is no need to add a washer. It reduces the labor time by making

a neat, finished appearance.



>>>Specification of  the  cup head weld anchor pins



Galvanized Steel Cupped Head 38mm , Mini Cupped Head CD Weld Pins 12Gauge Dia



Cup head weld anchor pins



Material Length Pin Diameter Head Diameter
Galvanized Steel 3/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 3/4" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 7/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-1/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-1/4" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-5/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 1-7/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 2-1/8" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 2-1/4" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 2-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 3" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 3-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 4" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 4-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 5" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 5-1/2" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 6" 12Ga (2.7mm) 1-1/2" (38mm)
Galvanized Steel 8" 12Ga (2.7mm) 1-1/2" (38mm)



MATERIAL PIN WASHER
LOW CARBON STEEL LOW CARBON STEEL
C - 0.23% max P - 0.04% max. C - 0.23% max P - 0.04% max.
Mn - 0.90% max. S - 0.05% max Mn - 0.90% max. S - 0.05% max
MECHANICAL PROPERTIES Values available upon request Values available upon request
PLATING Standard Pin is Galvanized Standard Washer is Galvanized

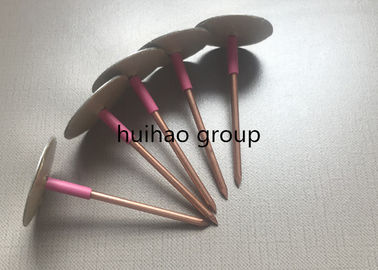

Copper Plated is available
BEVEL Washer edge is beveled to prevent cutting of insulation material
STAINLESS STEEL Not standard, but available by special order

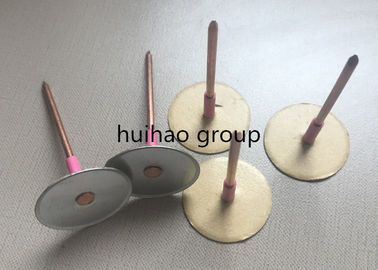

PAPER INSULATING WASHERS Available, upon request, for welding through foil faced insulation



Application of weld insulation anchor pins


1: Position insulation
2: Press cup head pin through insulation
3: Weld in place to complete installation



Galvanized Steel Cup Head Weld Pins , 12Ga Insulated anchor Pins With Paper Base 0



>>> Package



1.500pcs per bag, 10 bags per carton.72 cartons per pallet

2.1000pcs per carton, 48 cartons per pallet.

3. to be your requirements



Galvanized Steel Cup Head Weld Pins , 12Ga Insulated anchor Pins With Paper Base 1
