Galvanized Steel M8X110mm Insulation Fixing Pins , Metal Anchor Wall Plugs

Galvanized Steel M8X110mm Insulation Fixing Pins , Metal Anchor Wall Plugs

    • Galvanized Steel M8X110mm Insulation Fixing Pins , Metal Anchor Wall Plugs
    • Galvanized Steel M8X110mm Insulation Fixing Pins , Metal Anchor Wall Plugs
    • Galvanized Steel M8X110mm Insulation Fixing Pins , Metal Anchor Wall Plugs
    • Galvanized Steel M8X110mm Insulation Fixing Pins , Metal Anchor Wall Plugs
  • Galvanized Steel M8X110mm Insulation Fixing Pins , Metal Anchor Wall Plugs

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001:2008
    Model Number: Metal Anchor Wall Plugs

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Expansion Insulation Fixing Pins : 250pcs per paper box +48 boxes per wooden pallets
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100,000 pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Metal Anchor Wall Plugs Material: Galvanized Steel , Stainless Steel
    Pin Dia: 8mm Pin Length: 80mm,90mm,110mm,140mm,etc
    Perforated Head Size: 35mm Or 30mm Material Thickness: 0.7mm



    Galvanized Steel M8X110mm Insulation Pins, Metal Anchor Wall Plugs


    Metal anchor wall plugs  for fastening rigid insulation to masonry. It is as simple as drilling straight through the insulation

    into the masonry and hammer the insulation fixing home. The 35mm diameter head allows the load to be spread over a larger area.


    Detail data of the Metal Anchor Wall Plugs



    Data of the Metal Anchor Wall Plugs



    Pin Size Pin Dia Pin Length Plate Size Plate Thickness Pin Weight
    M8x50 8mm 50mm 30mm / 35mm  0.7mm 10.2g
    M8x60 8mm 60mm 30mm / 35mm 0.7mm 11.2g
    M8x90 8mm 90mm 30mm / 35mm 0.7mm 14.8g
    M8x110 8mm 110mm 30mm / 35mm 0.7mm 17.3g
    M8x140 8mm 140mm 30mm / 35mm 0.7mm 20.8g
    M8x170 8mm 170mm 30mm / 35mm 0.7mm 24.4g
    M8x230 8mm 230mm 30mm / 35mm 0.7mm 34.4g



    insulation fixings have a 35mm perforated head. A dome-shaped reinforcing centre is attached to a patented precise pitch

    Thor Helical shank to corkscrew into a variety of building materials including concrete, brick, perforated brick, Thermalite

    block.metal anchor wall plug are suitable for fixing mineral wool insulation to masonry walls and concrete soffit boards in all

    applications where fire-resistance is required. Also metal anchor wall plug suitable for fixing Kingspan or Celotex panels

    where external wall insulation includes rendalath, expamet or other mesh types. fixings are available in 304 grade Stainless Steel.

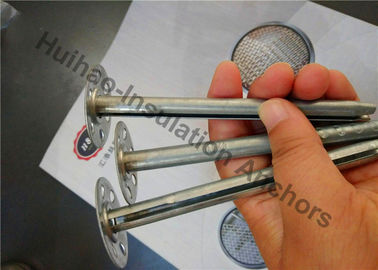

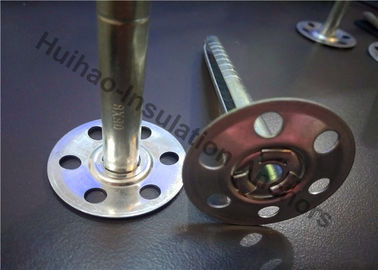

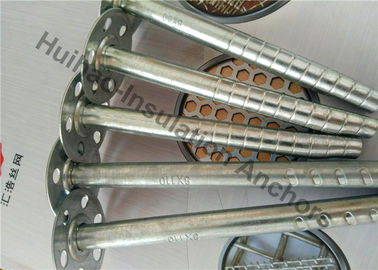

    Images of Metal Anchor Wall Plugs



    Galvanized Steel M8X110mm Insulation Fixing Pins , Metal Anchor Wall Plugs


    Advantages of the Expansion Insulation Fixing Pins


    Quick and simple hammerset installation saves work
    No additional screws or nails.
    Fire protection


    Application of the Expansion Insulation Fixing Pins


    Expansion Insulation Fixing Pins are suit for concrete, natural stone with dense structure, solid brick, solid sand-lime brick,

    solid block made from lightweight concrete, aerated concrete, vertically perforated brick, perforated sand-lime brick etc.


    Fixed either manually using a conventional hammer or driven home using a hammer drill fitted with an SDS adapter.

    The anchor has a wide integral washer-like retaining head making it quick and easy to fix, with or without pilot holes.

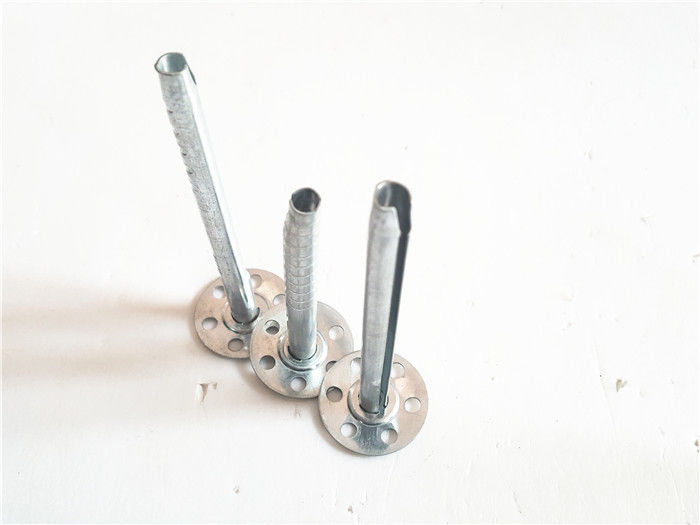

    Galvanized Steel M8X110mm Insulation Fixing Pins , Metal Anchor Wall Plugs


    110mm insulation fixings for 40-70mm insulation boards
    145mm insulation anchors for 75-105mm insulation slabs
    170mm fireproof fixings for 105-130mm insulation panels
    200mm metal fasteners for 135-160mm insulation boards
