2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors

2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors
2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors 2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors 2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors 2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors

Large Image :  2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: iso9001-2008
Model Number: Slim Lacing Anchors
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: paper carton + wood pallet
Delivery Time: 15 days after the payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500000 pcs per 15 days

2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors

Description
Material: Stainless Steel, Galvanized Steel Head: 7/16" Wide And 15/16" Length
Nail Diameter: 12ga Or 14ga As Standard Length: 2-1/2" Or 4-1/2" As Standard
Head Thickness: 1mm Application: Secure Lacing-anchor With Self Locking Washer.
High Light:

rockwool insulation pins

,

duct insulation pins



12 Gauge Or 14 Gauge Dia Stainless Steel Slim Lacing Anchors



The slim style lacing anchor, an insulation fastener, is a fabricated metal anchor consisting of a pin and tabbed, or hooked,

washer. Stainless steel is a popular material while this type lacing anchors is also made in mild steel.  the tabbed head is

about an inch across, and 7/16" wide.



>>>Specification Of The Slim Lacing Anchors

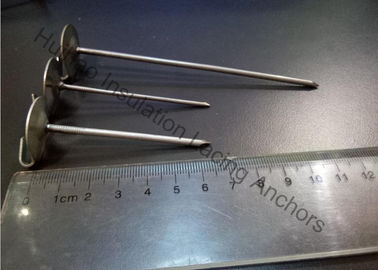

2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors 0



Nail Diameter Nail Length Head Wide Head Length
14 ga (.080) 2-1/2" 7/16" 15/16"
14 ga (.080) 4-1/2" 7/16" 15/16"
12 ga (.106) 2-1/2" 7/16" 15/16"
12 ga (.106) 4-1/2" 7/16" 15/16"
  • Wide choice of fasteners for removable insulation blanket
  • Provide strong, durable fixings even in elevated temperature applications
  • Available in galvanized steel and stainless steel
  • Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
  • Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

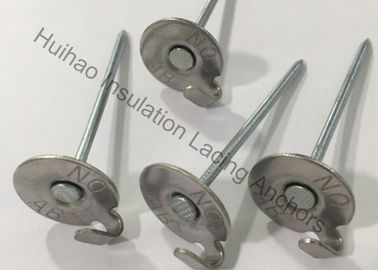

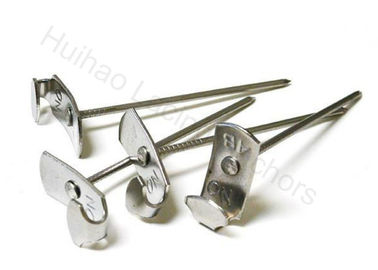

>>>Detailed Image Of The hook head Slim Lacing Anchors



2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors 1

 US standard Slim Lacing Anchors

EU standard slim lacing anchors



AU standard  slim lacing anchors

The head diameter is 1 inch,

the pin diameter is 10Ga,

the length we have 1/2inch, 3/4 inch, 7/8 inch, 1 inch, 1-1/8inch, 1-1/2 inch 2 inch


The head diameter is 30mm,

the pin diameter is 2.7mm,

there are many different length for EU market,

the length we manufactured-22mm, 27mm, 28mm, 32mm 42mm, 48mm 58mm 60mm 100mm
Some customer will need kraft paper under head,

some customer will need a plastic sleeve on pin,

some customer will need both of them,

14Ga pin.

The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.
Lacing anchors marked NO AB to notify the blanket is asbestos free
Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

US pcaking standard

EU packing standard

AU packing standard

Pallet size: 1100*1100mm
36 bucket on a pallet
Pallet size: 1100*1100mm
36 bucket on a pallet
Pallet size: 1100*1100mm
36 bucket on a pallet





>>>Application Of The Stainless Steel Lacing Anchors

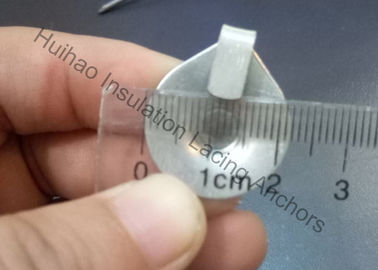

2-1 / 2" Insulation Fixing Pin, 14 Gauge Dia Stainless Steel Slim Lacing Anchors 2

>>>Package Of The Lacing Anchors



1. length less than 65mm, 1000pcs per carton, 64 cartons per pallets.

2. length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.

3. length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.

4. or as your requirement
