2-1 / 2” Stainless Steel Lacing Insulation Anchor Pins For Fastening Lagging To Exhaust Systems

2-1 / 2” Stainless Steel Lacing Insulation Anchor Pins For Fastening Lagging To Exhaust Systems

2-1 / 2” Stainless Steel Lacing Insulation Anchor Pins For Fastening Lagging To Exhaust Systems
2-1 / 2” Stainless Steel Lacing Insulation Anchor Pins For Fastening Lagging To Exhaust Systems

Product Details:

Place of Origin: China
Brand Name: Huihao
Certification: iso9001-2008
Model Number: Stainless Steel Lacing Anchors

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: paper carton + wood pallet
Delivery Time: 15 days after the payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500000 pcs per 15 days
Contact Now
Detailed Product Description
Material: Stainless Steel, Galvanized Steel Head: 7/8" As Standard
Spindle Dia: 12ga Or 14ga As Standard Length: 2-1/2" Or 4-1/2" As Standard
Head Thickness: 1mm Application: Secure Lacing-anchor With Self Locking Washer.
Type: Punched Small Order: Available
High Light:

duct insulation pins

,

insulation anchors



2-1/2” Stainless Steel Lacing Anchors For Fastening Lagging To Exhaust Systems



2-1/2” Stainless steel lacing anchors are primarily used as the means of fastening lagging to exhaust systems (tie wire as the lacing material).

Lacing anchors can be used to add additional support to existing lagging, or used with other raw insulation material. Lacing anchors are

manufactured in nail point configuration, and are 12G in diameter. To secure to lagging it is recommended that 12G self-locking washers- oblong

or round- be used.



>>>Specification Of The Metal Lacing Anchors



D C L
14 ga (.080) 7/8" 2-1/2"
14 ga (.080) 7/8" 4-1/2"
12 ga (.106) 7/8" 2-1/2"
12 ga (.106) 7/8" 4-1/2"
  • Wide choice of fasteners for removable insulation blanket
  • Provide strong, durable fixings even in elevated temperature applications
  • Available in galvanized steel and stainless steel
  • Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
  • Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

>>>Detailed Image Of The Stainless Steel Lacing Anchors

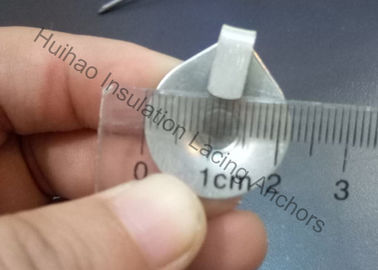

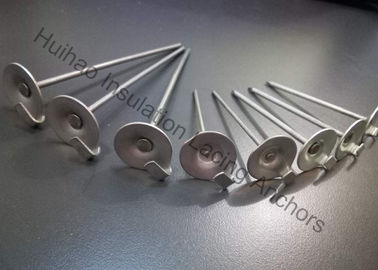

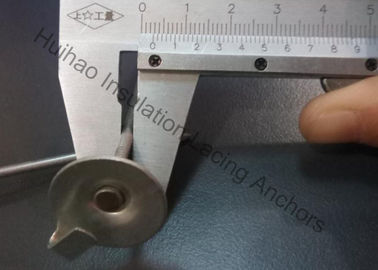

US standard lacing anchor EU  standard lacing anchor AU standard lacing anchor
2-1 / 2” Stainless Steel Lacing Insulation Anchor Pins For Fastening Lagging To Exhaust Systems 0 2-1 / 2” Stainless Steel Lacing Insulation Anchor Pins For Fastening Lagging To Exhaust Systems 1 2-1 / 2” Stainless Steel Lacing Insulation Anchor Pins For Fastening Lagging To Exhaust Systems 2

The head diameter is 1 inch,

the pin diameter is 10Ga,

the length we have 1/2inch, 3/4 inch, 7/8 inch, 1 inch, 1-1/8inch, 1-1/2 inch 2 inch

The head diameter is 30mm,

the pin diameter is 2.7mm,

there are many different length for EU market,

the length we manufactured-22mm, 27mm, 28mm, 32mm 42mm, 48mm 58mm 60mm 100mm
Some customer will need kraft paper under head

The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.

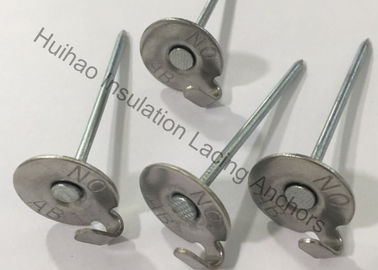

Lacing anchors marked NO AB to notify the blanket is asbestos free
Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

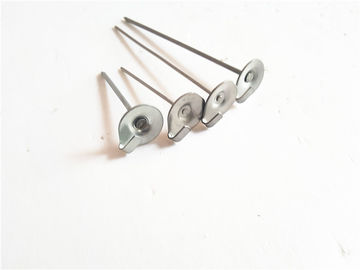

>>>Application Of The Lacing Anchors



2-1 / 2” Stainless Steel Lacing Insulation Anchor Pins For Fastening Lagging To Exhaust Systems 3

>>> Related Products



Self-locking washers and dome caps can be used to cover the top of the metal lacing anchors.



Round Self Locking Washers



Material: stainless steel or galvanized steel or aluminum

Size: 1" or 1-3/16" or 1-1/2" or 2"

Thickness: 28ga (0.4mm)

Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.



Diameter: 1" 1-3/16″ 1-1/2”
Thickness: 0.015" 0.015" 0.015"
Plating: Galvanized Galvanized Galvanized
Material: Mild Steel /SS 304 Mild Steel /SS 304 Mild Steel /SS 304
Edge: Beveled or Flat Beveled or Flat Beveled or Fla

Square Self-Locking Washers



Material: stainless steel or galvanized steel or aluminum

Thickness: 28ga (0.4mm)

Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.



Pin Diameter 2-1/2" 1-1/2" 1-1/4" 1-1/2"
14 Ga (2mm) square square square round
12 Ga square square square round
10 Ga square square square round
3mm square square square round



Dome Cap Washers



Dome washers are designed to be used where appearance and safety are factors when installing insulation, or fabricating

blankets or pads. The washers are used to cover the nail point on weld pins, hangers, lacing anchors

& quilt pins.



Material

galvanized, aluminum and stainless steel

Finish:

brushed aluminum, white plastic coating, black plastic coating etc

A:

20mm,22mm,25mm,30mm,38mm

B:

10 Ga Or 12 Ga Or 14 Ga

C:

9/32" (7.2mm)



Packing of the Lacing anchors:



Cartons+pallets in common, also could be packing accoring to the customer's requirements.

2-1 / 2” Stainless Steel Lacing Insulation Anchor Pins For Fastening Lagging To Exhaust Systems 4
