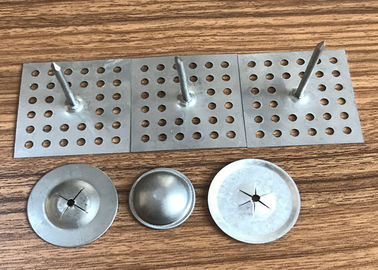

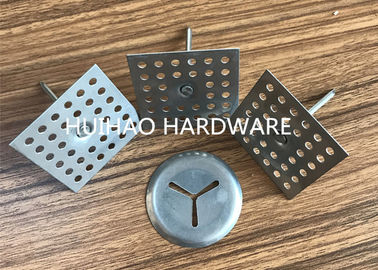

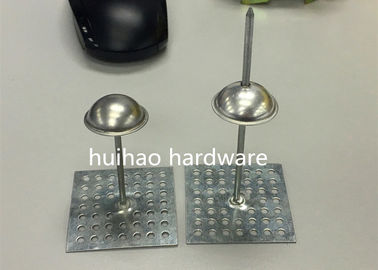

SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps

SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps
SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps
SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps

Large Image :  SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: ISO
Model Number: Insulation Anchor Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Insulation anchor Pins1. length less than 65mm, 1000 pcs per carton, 64 cartons per pallet. 2.length less than 120mm, 500pcs per carton, 64 cartons per pallet. 3. others to be your requirements.
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 300000 pcs per 20 days

SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps

Description
Product Name: Insulation Anchor Pins Type: Perforated Base Type
Material: Stainless Steel , Galvanized Steel, Aluminum Application: Fixing Rock Wool,Sound Absorbing Fabrics
Pin Length: 15mm-200mm Pin Thickness: 2.7mm,3mm
High Light:

rockwool insulation pins

,

duct insulation pins



SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps


Description of insulation anchor pins/ insulation hangers
___________________________________________________________________________

Perforated base insulation anchors pins , also named insulation hangers, insulation pins, insulation spindle and

insulation support. it is made of square perforated base and metal spindles/nails.

perforated base insulation anchor pins,There are two installation methods, one fix with adhesive, and the other is to

use drive nails or cement nails.

Specification of perforated base insulation anchor pins
____________________________________________________________________________

1. material Grade: SUS201,SUS304,SUS316, galvanized steel,aluminum for the perforated base washer
aluminum grade 1100 , anneal mild steel or anneal stainless steel wire for the pins of anchors

2. production Standard: DIN 315

3.Single insulation nail bearing capacity> 0.8KN
   Thermal conductivity >0.004



Product Name
Insulation anchor Pins, insulation hangers
plate size
30mm,40mm,50mm
plate thickness
0.4mm-0.5mm
pin length
15mm-180mm
pin diameter
2.0mm-3mm
washer diameter
25mm-50mm
washer thickness
0.3mm-0.6mm


Insulation anchor Pins Usage:
__________________________________________________________________________
Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing

works,and for the duct-lining. ss insulation pins also used in car , Subway and high-speed train.

Insulation anchor Pins is with high penetration strength with all types of thermal insulation boards, suitable for brick
and conrete walls.

The average of 1-10 layers is 6 per square meter, the average of 11-20 layers is 7 per square meter, and the 21-26 layers

are 9 per square meter. Any single-plate wrench with an area greater than 0.1 square meter must be anchored, depending

on the shape and site conditions. At the corners of the sun, under the mouth, around the edge of the hole, the density of the

anchor should be increased, the distance is not more than 300 mm, not less than 60 mm from the edge of the base.

Insulation anchor Pins cover: Protect people hand from being injured when putting insulation.

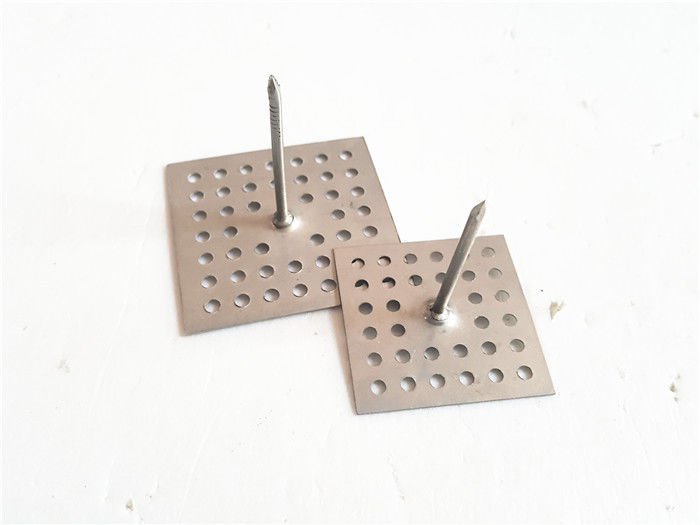

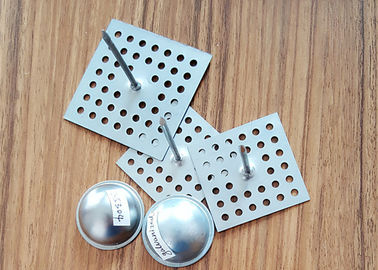

images of insulation anchor pins
_____________________________________________________________________________________

SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps 0

SS Perforated Base Insulation Anchor Pins, Insulation Hangers With Dome Caps 1

Advantages of Huihao company
__________________________________________________________________________________
 1.Accept small orders of more than 5000.
 2.Free samples are available, and for special specifications, the customer is required to pay the mold fee.  3.Provide installation instructions.
 4.Standard export packaging, easy to load and unload at the same time sturdy and clean.
 5.Provide customer customs clearance documents and certificate of origin,CO, FORM E, FORM A  and others.
 6.Quality Assurance, ISO9001-2008, CE, SAS, BV, Material Certification, Product Inspection Report, Performance Parameters.
 7.Duration guarantee, 80 excellent CNC equipment
