Home ProductsInsulation Anchor Pins

Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication

Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication

    • Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication
    • Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication
    • Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication
    • Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication
  • Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: iso9001-2008
    Model Number: Lacing ring system

    Payment & Shipping Terms:

    Minimum Order Quantity: 30000sets
    Packaging Details: 500 sets per bag, 4 bags per cartons
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000000 psc per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304, 316 Ring Size: 3x30mm
    Washer Size: 1mmx38mm Hook Size: 30mmx1mmx11mm
    Application: Fixing Fabrication Key Word: Lacing Hook System
    Small Order: Available Sample: Available
    High Light:

    rockwool insulation pins

    ,

    insulation anchors



    Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication



    Lacing Ring washer system and lacing hook system are used for securing and tying removable insulation blankets, work with Lacing washers to

    fasten the insulation. Install the lacing hook with wire, secure with lacing washer, use lacing wire to fasten the insulation through the lacing hooks.

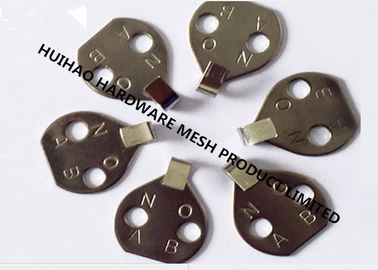

    Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication 0



    Specification of stainless steel lacing Hook:



    22mm head diamter,  lacing hook material thickness 1mm, hook length 11mm



    Specification of stainless steel lacing washer:



    material thickness: 0.5mm-1mm, type: round plate with two holes ; diameter:25mm-40mm



    specification of stainless steel lacing ring



    Wire diameter
    inter diameter
    SWL(KG)
    BL(KG)
    3MM
    15MM-40MM
    162
    650
    4MM
    20MM-40MM
    250
    1000
    5MM
    25MM-65MM
    500
    2000
    6MM
    25MM-90MM
    800
    2700
    8MM
    30MM-100MM
    1250
    3200
    9MM
    30MM-90MM
    1500
    5000
    10MM
    40MM-100MM
    2125
    6200
    12MM
    50MM-140MM
    2500
    10000
    13MM
    55MM-160MM
    2875
    11500



    Application of Stainless steel Lacing Hook Systems

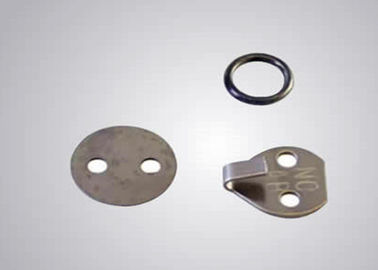

    Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication 1

    Lacing Hook and Two-Hole Washer System provides an even lower cost and the same easy-to-lace design. The tie wire application provides more

    blanket flexibility with equally secure performance. The Series 80 Lacing Hook is similar in function and appearance to the  Lacing Anchors. The

    Series 80 Lacing Hook is stocked in mild steel, cadmium plated and stainless steel. All Series 80 Lacing Hooks are stamped “NO AB” to indicate no

    asbestos at no additional cost.



    Application of stainless steel lacing ring & washer system

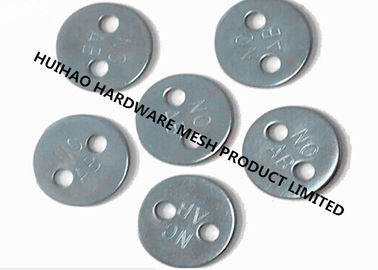

    Insulation Lacing Ring Washer Syatem , Lacing Hook System For Fixing Fabrication 2



    Lacing Washer can also be used with a Lacing Ring and a second L100 lacing washer, which are fastened to the insulation blanket with a tie wire.

    One advantage with the lacing system is the positive detention of the lacing wire. The insulation blanket can be loosened for access or repositioning,

    without having to worry about the lacing wire falling away from the hooks. It is also advantageous in maintaining the position of the lacing wire when

    insulating complex shapes. All L100 Lacing Washers are stamped “NO AB” to indicate no asbestos, at no additional cost.
