Product Details:
|
| Material: | Stainless Steel 304 304L 316 316L | HEAD: | 20MM |
|---|---|---|---|
| Length: | 30-250MM | PIN: | 14-10GA |
| Small Order: | Available | Sample: | Available |
| High Light: | duct insulation pins,insulation anchors |
||
>>>Specification Of The Lacing anchors
Materials:Low Carbon Steel,Stainless Steel
Mechanical Properties:Low Carbon Steel,Available by special order only.
Stainless Steel,Available by special order only.
Plating:Zinc plating is standard - Low Carbon Steel,Does not apply to stainless - Stainless Steel
| Nail Diameter | Nail Length | Head Wide | Head Length |
| 14 ga (.080) | 2-1/2" | 7/16" | 15/16" |
| 14 ga (.080) | 4-1/2" | 7/16" | 15/16" |
| 12 ga (.106) | 2-1/2" | 7/16" | 15/16" |
| 12 ga (.106) | 4-1/2" | 7/16" | 15/16" |

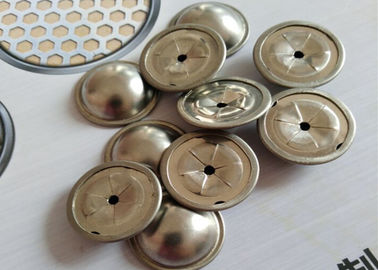

lacing anchor parts- Self Locking Dome Caps:
Material: Stainless Steel AISI 304 With Stainless Steel Insert
The "capped speed washer", or dome cap, provided by MIDWEST Fasteners is a two element self-locking washer. This type
of insulation washer consists of a spring clip retaining washer covered by an outer “cap”. This type insulation cap is has become
popular in insulation applications where cosmetics and/or personnel protection have importance. Available to mate and hold on
various weld pins and insulation anchors, the capped washer is usually made in 14 gauge, 12gauge and 10 gauge hole sizes.
Finishes often match insulation materials in use, with bright aluminum popular; but various color choices also are presented with
white finish in stock, and other colors available.
| B | A | C |
| 14 Ga (2mm) | 7/8" (22mm) | 9/32" (7.2mm) |
| 12 Ga (2.7mm) | 7/8" (22mm) | 9/32" (7.2mm) |
| 10 Ga | 7/8" (22mm) | 9/32" (7.2mm) |
| 3mm | 7/8" (22mm) | 9/32" (7.2mm) |

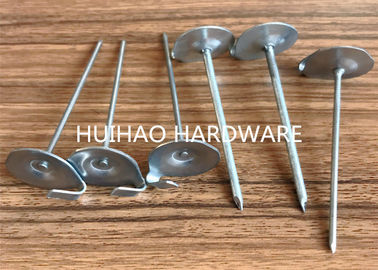

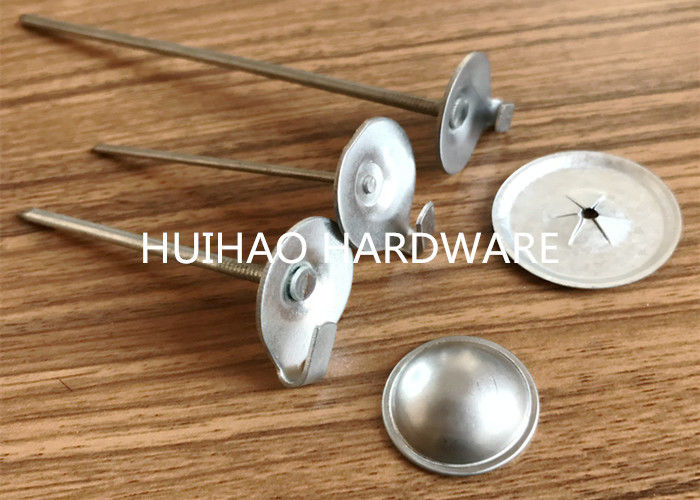

images of lacing anchor and dome cap washer
