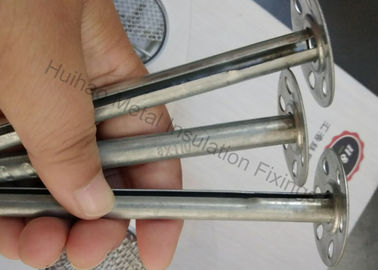

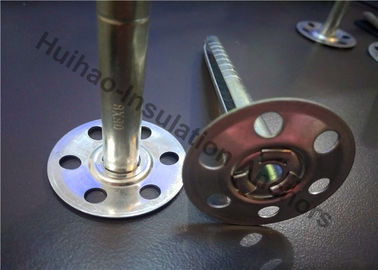

Galvanized Steel Rock Wool Insulation Anchor pins With 35mm Round Washer Base

    • Galvanized Steel Rock Wool Insulation Anchor pins With 35mm Round Washer Base
    • Galvanized Steel Rock Wool Insulation Anchor pins With 35mm Round Washer Base
    • Galvanized Steel Rock Wool Insulation Anchor pins With 35mm Round Washer Base
    • Galvanized Steel Rock Wool Insulation Anchor pins With 35mm Round Washer Base
  • Galvanized Steel Rock Wool Insulation Anchor pins With 35mm Round Washer Base

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO
    Model Number: Insulation anchor Pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Galvanized Rock Wool Insulation anchor Pins length15mm-25mm, 2000pcs per carton, 48cartons per pallet. length 30mm-80mm, 500pcs per carton, 48 cartons per pallet. length 90mm-120mm, 25pcs per carton, 48 cartons per pallet
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union, paypal
    Supply Ability: 100000 pcs per 10 days
    Contact Now
    Detailed Product Description
    Name: Rock Wool Insulation Anchor Pins Type: 8x110mm
    Application: Plasterboard Walls Material: Galvanized Steel, Stainless Steel
    Small Order: Available Sample: Support



    Galvanized Steel Rock Wool Insulation Anchor pins With 35mm Round Washer Base



    1)Galvanized Rock Wool Insulation anchor Pins



    Material: Stainless steel/galvanized steel



    the Galvanized Rock Wool Insulation anchor Pins specification as follows:



    A+-0.10

    C+-0.30

    D+-0.30

    F+-0.50

    G+-0.3

    H+-0.2

    I+-0.5

    J+-0.2

    K+-0.1

    M+-0.5

    0.70

    9.10

    8.80

    7.50

    1.90

    35.00

    3.00

    4.80

    5.20

    17.00

    O+-0.2

    P+-0.2

















    10.00

    7.40

















    SIZE

    B+-1.00

    E+-1.00

    SIZE

    B+-1.00

    E+-1.00

    SIZE

    B+-1.00

    E+-1.00

    8X50

    50

    40

    8X140

    140

    110

    8X220

    220

    125

    8X60

    60

    47

    8X150

    150

    110

    8X240

    240

    125

    8X80

    80

    68

    8X170

    170

    120

    8X300

    300

    125

    8X90

    90

    70

    8X185

    185

    120







    8X110

    110

    80

    8X200

    200

    120





    Galvanized Rock Wool Insulation anchor Pins Application: It is fixed on the position where there is significant wind-suction-force

    or if the height is more than 20m or if the finishing coat is tile etc



    Galvanized Rock Wool Insulation anchor Pins Expansion nail is with high penetration strength with all types of thermal

    insulation boards, suitable for brick and conrete walls.



    Galvanized Rock Wool Insulation anchor Pins advantages

    ·Suitable for all kinds of wall
    ·High pull-off strength for a higher security of the system
    ·Low thermal conduction addition value to avoid thermal bridge
    ·Galvanized layer on the steel nail to protect the nail from alkali



    Galvanized Steel Rock Wool Insulation Anchor pins With 35mm Round Washer Base



    2)Mechanical insulation anchor pins with plastic plug and glass filled nylon drive pin.



    Anchors polystyrene and rigid foam insulation board to concrete, bricks & blocks,

    Drill a 10mm diameter hole, push anchor through the insulation and embed at least 30mm into base material.

    Drive in the glass-reinforced pin to provide a mechanical expansion connection. The 50mm diameter head features

    large perforations to provide a good key for external wall insulation render systems



    This universal insulation anchor is available in lengths ranging from 70mm to 180mm long and is sold in boxes

    of 250 fixings at unbeatable prices. Use;

    • 70mm insulation fasteners for 20-40mm insulation panels
    • 90mm insulation fasteners for 40-60mm insulation boards
    • 110mm insulation anchors for 60-80mm insulation slabs
    • 130mm insulation anchors for 80-100mm insulation slabs
    • 150mm insulation fixings for 100-120mm insulation slabs
    • 180mm insulation fixings for 120-150mm insulation boards
