Product Details:
|
Product Name: | Insulation Anchor Pins | Type: | Perforated Base Type |
---|---|---|---|
Material: | Stainless Steel , Galvanized Steel, Aluminum | Application: | Fixing Rock Wool,Sound Absorbing Fabrics |
Pin Length: | 15mm-200mm | Pin Thickness: | 2.7mm,3mm |
High Light: | duct insulation pins,insulation anchors |
1. Grade: SUS201,SUS304,SUS316, galvanized steel,aluminum
2. Standard: DIN 315
3. Certification: ISO9001, SGS
Product Name
|

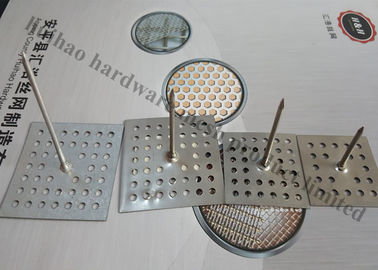

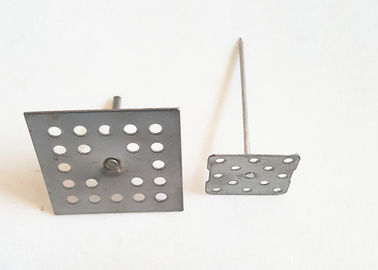

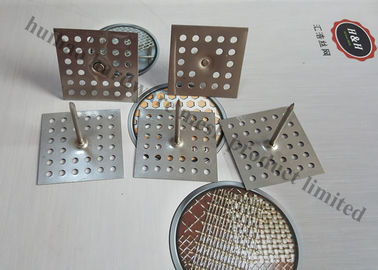

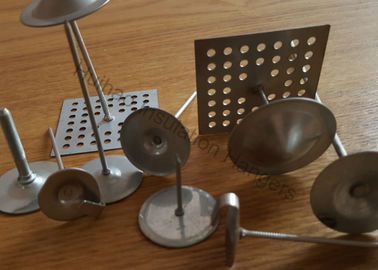

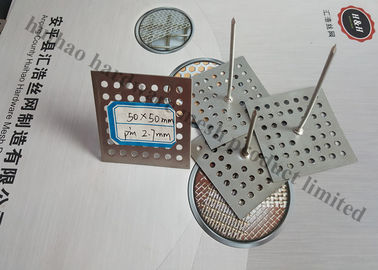

Perforated Base Insulation anchor Pins |
Material
|
stainless steel, galvanized dteel, aluminum for pins
|
base size
|
square type- 40 mm and 50 mm |
base thickness
|
0.4mm-0.5mm
|
pin length
|
15 mm - 203 mm in common |
pin diameter
|
2.5 mm , 2.7 mm, 3.0 mm in common |
washer diameter
|
30 mm in standard |
washer thickness
|
0.4 mm in standard
|
Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing
works, and for the duct-lining
·Suitable for all kinds of wall
·High pull-off strength for a higher security of the system
·Low thermal conduction addition value to avoid thermal bridge
·Galvanized layer on the steel nail to protect the nail
