Product Details:
|
| Name: | 200 Monel Mesh | ||
|---|---|---|---|
| High Light: | 200 Monel Mesh,0.1mm Thick Monel Mesh,Oxygen Production Monel Wire Mesh |
||
Monel series materials include Monel400,Monel401, Monel404, MonelR405 and Monel K-500. The most popular monel mesh is made of Monel 400 or Monel K-500.
|
Monel Wire Mesh
|
||
|
Mesh
|
Wire Diameter (mm)
|
Aperture (mm)
|
|
2
|
1.80
|
10.90
|
|
3
|
1.60
|
6.866
|
|
4
|
1.20
|
5.15
|
|
5
|
0.91
|
4.17
|
|
6
|
0.80
|
3.433
|
|
8
|
0.60
|
2.575
|
|
10
|
0.55
|
1.990
|
|
12
|
0.50
|
1.616
|
|
14
|
0.45
|
1.362
|
|
16
|
0.40
|
1.188
|
|
18
|
0.35
|
1.060
|
|
20
|
0.30
|
0.970
|
|
26
|
0.28
|
0.696
|
|
30
|
0.25
|
0.596
|
|
40
|
0.21
|
0.425
|
|
50
|
0.19
|
0.318
|
|
60
|
0.15
|
0.273
|
|
70
|
0.14
|
0.223
|
|
80
|
0.12
|
0.198
|
|
90
|
0.11
|
0.172
|
|
100
|
0.10
|
0.154
|
|
120
|
0.08
|
0.132
|
|
140
|
0.07
|
0.111
|
|
150
|
0.065
|
0.104
|
|
160
|
0.065
|
0.094
|
|
180
|
0.053
|
0.088
|
|
200
|
0.053
|
0.074
|
|
Weave Pattern
|
Plain weave, twill weave, dutch weave
|
|
|
Monel is a kind of nickel alloy.It has high strength and excellent corrosion resistance in a range of acidic and alkaline sitrations and especially sutiable for reducing conditions.It also has good ductility and thermal conductivity
|
|
Applications
|
marine engineering,chemical and hydro-carbon processing equipment,heat exchangers,valves,pumps
|
|
|

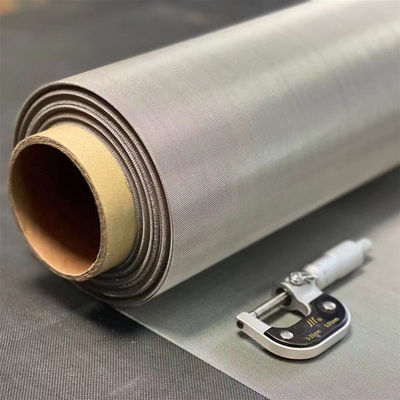

inside the roll with"paper tube"to reduce the pressure while loading;then wrapped with"plastic film"as well as the "woven bag"on the finished roll,final loaded in the strong woodencase
|
|
Material
|
C
|
Mn
|
Si
|
S
|
Ni
|
Cu
|
Fe
|
|
Monel 400
|
≤0.30
|
≤2.00
|
≤0.50
|
≤0.024
|
≥63
|
28.0~34.0
|
≤2.5
|
Monel 400 Wire Mesh significantly resists de-aerated hydrochloric acid and hydrofluoric acids. It provides broad resistance to stress corrosion cracking in the fresh water and other corrosion conditions. It shows intense mechanical features at the subzero temperatures and firmness and toughness. It doesn't exhibit ductile to brittle transformation when quenched to fluid hydrogen temperature level.
|
Material
|
C
|
Mn
|
Si
|
S
|
Ni
|
Cu
|
Ti
|
AL
|
Fe
|
|
Monel k-500
|
≤0.25
|
≤1.50
|
≤0.05
|
≤0.01
|
≥63
|
27.0~33.0
|
0.35~0.85
|
2.30~3.15
|
≤2.0
|
Monel K500 Wire Mesh offers excellent resistance to corrosion as well as large strength and hardness. The strength of this alloy is retained up to 1200oF however it shows ductility and toughness up to 400oF. It has very high melting temperature of 2400oF to 2460oF. The Monel K500 alloy has almost three times higher yield strength and tensile strength as compare to Monel 400 mesh.
