Product Details:
|
| Product Name: | Solar Panel Mesh Clips | Material: | Aluminum ,stainless Steel |
|---|---|---|---|
| J Hook: | 2.4mmx95mm | Washer: | 28x32mm |
| Certifacate: | ISO9001-2015 | Package: | Plastic Bag+carton |
| Sample: | Available | Manufacturer: | Yes |
| High Light: | anti bird solar panel clips,iso 9001 solar panel clips,anti bird solar panel mesh clips |
||
Product Name:Solar Panel mesh clip
Size :j hook are 2.4mm wire diameter and 95mm length
washer are retangle style 32x29mm
Material :j hook is aluminum material or stainless steel ,and it must be soft easy to bend
washer is alloy aluminum material ,it must be hard not esry to bend
Packing :usually it is 500/1000 pcs in one platic and then in carton
Service:we can supply door to door service

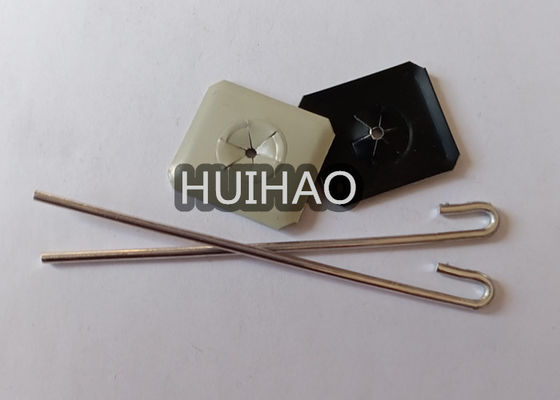

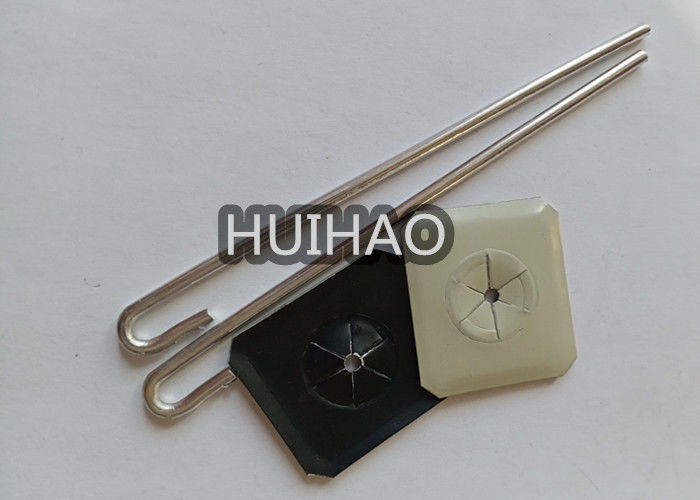

Solar Panel Mesh Clip Pic :
 |
Solar clips are used to secure wire mesh to solar panels. The number of clips needed will depend on the number of solar panels. The clip is designed to protect the integrity of expensive solar arrays. The clips don’t pierce the solar panels and will firmly hold wire mesh screen to the module assembly preventing squirrels and rodents from damaging the interconnection wires and birds from building nests under the solar panel. The clips can be ordered separately, not necessary to bound with the mesh together. |
| Material |
aluminum and aluminum alloy |
Stainless steel |
| J hook size in common: | 2.5mmx95mm | 2.5mmx95mm |
| Surface treatment | phosphating | Polish |
| Solar panel clips including | J hook nails and self locking washers | |
| Self locking washer size: | 29mmx31mm, 30mmx30mm, 30mmx60mm | |
| Calculating the necessary number of clips: Use 2 clips for the short side of every exposed edge of a panel and 3 clips for the long side of every exposed edge of a panel. | ||
Slide the speed washer onto the shaft of the clip assembly until snug. Tighten speed washer to panel edge
to immobilize the mesh. Cut of the clip assembly rod flush with the exterior of the speed washer by cutter.
features of Solar Panel Bird Deterrent Aluminum J Hook Clips |
|
· No need to drill or damage the panels · It can easily be trimmed or bent after assembly · Install and remove quickly and easily |
| Packing of Solar Panel Mesh Clip | |
|

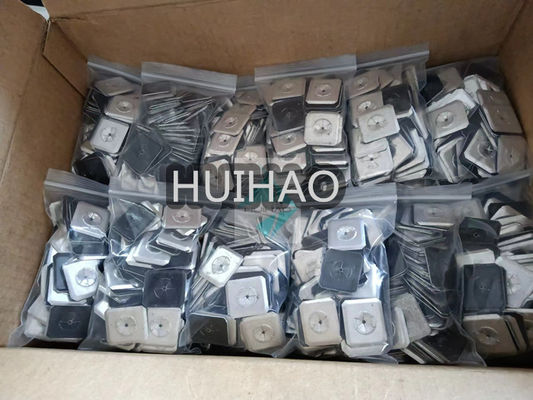

Self Locking Washer Package
1.100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton Carton size: 41 cm x 28 cm x17 cm |

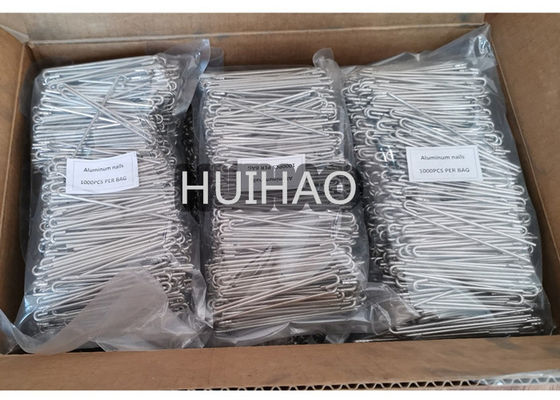

Solar Panel Mesh Clip Package
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton 3.1000pcs per pp bag, 8 bags per carton Carton size: 41 cm x 28 cm x17 cm |
