Product Details:
|
| Name: | Insulation Lacing Anchors For Thermal Insulation Blankets | Application: | Insulation Covers, Insulation Blankets |
|---|---|---|---|
| Material: | Stainless Steel | Head Type: | Round Or Rectangle |
| Head Size: | 22mm, 30mm, 20mmx25mm | Pin Diameter: | 12ga Or 14ga Or As Standard |
| Length: | 2-1/2" Or 4-1/2" Or As Standard | Customization: | Supported |
| High Light: | lacing anchor,stainless steel lacing anchor,insulation lacing anchor |
||

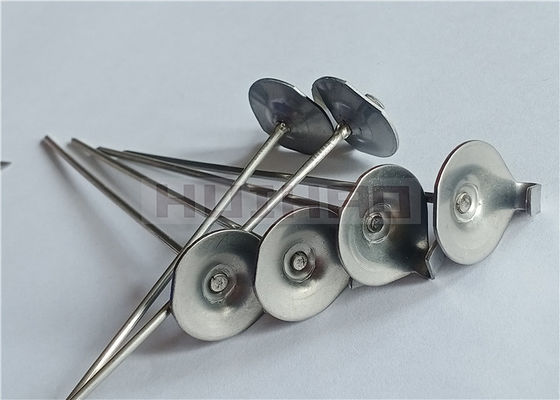

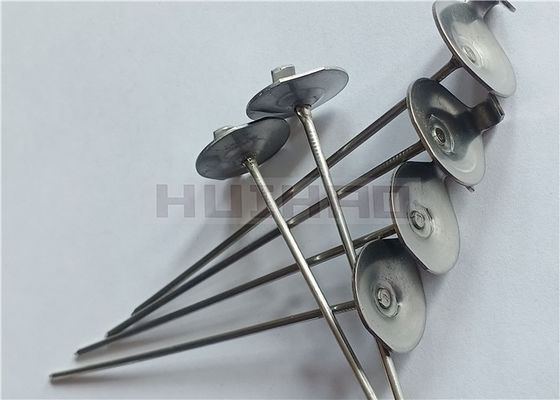

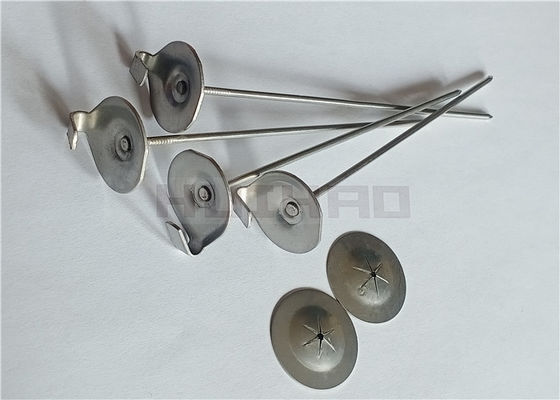

The 304 Stainless steel lacing anchor is a fabricated metal anchor consisting of a nail and
round base hook, the 304 stainless steel is the most popular material for manufacturing the
lacing anchors.
They are stamped with NO AB on round base head. This means NO asbestos. Typical
application is for fabrication of reusable & removable blankets or insulation covers.
After the lacing anchors is pushed through the insulation blanket, lacing two sides of the
finished insulation blankets so that they are fixed together.
| Origin | Hebei, China |
| Brand | HUIHAO CUSTOM |
| Name | Insulation Lacing Anchors For Thermal Insulation Blankets |
| Material | stainless steel |
| Head Type | round or rectangle |
| Head Size | 22mm, 30mm, 20x25mm |
| Head Thickness | 1mm |
| Hook Size | 5mmx11mm or 5mmx15mm |
| Pin Diameter | 2mm, 2.2mm, 2.7mm |
| Pin Length | 63.5mm, 114mm |
| Self-locking Washer Size | 25mm, 30mm, 38mm |
| Self-locking Washer Thickness | 0.4mm |
| Self-locking Washer Material | stainless steel |
 |
|
|
|
|
Name: Lacing Washers Material: Stainless Steel Diameter: 25mm |
Name: Self Locking Washers Material: Stainless Steel Size: 25mm |
|
|
|
Name: Lacing Anchors Material: Stainless Steel Thickness: 1.0mm Size: 22mm |
Name: Lacing Hooks Material: Stainless Steel Thickness: 1.0mm Size: 22mm |
|
|
|
Name: Lacing O Rings Material: stainless steel 304 |
Name: Lacing D Rings Material: stainless steel Size: 25x30mm Wire Diameter: 3mm |
Application Of The Stainless Steel Insulation Lacing Anchors:
1. Prepare insulation blanket
2. Press lacing anchor through blanket
3. Secure lacing anchor with self locking washer and bend the spindle
4. Apply insulation blanket
5. Secure blanket by lacing through hooks with lacing wire
| Product | Size(mm) | Quantity | Caton(cm) | Weight |
| Lacing Anchors | 12Gauge*2.5" | 1000Pcs | 41x28x18 | 8.6kgs |
| Lacing Anchors | 12Gauge*4.5" | 1000Pcs | 41x28x18 | 9.9kgs |
| Lacing Anchors | 14Gauge*2.5" | 1000Pcs | 41x28x18 | 10kgs |
| Lacing Anchors | 14Gauge*4.5" | 1000Pcs | 41x28x18 | 12.3kgs |
|
||||
