Stainless Steel Lacing Anchors For Fabricating Removable Insulation Covers

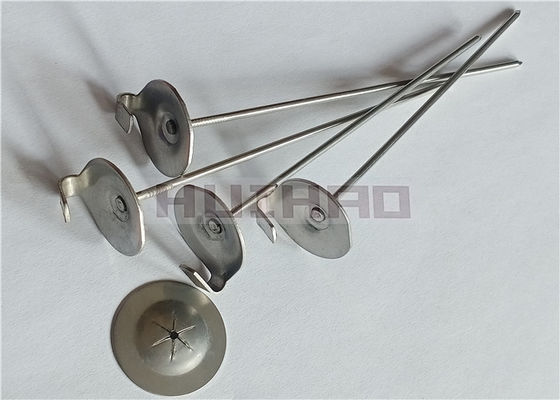

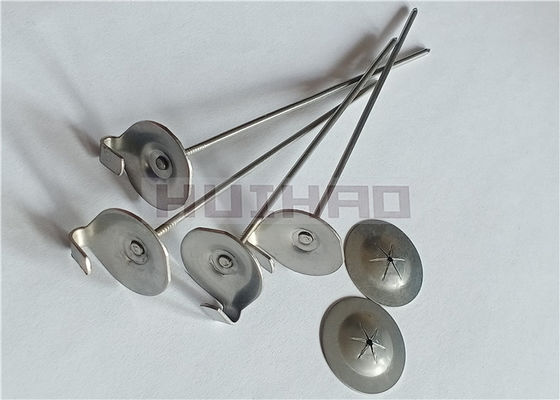

Specifications Of The Stainless Steel Lacing Anchors - Round Head Type:

Stainless steel lacing anchors are used in the fabrication of insulation blankets or removable

covers/pads, it's excellent for high temperature in both exterior and interior applications.

Origin	Hebei, China
Brand	HUIHAO CUSTOM
Name	Stainless Steel Round Head Lacing Anchors
Material	stainless steel
Head Type	round or rectangle
Head Size	22mm, 30mm,
Head Thickness	1mm, 1.3mm
Hook Size	5mmx11mm or 5mmx15mm
Pin Diameter	2mm, 2.2mm, 2.7mm etc.
Pin Length	63.5mm, 114mm etc.
Self-locking Washer Size	25mm, 30mm, 38mm etc.
Self-locking Washer Thickness	0.4-0.5mm etc.
Self-locking Washer Material	stainless steel
1. The round head type stainless steel lacing anchor is a fabricated metal anchor consisting of a nail and round base hook. 2. The 304 stainless steel is the most popular material for manufacturing the lacing anchors. 3. The stainless steel lacing anchors are stamped with NO AB on round base head, which means NO asbestos. 4. Typical application is for fabrication of reusable& removable blankets or insulation covers. 5. After the lacing anchors is pushed through the insulation blanket, lacing two sides of the finished insulation blankets so that they are fixed together.

Specifications Of The Stainless Steel Lacing Anchors - Square Head Type:

	Nail Diameter Nail Length Head Wide Head Length 2.0mm 63.5mm 11mm 25mm 2.0mm 114mm 11mm 25mm 2.7mm 63.5mm 11mm 25mm 2.7mm 114mm 11mm 25mm
1. stainless steel is a popular material while this square head lacing anchors is also made in mild steel. 2. stamped "no ab" to denote 'no asbestos'. 3. the tabbed head is about 1" (25mm)across, and 7/16" (11mm) wide. 4. The nail can be 12 gauge (2.7mm) or 14 gauge (2.0mm) in pin diameter. 5. 2-1/2" (63mm )& 4-1/2" (114mm) are standard pin length 6. Typical application is for the fabrication of lacing blankets or removable covers. 7. This square head lacing anchor is somewhat more economical than the standard lacing anchor and also serves to eliminate weight in the overall removable cover or blanket.

Application Of The Stainless Steel Lacing Anchors:

1. Prepare insulation blanket 2. Press lacing anchor through blanket 3. Secure lacing anchor with self locking washer and bend the spindle 4. Apply insulation blanket 5. Secure blanket by lacing through hooks with lacing wire

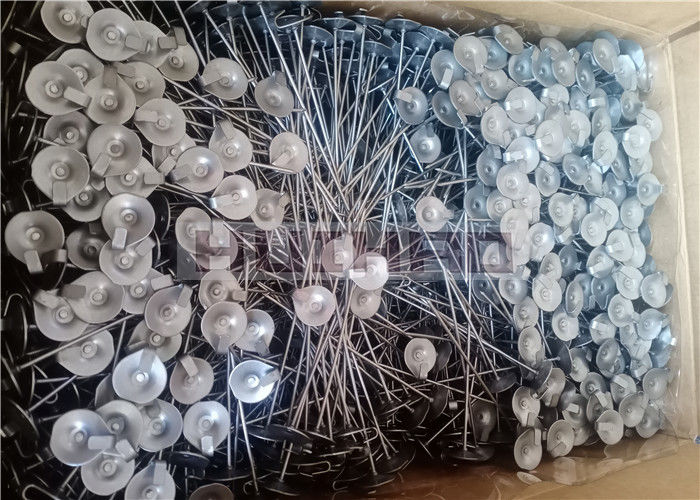

Package Of Stainless Steel Insulation Lacing Anchors:

Product	Size(mm)	Quantity	Caton(cm)	Weight
Lacing Anchors	12Gauge*2.5"	1000Pcs	26*26*18	8.6kgs
Lacing Anchors	12Gauge*4.5"	1000Pcs	26*26*25	9.9kgs
Lacing Anchors	14Gauge*2.5"	1000Pcs	26*26*18	10kgs
Lacing Anchors	14Gauge*4.5"	1000Pcs	26*26*25	12.3kgs

Certificate Of Huihao Hardware Mesh Product Limited:

1. Are you a factory or a trader?
We have our own factory and international trading company
2. Do you support product customization?
Yes, the material, the diameter and the length all could be customized.
3. How do you control and ensure product quality?
A: Confirm with you every details before quoting.

B: After you order, we will reconfirm all the details again.
C: We strictly implement the "IATF 16949 Quality Management System" standard in production.

D: Send you videos and pictures during the production and shipment process.
4. How can I get samples?
A: Standard products: We provide free samples under 5 dollars.
B: Custom products: We charge 1-3 times the unit price (based on product specifications)

C: Shipping methods are DHL, FedEX, TNT, UPS, EMS or others.

D: You need to pay for shipping, samples will be sent as soon as payment is received.
5. What is your preferred payment item?
1) Samples are paid via paypal and T/T is 100% paid.
2) Bulk orders: T/T 30% prepaid, the balance should be paid before shipment.
