Product Details:
|

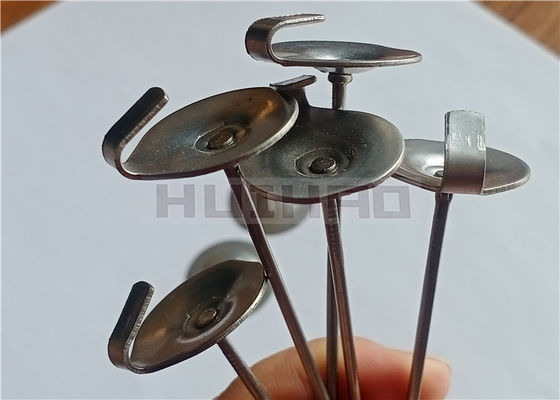

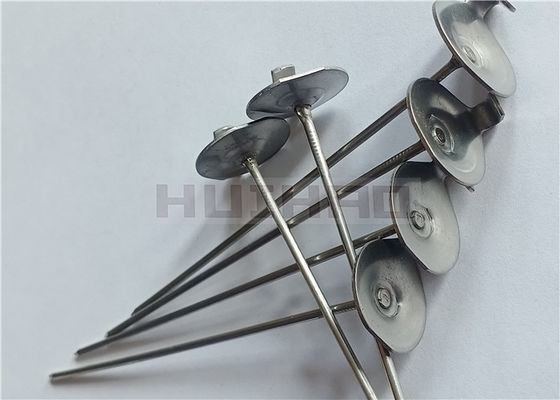

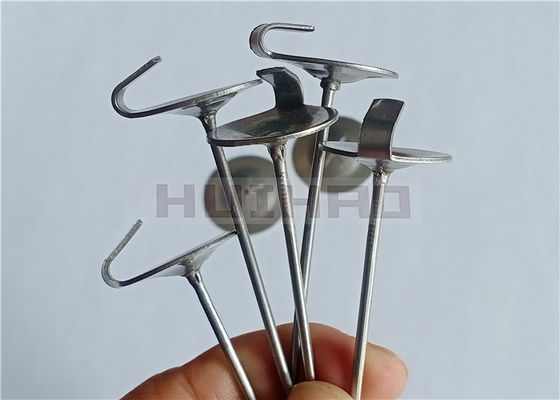

| Name: | Stainless Steel Lacing Anchors For Removable Insulation Pads | Application: | Insulation Covers, Insulation Blankets |
|---|---|---|---|
| Material: | Stainless Steel | Head Type: | Round Or Rectangle |
| Head Size: | 22mm, 30mm, 20mmx25mm | Pin Diameter: | 12ga Or 14ga Or As Standard |
| Length: | 2-1/2" Or 4-1/2" Or As Standard | Customization: | Supported |
| High Light: | lacing anchor,stainless steel lacing anchor,insulation lacing anchor |
||
Lacing Anchors are used in the fabrication of insulation blankets or removable covers/pads.
The nail is pressed through the insulation material, so the hook portion sits on the top edge
and the nail is secured on the opposite side of the insulation with a washer.
The two sides of the blanket can then be “laced” together by the hooks with tie wire.
Material: stainless steel
Head Type: round or slot
Head Size: 22mm(round type), 30mm(round type), 25x11mm(slot type)
Head Thickness:1mm
Head Type: with one hole or two holes / one side is stamped "A""B"
Hook Size: 5x11mm
Pin Diameter: 2mm, 2.2mm, 2.7mm
Pin Length: 63.5mm, 114mm
Usage: For fixing the insulation blankets or removable covers/pads
|
Type 1 Round head stainless steel lacing anchor Head diameter: 22mm Hook size: 11x5mm Pin diameter: 12 GA,14GA,3mm Pin length: 38mm-300mm |
 |
|
Type 2 Rectangle head stainless steel lacing anchor Head sizer: 25x11mm Hook size: 11x5mm Pin diameter: 12 GA,14GA,3mm Pin length: 38mm-300mm |
|
Application Of The Stainless Steel Lacing Anchors:
1. Prepare insulation blanket
2. Press lacing anchor through blanket
3. Secure lacing anchor with self locking washer and bend the spindle
4. Apply insulation blanket
5. Secure blanket by lacing through hooks with lacing wire
|
Product |
Size(mm) |
Quantity |
Caton(cm) |
Weight |
|
Lacing Anchors |
12Gauge*2.5" |
1000Pcs |
41x28x18 |
8.6kgs |
|
Lacing Anchors |
12Gauge*4.5" |
1000Pcs |
41x28x18 |
9.9kgs |
|
Lacing Anchors |
14Gauge*2.5" |
1000Pcs |
41x28x18 |
10kgs |
|
Lacing Anchors |
14Gauge*4.5" |
1000Pcs |
41x28x18 |
12.3kgs |
|
||||
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported.
4. Can you accept small orders?
Yes, for common material and size, we accept small orders.
5. How do you control and ensure product quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
6. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
