Product Details:
|

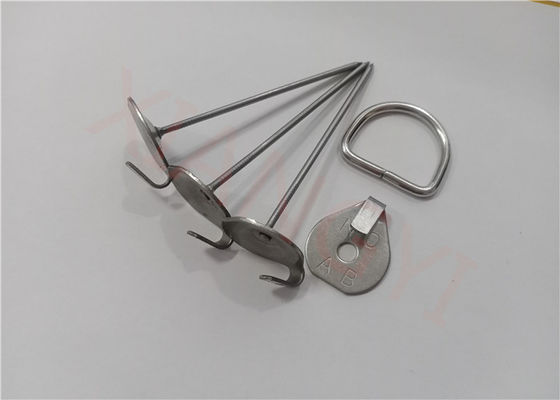

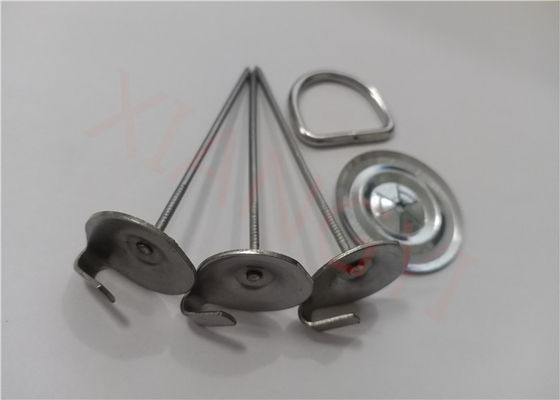

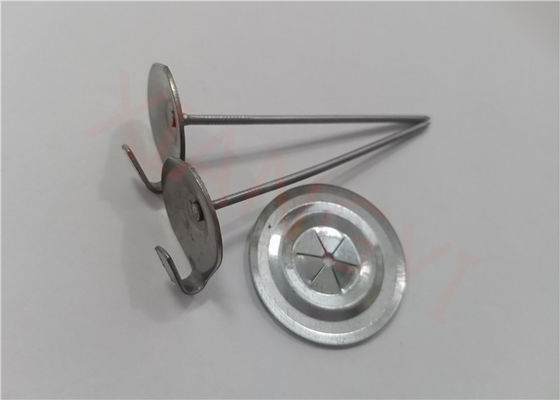

| Name: | Stainless Steel Lacing Anchors For Fastening Lagging To Exhaust Systems | Application: | Insulation Covers, Insulation Blankets |
|---|---|---|---|
| Material: | Stainless Steel | Head Type: | Round Or Rectangle |
| Head Size: | 22mm, 30mm, 20mmx25mm | Pin Diameter: | 12ga Or 14ga Or As Standard |
| Length: | 2-1/2" Or 4-1/2" Or As Standard | Customization: | Supported |
| High Light: | lacing anchor,stainless steel lacing anchor,insulation lacing anchor |
||
* Stainless Steel is a popular material while this type lacing anchors is also made in mild steel
* Stamped "no ab" to denote 'no asbestos'
* Used as the means of fastening lagging to exhaust systems (tie wire as the lacing material).
* Lacing anchors can be used to add additional support to existing lagging, or used with other
raw insulation material
| Anchor type | Head size | Hook size | Pin diameter | Pin length | Material |
| min round head | 22 mm | 5x11mm | 2mm, 2.7mm | 38mm - 203mm | SS, MS |
| round head | 30 mm | 5x15mm | 2mm, 2.7mm | 100mm - 300mm | SS, MS |
| oblong head | 20 x 25mm | 5x11mm | 2mm, 2.7mm | 38mm - 203mm | SS, MS |
| Lacing rings | material: stainless steel 304 / 316 |
| type: weld type or unweld type all avalible | |
| size: 3mm x 30mm | |
| Self locking washers | material: SS, MS. G.S |
| Types: round type and square type | |
| size in standard: 25mm, 30mm, 38mm | |
| Dome cap washers | material: SS, MS, G.S |
| Standard size: 22mm, 27mm, 30mm, 40mm |
 |
Item: stainless steel lacing anchors
|
|||||||||||||||
|
Item: self locking washers Size: 25mm 30mm 38mm For: 12G 14G pins |
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported.
4. Can you accept small orders?
Yes, for common material and size, we accept small orders.
5. How do you control and ensure product quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
6. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
