Product Details:
|
| Name: | Stainless Steel Lacing Hook Anchors | Head: | 22mm 30mm 20x25mm |
|---|---|---|---|
| Material: | Stainless Steel, | Head Thickness: | 1mm |
| Application: | To Fix Insulation Blanket | Pin Diameter: | 12ga Or 14ga Or As Standard |
| Customization: | Supported | Length: | 2-1/2" Or 4-1/2" Or As Standard |
| High Light: | lacing anchor,stainless steel lacing anchor,insulation lacing anchor |
||

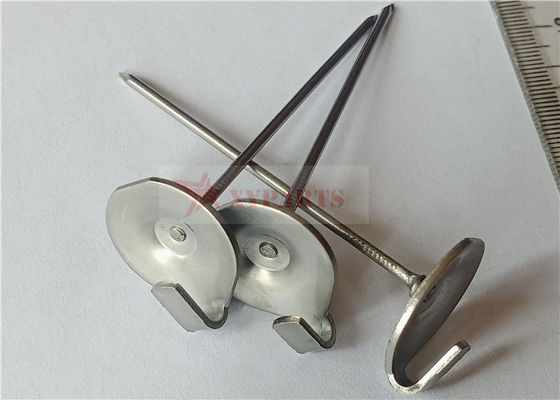

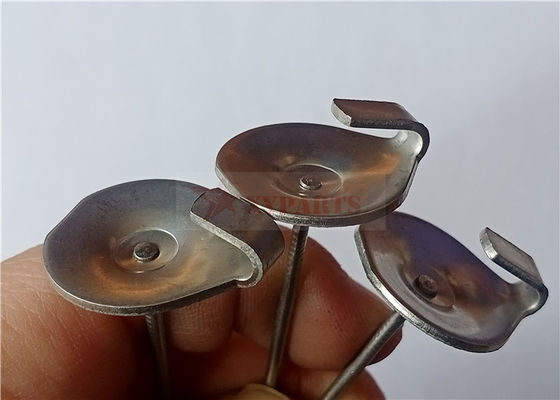

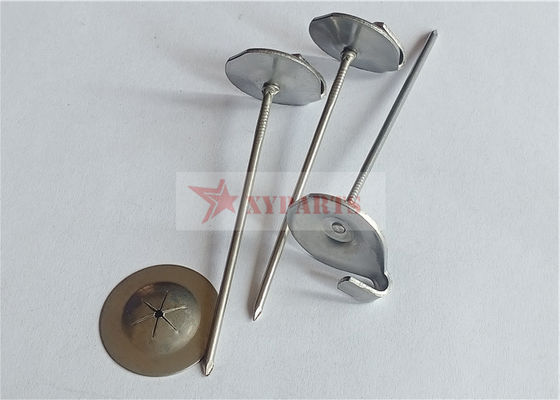

14 Gauge Stainless Steel Lacing Hook Anchors are used for such thermal insulation products,
such as expansion joints and removable/reusable thermal insulation blankets.
|
Item: 14 Gauge Stainless Steel Lacing Hook Anchors For The Fabrication Of Thermal Insulation Products Brand: HUIHAO CUSTOM Material: Stainless Steel Head Thickness: 1.0mm Head Diameter: 22mm Hook Size: 5x11mm Hook Thickness: 1.0mm Pin Diameter: 2.0mm (other diamter also available) Pin Length: 63.5mm (other length also available) Self Locking Washer Material: Stainless Steel Self Locking Washer Size: 25mm
|
|
 |
|
1. Stainless steel is a popular material while this lacing hook anchors is also made in mild steel.
2. Stamped "no ab" to denote 'no asbestos'.
3. The tabbed head is about 7/8" (22mm) diameter or 1-1/5" (30mm) diameter.
4. The nail can be 12 gauge (2.7mm) or 14 gauge (2.0mm) or others in pin diameter.
5. 2-1/2" (63mm )& 4-1/2" (114mm) are standard pin length
6. Typical application is for the fabrication of removable insulation blankets or covers of pads.
| Origin | Hebei, China |
| Brand | HUIHAO CUSTOM |
| Name | Stainless Steel Lacing Hook Anchors With Self-locking Washers |
| Material | stainless steel |
| Head | one side is stamped with "A" "B" |
| Head Type | round or rectangle |
| Head Size | 22mm, 30mm, |
| Head Thickness | 1mm |
| Hook Size | 5mmx11mm or 5mmx15mm |
| Pin Diameter | 2mm, 2.7mm etc. |
| Pin Length | 63.5mm, 114mm etc. |
| Self-locking Washer Size | 25mm etc. |
| Self-locking Washer Thickness | 0.4mm etc. |
| Self-locking Washer Material | stainless steel |
|
|
|
Item: Stainless Steel Lacing Washers Material: Stainless Steel Diameter: 1" / 25mm Thickness: 1mm Type: With two 3/16" / 5mm hole in the center |
|
Item: Stainless Steel Lacing Hook Washers Material: Stainless Steel Diameter: 7/8" / 22mm Thickness: 1mm Type: With one 3/16" / 5mm hole in the center Hook Size: 5x11mm |
|
Item: Stainless Steel Lacing Anchor Washers Material: Stainless Steel Diameter: 7/8" / 22mm Thickness: 1mm Type: With two 3/16" / 5mm hole in the center Hook Size: 5x11mm |
|
Item: Stainless Steel Lacing Rings Material: Stainless Steel Ring Diameter: 30mm Wire Diameter: 3mm |
|
Item: Stainless Steel Lacing Rings Material: Stainless Steel Ring Diameter: 25x30mm Wire Diameter: 1mm |
|
stainless steel lacing anchors are widely used for fixing: |
|
|
|
|
|
250pcs/500pcs/1000pcs per carton according to the insulation pin size,
48 cartons per pallet.
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported.
4. Can you accept small orders?
Yes, for common material and size, we accept small orders.
5. How do you control and ensure product quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
6. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
