Product Details:
|
| Product Name: | Stainless Steel Solar Panel Animal Guard Fastener Clips | Combine: | J Hook + Self Locking Washer |
|---|---|---|---|
| Application: | To Secure Bird Proofing Wire Mesh | Package: | Pp Bag + Paper Carton |
| J Hook Material: | Stainless Steel | J Hook Size: | 2.0x100mm |
| Self Locking Washer Material: | Stainless Steel | Self Locking Washer Size: | 30mm |
| Self Locking Washer Surface: | Double Side Black Coating | Sample: | Sample Is Free |
| High Light: | solar panel clips for birds,solar panel bird deterrent clips,solar panel wire mesh clips |
||
Stainless Steel Solar Panel Animal Guard Fastener Clips are widely used to fasten the
proofing welded wire mesh to solar panel systems to prevent the birds or pigeons or
other animals damaging the solar panel systems. The Stainless Steel Solar Panel Animal

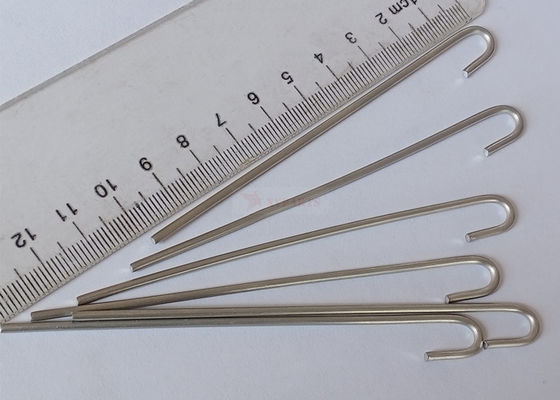

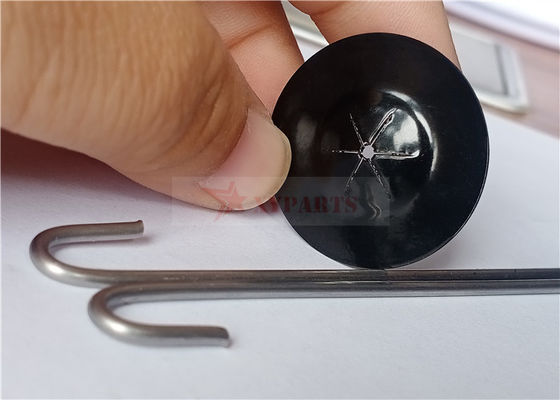

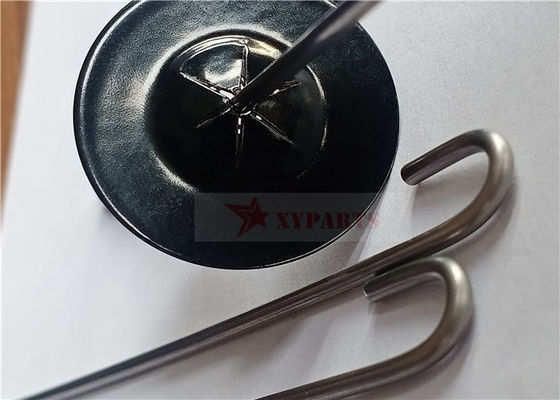

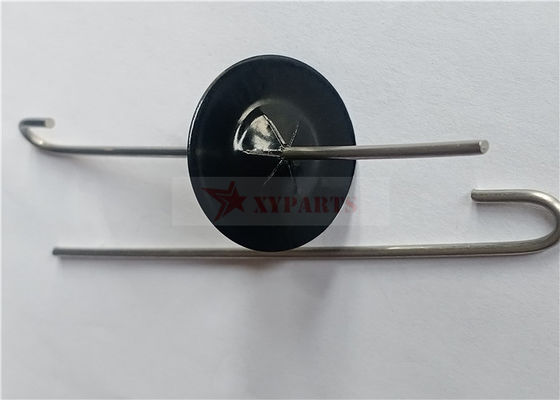

Guard Fastener Clips include two parts: a J hook and a self locking washer:
| Name | Stainless Steel Solar Panel Animal Guard Fastener Clips |
| Contain | J hook and self locking washers |
| J hook material | Stainless Steel |
| J hook standard size | 2.0x100mm |
| Washer material | Stainless Steel |
| Washer standard size | 30mm |
| Finsh for washer | UV coating black color |
| Noted |
• Constructed from stainless steel 304 material for maximum endurance to outdoor elements. • 304 Stainless Steel J-Hook easily attaches to the solar panel frames. • 304 Stainless Steel Washers will firmly hold wire mesh screen to the module assembly preventing squirrels and rodents from damaging the interconnection wires and birds from building nests under the solar panel. • The Stainless Steel J-Hook can easily be trimmed or bent after assembly. • Stainless Steel Washers are offered in both natural and black
|
 |
|
|
1) Features and benefits >Clips will not scratch, pierce or impact integrity of solar panels. 2) Calculating the number of clips needed
> The QTY needed for one solar panel: A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel one should use 3 fastener clips on each long edge and 2 on each short edge. > The QTY needed for one roll: usually the length of solar panel roll is 30m, each roll is allocated with 60 fastener clips. > The QTY needed for a standard 3kW system (2 rows of 6 panels each - 12 panels total installed in a portrait orientation) : 35 J hooks fasteners with self locking washers.
|
|
|
| J hook standard package |
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton 3.1000pcs per pp bag, 8 bags per carton |
| self locking washer |
1. 100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton |
|
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
6. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
