Product Details:
|
| Product Name: | Stainless Steel Solar Panel Mesh Clips | Combine: | J Hook + Self Locking Washer |
|---|---|---|---|
| Application: | To Secure Bird Proofing Wire Mesh | Package: | Pp Bag + Paper Carton |
| J Hook Material: | Stainless Steel | J Hook Size: | 2.0x100mm |
| Self Locking Washer Material: | Stainless Steel | Self Locking Washer Size: | 30mm |
| Self Locking Washer Surface: | Double Side Black Coating | Sample: | Sample Is Free |
| High Light: | solar panel clips for birds,solar panel bird deterrent clips,solar panel wire mesh clips |
||
Stainless steel solar panel mesh clips are widely used for pest control service.
It could firmly fasten the bird proofing wire mesh to solar panels without any damage for
the solar panel kits.

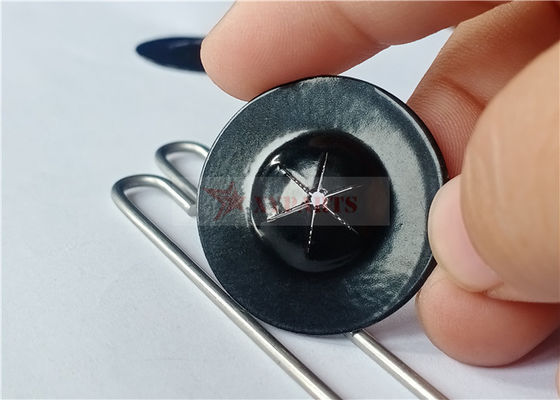

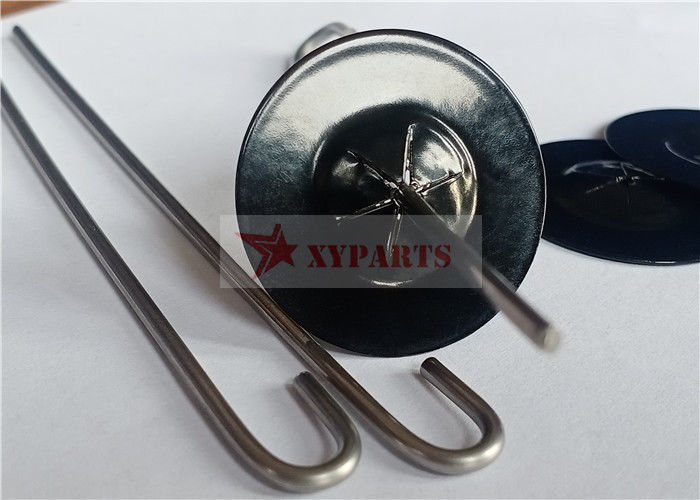

Solar panel mesh clips are combined of a stainless steel J hook and a self locking washer
with black uv surface surface finish.
1. For the J hooks, the material is anneaded stainless steel wire, it is easy to be bent over,
it is very improtant for fixing welded wire mesh.

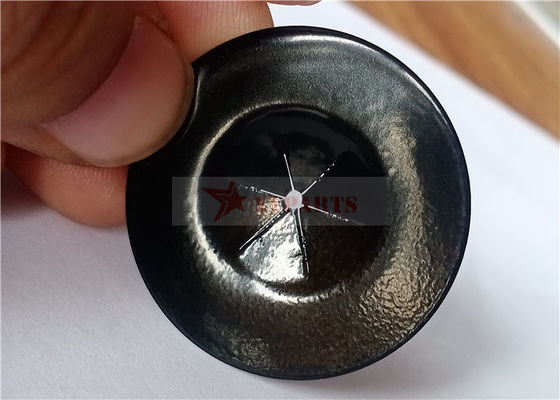

2. For the self locking washers, the material is hardness stainless steel material,
it could lock the j hooks firmly and nondeformable.
3. For the self locking washers, we must consider left time, so anti-uv black coating for the
stainless steel self locking washers could make it more durable.
4. Stainless steel solar panel mesh clips will not drill or damage the solar panels.
5. The installation and remove of the stainless steel solar panel mesh clips are quickly and
easily.
| Name | Stainless Steel Solar Panel Mesh Clips For Pest Control |
| Contain | J hook and self locking washers |
| J hook material | Stainless Steel |
| J hook size | 2.0x100mm |
| J hook surface finish | polish |
| Washer material | Stainless Steel |
| Washer size | 30mm |
| Washer surface finish | double side black coating surface finish for UV resistant |
| Noted |
• Constructed from stainless steel 304 material for maximum endurance to outdoor elements. • 304 Stainless Steel J-Hook easily attaches to the solar panel frames. • 304 Stainless Steel J-Hook can easily be trimmed or bent after assembly. • 304 Stainless Steel Washers will firmly hold the bird proofing wire mesh to solar panels to preventing birds or pigeons or other animals from damaging the interconnection wires. • 304 Stainless Steel Washers are offered in both natural and black coated versions. |
 |
|
|
> The QTY needed for one solar panel: A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel one should use 3 clips on each long edge and 2 on each short edge. > The QTY needed for one roll: usually the length of solar panel roll is 30m, each roll is allocated with 60 clips. > The QTY needed for a standard 3kW system (2 rows of 6 panels each - 12 panels total installed in a portrait orientation) : 35 J hooks with self locking washers.
|
|
|
J hook standard package |
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton 3.1000pcs per pp bag, 8 bags per carton |
|
self locking washer |
1. 100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton |
|
|
