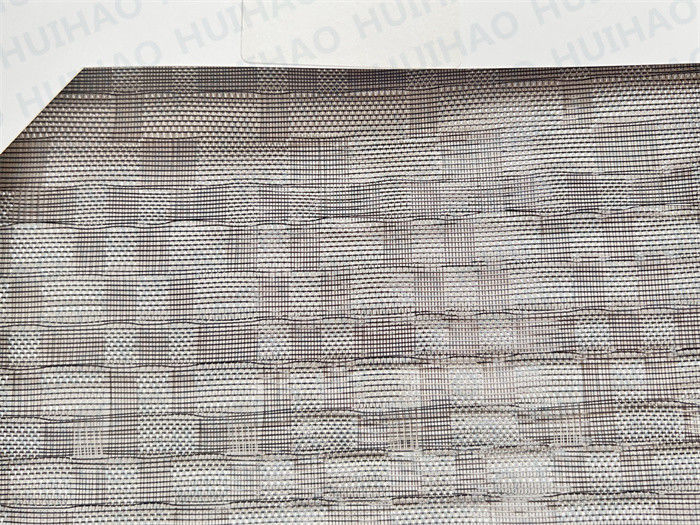

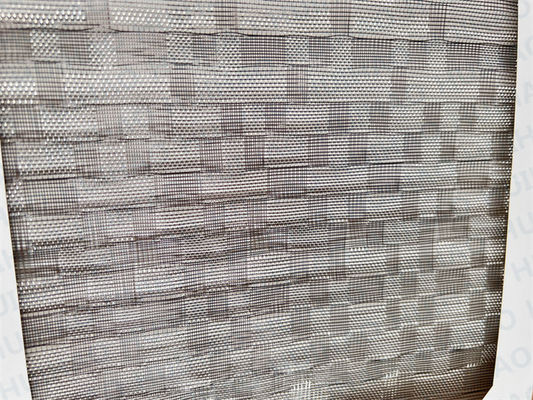

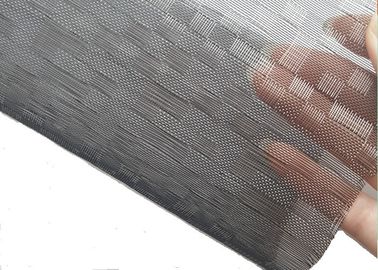

Glass Interlayer Anti Alkali Woven Metal Fabric 2.5m Width

woven mesh fabric ODM, 0.28mm metal mesh, fabricglass with fabric interlayer anti Alkali - silver or black color wires  material

Glass interlayer anti alkali woven metal fabric also named Laminated glass metal mesh, laminated glass wire mesh, wire mesh laminated glass or laminated glass with fabric, is kind of wired glass. That is, the woven metal fabric or architectural wire mesh is embedded inside of the unique glass. Traditionally, when the glass is in semi-molten state, compressing the glass and woven metal fabric mesh through metal rollers and the laminated glass wire mesh will be formed. While, there also exists another way of making laminated glass metal mesh. Embedding the metal mesh into the glass panel, then sticking the glass panel by using the adhesive material and the laminated glass metal mesh will be formed. Generally, the adhesive material is PVB (polyvinyl butyl) or EVA (ethylene vinyl acetate) which has excellent adhesive adhesive. Combined with glass panel's bright transparency and metal mesh's refined structure, glass laminated woven metal fabric brings elegant and noble atmosphere for modern constructions. And presently, it is widely used in western countries.

Specification details of glass interlayer anti alkali woven metal fabric

1. Glass type: common laminated glass, tempered laminated glass, coated laminated glass, low-e laminated glass, silkscreen laminated glass, bulletproof laminated glass, fireproof laminated glass, etc.

2. Whole thickness: 3 + 0.38 + 3 mm, 3 + 0.76 + 3 mm, 4 + 0.38 + 4 mm, 4 + 0.76 + 4 mm, 5 + 0.38 + 5 mm, 5 + 0.76 + 5 mm, 6 + 0.38 + 6 mm, 6 + 0.76 + 6 mm, 8 + 0.76 + 8 mm, 10 + 0.76 + 10 mm, etc.

3. Whole size: 300 × 300 mm, 1220 × 1830 mm, 1500 × 2000 mm, 1530 × 2520 mm, 1830×2440 mm, 2000 × 2500 mm, 2140 × 3300 mm, 2250 × 3600 mm, 2800 × 7000 mm, 3000 × 8000 mm, also can be customized.

Applications of glass interlayer anti alkali woven metal fabric

• Function: table top, cabinet top, furniture decoration, window screen, door screen, sloped or overhead glazing, cladding, ceiling, sun screening, translucent canopies, space divider, curtain wall, etc.
• Application area: residential homes, restaurant, national landmark buildings, opera theater, music hall, museums, prisons, office building, government buildings, jewelry stores, banks, airports, schools, hospitals, hotels, high-end place, etc.

Features of glass interlayer anti alkali woven metal fabric

• Good safety performance. Compared with other glass, our laminated wire mesh has the performance of anti-theft, bullet-proof, anti-explosion and shatter-proof. Even if the glass is broken, the fragments will be still connected by the anti alkali woven metal fabric and won’t fall down.
• UV resistance. It intercepts 99% or more of incoming ultraviolet rays, protecting furniture and furnishings near windows from discoloration caused by exposure to direct sunlight.
• Fire resistance. Laminated glass anti alkali woven metal fabric is an ideal fire-proof material classed to grade A. Even wired glass broken in the fire, the fragments will still connect with each other by the woven metal fabric, and not fall down, which prevent fire spreading.
• Energy saving. Laminated glass wire mesh can reduce the sun radiation, protect the energy from wasting. It can also save the electricity consumption of air conditioning
• Sound insulation. the EVA film can produce the buffer action to the ultrasonic vibration of sound, reach the sound- proof result.
• Artistic and practical function. Laminated glass wire mesh can increase the aesthetic appearance of construction.
• More choices. We can provide laminated glass with different woven metal fabric. At the same time, we can also provide anti alkali woven metal fabric for making laminated glass.
