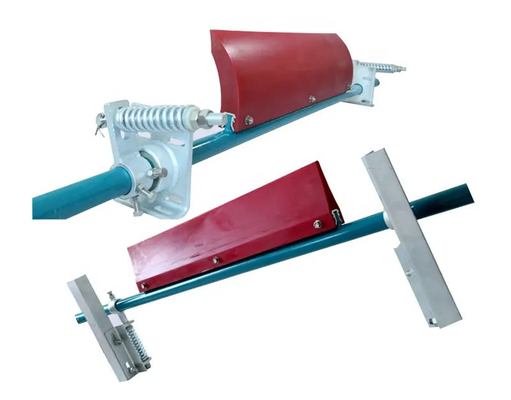

Polyurethane Scraper Blade Abrasive Belt Cleaner With High Wear Resistance

Polyurethane Scraper Blade Abrasive Belt Cleaner With High Wear Resistance
Polyurethane Scraper Blade Abrasive Belt Cleaner With High Wear Resistance Polyurethane Scraper Blade Abrasive Belt Cleaner With High Wear Resistance Polyurethane Scraper Blade Abrasive Belt Cleaner With High Wear Resistance

Large Image :  Polyurethane Scraper Blade Abrasive Belt Cleaner With High Wear Resistance

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAO KASITE
Certification: ISO9001-2015
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Packaging Details: polyurethane scraper blade abrasive belt cleaner with high wear resistance Packing: Polywood case or pallet.
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 pcs per month

Polyurethane Scraper Blade Abrasive Belt Cleaner With High Wear Resistance

Description
Name: Polyurethane Martin Belt Scraper Material: Polyurethane
Usage: Cleaning Belt In The Drive Pulley Weight: 39.4kgs
Applications: Manufacturing Plant, Construction Works , Energy Customized: Support
High Light:

polyurethane martin belt scraper

,

high wear resistance polyurethane scraper

polyurethane scraper blade abrasive belt cleaner with high wear resistance

Types of polyurethane scraper blade abrasive belt cleaner:

1. Primary belt scraper to remove big stuff.
2. Secondary belt scraper to remove sticky fines.
3. V-plough scraper to cleaner inside of belt.
4. H and P alloy belt cleaner
5. Brush belt cleaner
6. Reversing belt cleaner



specification of polyurethane scraper blade abrasive belt cleaner

Product NO

Model

mm Belt Width/mm

L1

L2

H

HPU50

Primary conveyor belt cleaner

500

400

1500

185

HPU65

Primary conveyor belt cleaner

650

500

1650

185

HPU80

Primary conveyor belt cleaner

800

600

1800

185

HPU100

Primary conveyor belt cleaner

1000

800

2000

185

HPU120

Primary conveyor belt cleaner

1200

1000

2200

185

HPU140

Primary conveyor belt cleaner

1400

1200

2400

185

HPU160

Primary conveyor belt cleaner

1600

1400

2600

185

HPU180

Primary conveyor belt cleaner

1800

1600

2800

185

HPU200

Primary conveyor belt cleaner

2000

1800

3000

185

HPU220

Primary conveyor belt cleaner

2200

2000

3200

185



Applications of polyurethane scraper blade abrasive belt cleaner

  • Primary belt cleaners or Pre-Cleaners are an essential part of any conveyor system, which are installed on the head pulley to provide effective cleaning.Wear-resistant polyurethane blade doesn't damage the belt and extend belt life.
  • Self-adjusting spring tensioners make sure consistent pressure and effective cleaning. When the blade wears or the belt jumps,the scraper will follow up automatically to ensure good contact
  • The secondary belt cleaner is installed bottom of the conveyor drum, used together with the primary belt cleaner, which has a self adjusting spring tensioner system to maintain close contact with the belt without damaging the belt and achieve good cleaning effect.
  • Conveyor plow belt cleaner ,the blade is made of polyurethane material,which has good features of anti-abrasion,anti-corrosion,anti-fracture,protect the belt from damage and prolong service life of belt.The belt cleaner designed with self-adjusting spring tensions which make sure consistent pressure and effective cleaning.
  • The H type precleaner is designed to be positioned on the head pulley and to remove the bulk of carryback from the belt. It's efficient precleaner in material handling applications such as coal, iron ore, bauxite and hard rock mining with vulcanized belts.
